ND99S Walk-Behind Electric Roll Lifter for Lithium Battery Electrode Rolls

ND99S Walk-Behind Electric Roll Lifter for Lithium Battery Electrode Rolls

Specifically designed to revolutionize the handling of various material rolls, particularly within the lithium-ion battery manufacturing sector, this walk-behind reel truck effectively solves demanding transportation and loading challenges. It features an innovative dual-mode drive system—switching effortlessly between powerful electric travel for speed and semi-electric for precise manual alignment via a foot pedal—ensuring safe and efficient operation. Equipped with a smooth electric lifting mast and side-shift capability, it enables single-person, push-pull style loading and unloading, significantly boosting productivity on the factory floor. Ideally suited for production and warehousing environments in the lithium battery, film, and paper industries, this versatile tool adapts to various working conditions. A range of specifications and customizable options are available to fit specific roll sizes and operational needs.

Contate-nos
Download

Características

Watch this SINOLIFT roll lifter in action. This walk-behind electric stacker makes material handling easy. One person can move heavy lithium battery rolls safely. It lifts loads up to 1.96 meters high. You can switch between two drive modes. Use the full electric mode for fast travel. Use the semi-electric mode for precise manual adjustments. The smart handle gives you complete control. It features an emergency stop and a side-shift joystick. The strong C-channel steel mast keeps your loads very stable. We can also customize the roll ram to fit your specific sizes. It saves time and boosts your efficiency.

Parâmetros

ModeloND99S1ND9952
Tipo de unidadeHidráulicoHidráulico
Rated Loadkg10001000
Centro de Cargamilímetros650650
Minimum Heightmilímetros650650
Maximum Heightmilímetros19601960
Comprimento totalmilímetros14961496
Largura totalmilímetros780780
Altura totalmilímetros22002200
Cantilever SpecificationmilímetrosØ295*720Ø395*720
Especificação da roda dianteiramilímetrosØ80-70Ø80-70
Rear Wheel SpecificationmilímetrosØ205X75205X75
Motor de elevaçãokWhDC24V/1.2DC24V/1.2
Motor de ConduçãokWhDC24/0.75DC24/0.75
Power Supply SpecificationV/AhDC24/125AHDC24/125AH
Tipo de BateriaLithium Iron Phosphate (LiFePO₄)Lithium Iron Phosphate (LiFePO₄)
Tipo de controle de acionamentoDC Speed ControlDC Speed Control
Nível de ruídoDb≤70≤70
Steering TypeMechanical SteeringMechanical Steering
Braking ModeElectromagnetic BrakeElectromagnetic Brake
Peso líquidokg730740
Velocidade de elevaçãomm/s103103
Side Shift MechanismBall ScrewBall Screw
Side Shift MotorPotênciaDC24V/0.4DC24V/0.4

Detalhes do produto

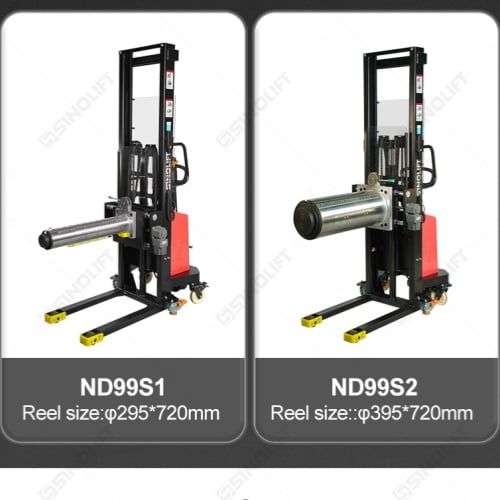

Two Models Available

Two Models Available

We offer two distinct lithium battery roll lifter models to perfectly match your specific handling requirements.

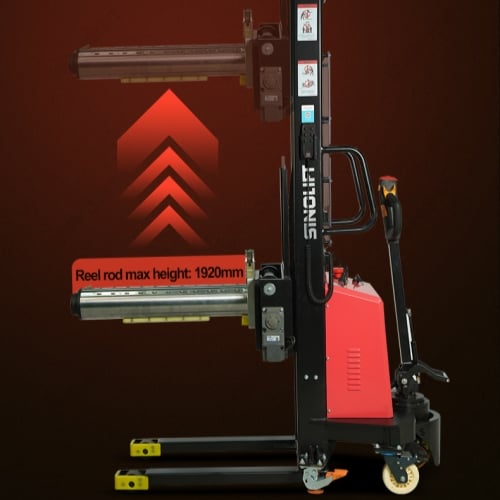

Easy One-Person Operation

Easy One-Person Operation

The intelligent design features an impressive electric lift of up to 1.96m. This push-pull style electric loading and unloading saves valuable time and significantly improves overall work efficiency for a single operator.

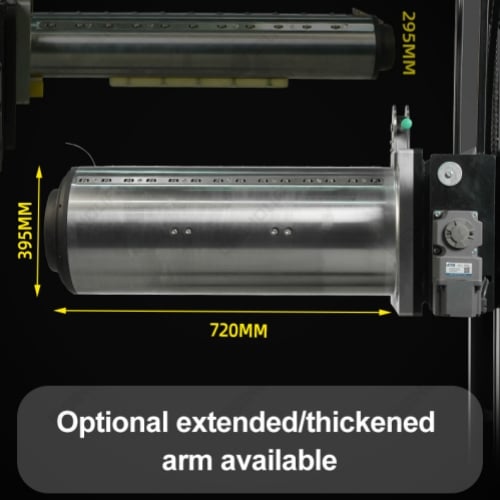

Customizable Arm for Roll Sizes

Customizable Arm for Roll Sizes

The standard single-axis arm length is 720mm, requiring roll lengths to be strictly under 720mm to prevent overloading. We also support customization to safely accommodate various roll sizes based on your needs.

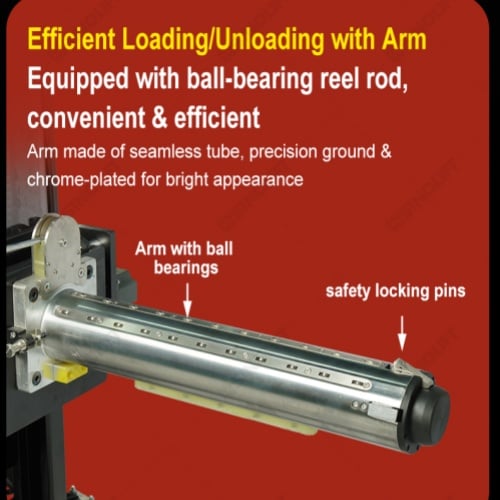

Efficient Loading and Unloading

Efficient Loading and Unloading

Equipped with a high-quality ball-bearing roll ram, this equipment ensures convenient, fast, and highly efficient material handling.

Galeria de mídia

SINOLIFT Electric Roll Lifter inside our manufacturing facility.
New Electric Roll Lifter units ready for delivery in the factory.
New Electric Roll Lifter being assembled on the production line.
New Electric Roll Lifter units ready for delivery in the factory.

Perguntas frequentes

  • Q1: What is the expected lifespan of the lithium battery, and how long does it take to fully charge?

    A1: The high-performance lithium battery is designed to endure thousands of charging cycles, typically offering a reliable lifespan of 3 to 5 years under normal daily factory use. A full charge usually takes about 3 to 4 hours, which allows for quick turnaround times between working shifts without prolonged downtime.

  • Q2: What kind of warranty and after-sales support do you provide for this roll handling equipment?

    A2: We offer a comprehensive one-year warranty that covers major components such as the drive motor, hydraulic system, and the structural chassis. Furthermore, our dedicated technical team provides lifetime online troubleshooting support and ensures readily available replacement parts to keep your operations running smoothly.

  • Q3: Are there any specific floor conditions required to operate this walk-behind roll stacker safely?

    A3: For optimal performance and safety, this equipment is best suited for flat, smooth, and hardened surfaces like epoxy or polished concrete floors commonly found in manufacturing plants. While the heavy-duty polyurethane (PU) wheels provide excellent grip, operating the lifter on steep ramps or highly uneven terrain with heavy loads is strictly not recommended.

  • Q4: How does the customization process work if our roll materials exceed the standard dimensions?

    A4: If your roll materials fall outside our standard specifications, you simply need to provide our engineering team with your specific roll weight, inner core diameter, and overall roll width. We will then engineer a custom ram solution and provide you with detailed technical drawings for your final approval before any production begins.

  • Q5: What daily routine checks should operators perform to maintain the safety and efficiency of the roll lifter?

    A5: Operators should conduct a quick visual inspection of the hydraulic system for any potential leaks and ensure that the lifting mast and side-shift mechanisms move smoothly without unusual noises. It is also absolutely crucial to verify that the emergency stop button, horn, and braking systems are fully responsive before lifting any materials.
