NPHD1500-1 Electric Scissor Automatic Pallet Jack with Optical Sensor
The NPHD1500-1 Electric Scissor Pallet Jack with Optical Auto-Positioning Sensor is designed for precision height control during loading/unloading, ideal for printing factories and repetitive lifting tasks. Its infrared sensor automatically maintains the set working height (up to 1150mm), boosting efficiency while ensuring ergonomic safety. The 21-second fast lifting, integrated side stabilizers, and nylon tires deliver unmatched stability and smooth operation. Perfect for environments demanding consistent height alignment and heavy-load handling.
Características
This real-world demo showcases how our infrared auto-positioning sensor delivers millimeter-perfect height control during operation – no manual adjustments needed. The 21-second rapid lift and rugged 1500kg capacity demonstrate true industrial-grade performance, while the integrated stabilizer system ensures OSHA-compliant safety during high-load operations.
Engineered for demanding environments like printing facilities and warehouses, our scissor-lift pallet truck combines ultra-precise optical positioning with ergonomic load handling to maximize productivity. The maintenance-free nylon rollers provide smooth floor-to-floor transitions, completing this total material handling solution.
Parâmetros
| Modelo | NPHD1500-1 |
| Rated lifting capacity(kg) | 1500 |
| Min. height(mm) | 540/680 |
| Max. height(mm) | 1150 |
| Fork width b(mm) | 85 |
| Fork length L(mm) | 800 |
| Battery Voltage(V)Electricity volume(A/h) | 12/75 |
| Input/output voltage of charger(V) | 220-240/12 |
| Net weight(kg) | 155 |
Detalhes do produto
Electric Power System with Strong Performance
• Powered by a 12V battery, supporting consistent performance • Equipped with a 1.1kW hydraulic pump motor for efficient lifting

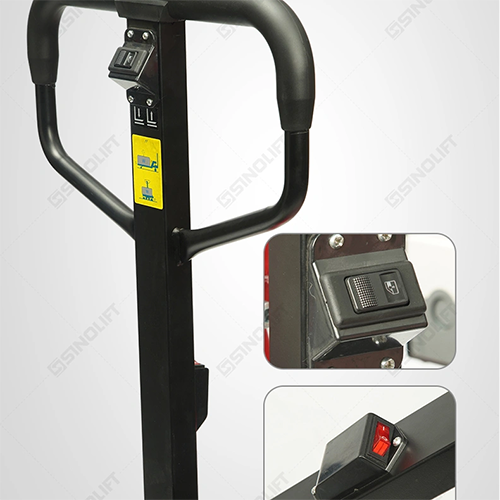

Ergonomic Handle for Comfortable Operation
• Rubber-coated handle provides a soft, anti-slip, and heat-insulating grip • Ergonomically shaped for reduced strain on wrists and hands
Reinforced Thickened Scissor Arms
Built with thickened steel scissor arms for enhanced durability and stability
Auto-Extending Stabilizers for Extra Safety
When fork height drops below 420mm, the support legs and adjustable stabilizers automatically extend to contact the floor
Perguntas frequentes
-
How does the optical auto-positioning sensor work?
The infrared sensor detects the pallet or load height and automatically adjusts the forks to maintain the preset working level. This eliminates manual repositioning, ensuring consistent efficiency during loading/unloading. It’s especially useful for repetitive tasks in printing factories or warehouses. -
What is the maximum lifting height and weight capacity?
This pallet jack lifts up to 1150mm and handles loads up to 1500kg safely. The scissor mechanism ensures stable elevation, while the side stabilizers prevent tipping during operation. It’s ideal for medium-to-heavy loads in industrial settings. -
Are the nylon tires suitable for rough floors?
Yes, the durable nylon tires provide smooth movement on both flat and slightly uneven surfaces. They resist wear and don’t mark floors, making them ideal for indoor facilities like printing plants. For extreme conditions, check compatibility with your floor type. -
Why is this model safer than manual pallet jacks?
Answer: The auto-lock sensor prevents accidental height shifts, while side stabilizers enhance balance during lifts. The ergonomic design reduces operator strain, and the fail-safe controls minimize mishaps. It’s a OSHA-compliant solution for injury-prone tasks
Extras opcionais

Li-on Battery (Lithium Phosphate Battery)
Opt for the Lithium Phosphate Battery (LiFePO₄) to power your electric pallet truck. This advanced battery technology delivers high safety, long cycle life, and stable performance, making it ideal for demanding operations. With fast charging, minimal maintenance, and eco-friendly benefits, it’s a perfect upgrade for multi-shift applications in modern warehouses and logistics.

Load backrests
When goods are stacked high, the load backrest can prevent it from falling, ensuring user and items safety. To protect the operator from falling objects, electric pallet trucks and stackers have an overhead guard. Electric Pallet Truck with load Backrest for using the boxes and taller loads to be moved safely and easily.

With scale (printer
Electric pallet truck equipped with an integrated scale and printer allows operators to weigh loads while moving them and print labels on the spot. Perfect for logistics and warehousing, it enhances efficiency and accuracy in inventory management.

Cold store version
Designed for extreme cold storage environments, this electric pallet truck is equipped with specialized features such as cold store oil, anti-slip platforms, and heated batteries. Built to operate seamlessly in freezing conditions, it ensures reliable performance and durability in harsh environments. With enhanced insulation and robust components, this version guarantees efficiency and safety in demanding cold storage applications.

Smart Charger for Electric Pallet Trucks
This intelligent charger automatically optimizes voltage and current with multi-stage charging technology to maximize battery performance and lifespan. Featuring advanced protection systems, it delivers fast, safe, and efficient charging tailored for industrial applications. The smart charging management reduces downtime while maintaining optimal battery health. An ideal solution to keep your electric pallet trucks operating at peak efficiency.

Rodas
PU wheels
Rodas de poliuretano têm menor resistência ao rolamento, o que as torna mais fáceis de puxar em comparação com rodas de nylon. Elas são ideais para uso em tipos de pisos macios, como pisos laminados e polidos, pois são duráveis e duráveis.
Nylon wheels
Rodas de nylon, por outro lado, são mais adequadas para ambientes hostis e cheios de detritos. Elas são mais resistentes, mais duráveis e menos propensas a sofrer danos do que rodas de poliuretano quando usadas em armazenamento refrigerado, pisos molhados ou ásperos.

Customized Fork Solutions
This electric pallet truck offers fully customizable fork options, including lengths, widths, extensions, and carriages, tailored to meet specific operational needs. Whether handling heavy loads, oversized items, or unique shapes, these features ensure optimal performance, safety, and efficiency. Additionally, customized stall shelves maximize storage space and improve organization, streamlining your operations for versatile material handling in any workspace.

pin-code handle
The key pad access handle integrates a digital keypad into the handle, requiring a unique PIN to operate the truck. This ensures only authorized personnel can access the equipment, adding a layer of security against unauthorized use. Ideal for warehouses, manufacturing facilities, or shared settings, it prevents theft, misuse, and errors. Combined with Personal PIN-CODE settings, it offers a secure yet user-friendly access control solution for authorized operators.
