CBD20Li

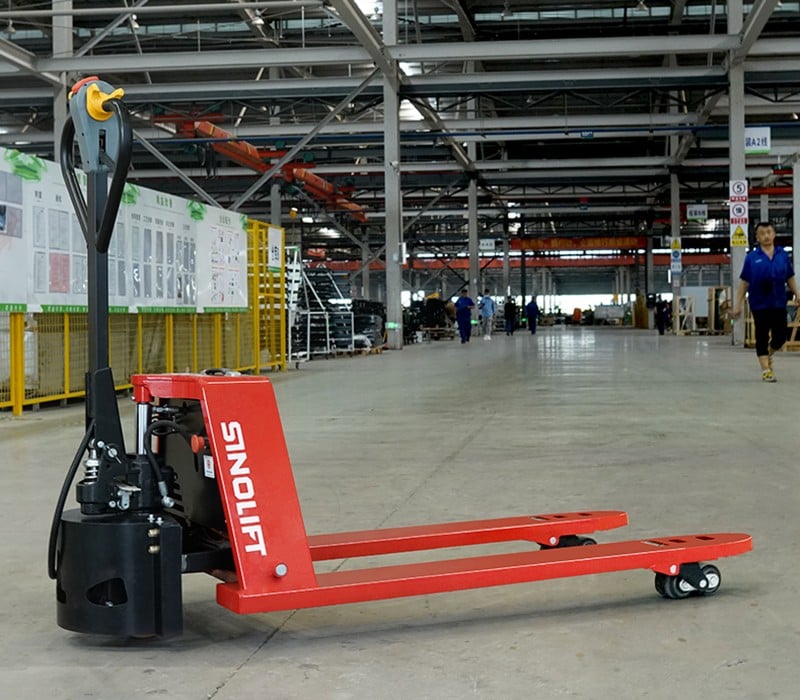

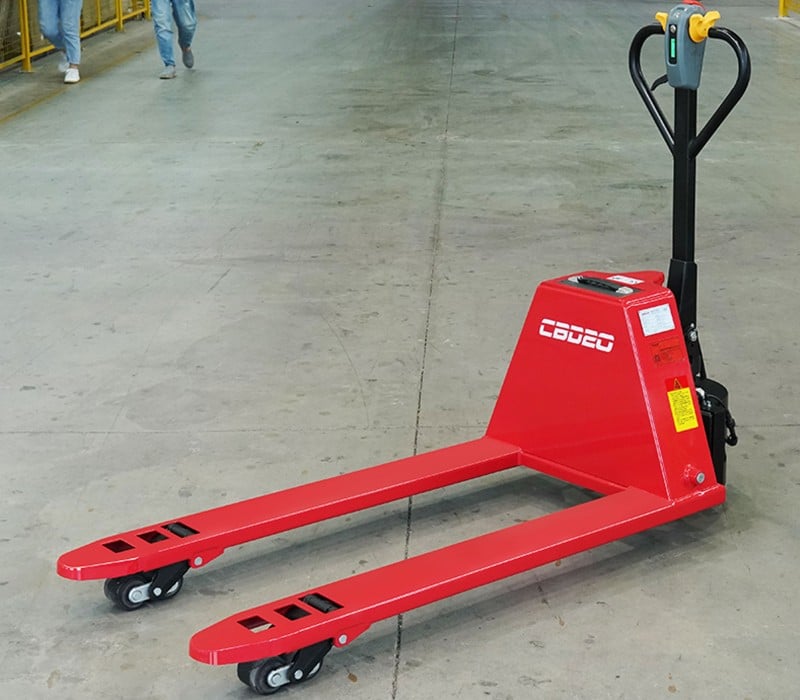

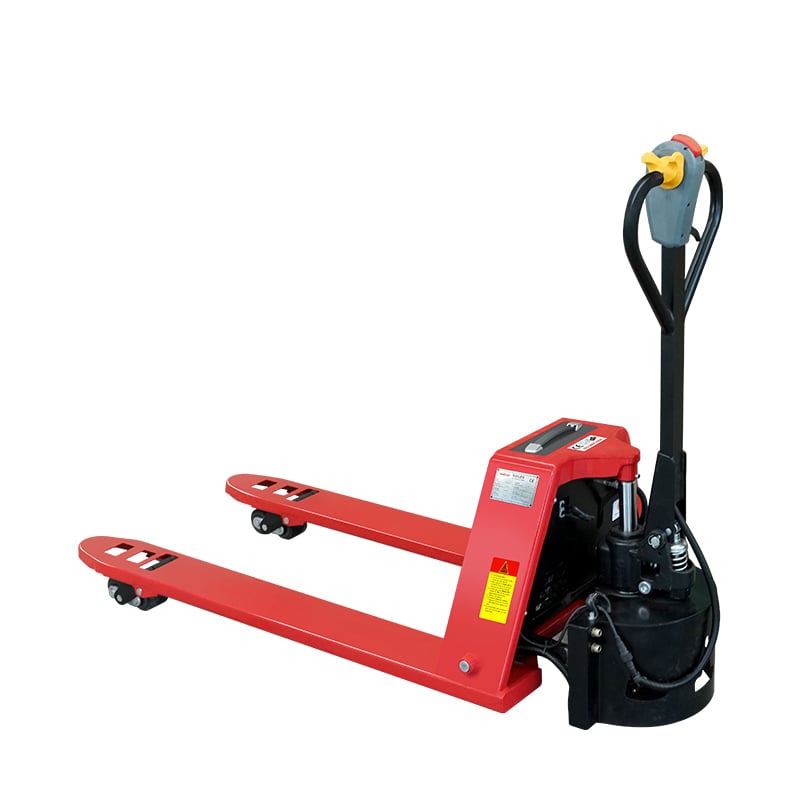

Sinolift china CBD20Li electric pallet truck is perfect for managing bulky for heavy materials transportation.

The CBD20Li is an electric pallet truck powered by a lithium-ion battery, making it ideal for efficiently transporting goods over short distances. Unlike traditional manual pallet trucks, the CBD20Li utilizes electric power for both lifting and moving cargo. Its compact fork-to-face design allows it to easily navigate tight spaces, making it perfect for use in stores, commercial centers, and other confined environments.

Contate-nos
Download

Características

Superior Climbing Ability: Engineered for effective slope-crossing, making it ideal for various industrial and factory settings.

Quick-Swap Battery System: External charging system allows fast battery replacement, ensuring continuous operation across shifts.

Premium Hydraulic Cylinder: Fitted with imported seals to prevent oil leakage and enhance reliability.

Reinforced Forks: Constructed from manganese steel for increased strength and long-lasting durability.

Dual Polyurethane Wheels: The dual front wheels reduce noise, protect surfaces, and enhance load capacity.

Emergency Stop Switch: Equipped with a reinforced spring for quick, safe operation.

 Additional Features: Includes a built-in charging port and drive wheel cover for extra safety and convenience.

Parâmetros

Modelo CBD20Li-712 CBD20Li-511
Tipo de Operação Walkie Walkie
Modo de direção Mecânico Mecânico
Capacidade de carga / Carga nominal Pq kg 2000 2000
Distância do centro de carga C milímetros 600 2000
Distância entre eixos e milímetros 1318 1248
Peso total (incluindo bateria) kg 135 130
Comprimento total  L1 milímetros 1686 1616
Largura total  W1 milímetros 685 550
Dimensão do garfo  Eu/e/s milímetros 1220 x150x45 1150x150x45
Largura do garfo  b2 milímetros 685 550
Altura mínima do garfo h3 milímetros 80 80
Altura de elevação h2 milímetros 195 195
Distância ao solo no centro da distância entre eixos m1 milímetros 35 35
Altura do guidão de operação (máx.) h14 milímetros 1245 1245
Raio de giro  Uau milímetros 1575 1520
Largura do corredor para comprimentos (tamanho do palete 1000*1200) Ast milímetros 2375 2312
Largura do corredor para comprimentos (tamanho do palete 800*1200) Ast milímetros 2205 2181
Tipo de pneu Poliuretano Poliuretano
Tamanho do pneu (dianteiro) milímetros  p 78×70  p 78×70
Tamanho do pneu (roda motriz) milímetros p 160×50 p 160×50
Quantidade de rodas, dianteira/traseira (x=roda motriz)  2/1x  2/1x
Método de amortecimento de acionamento / /
Velocidade de viagem (carregado/descarregado) Km/h 4.3/4.8 4.3/4.8
Velocidade de elevação (carregado/descarregado)  mm/s  20/25  20/25
Redução de velocidade (carregado/descarregado) >1s >1s
Desempenho de gradiente máximo (carregado/descarregado) % 5/10 5/10
Paking/Service Brake Type Eletromagnético Eletromagnético
Motor de acionamento (CC)  Potência 0.8 0.8
Motor de elevação (CC)  Potência 0.8 0.8
Voltagem/Capacidade da bateria K5  V/Ah 48/16 48/16
Peso da bateria kg 6.6 6.6

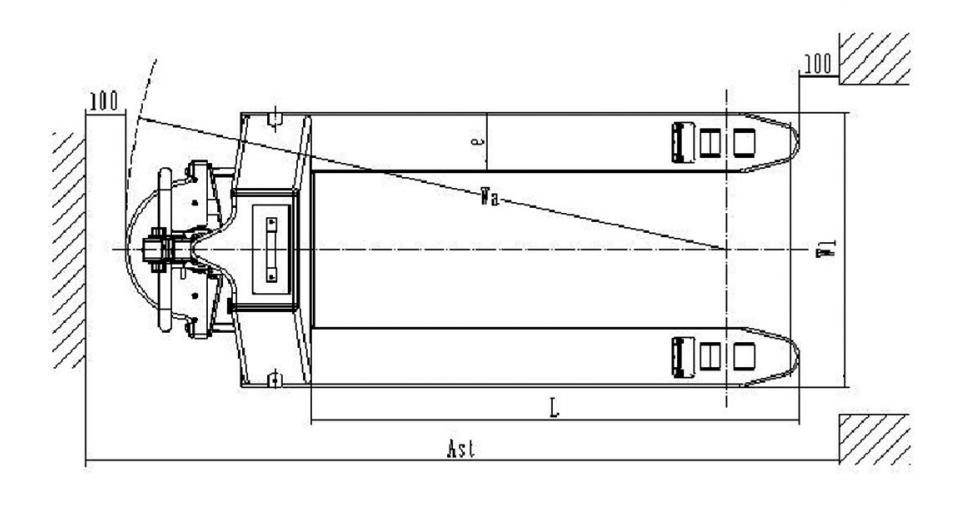

Desenhos Estruturais

Desenhos Estruturais

Desenhos Estruturais

Desenhos Estruturais

Detalhes do produto

A good forklift uses good batteries,Work for3-6hours straight

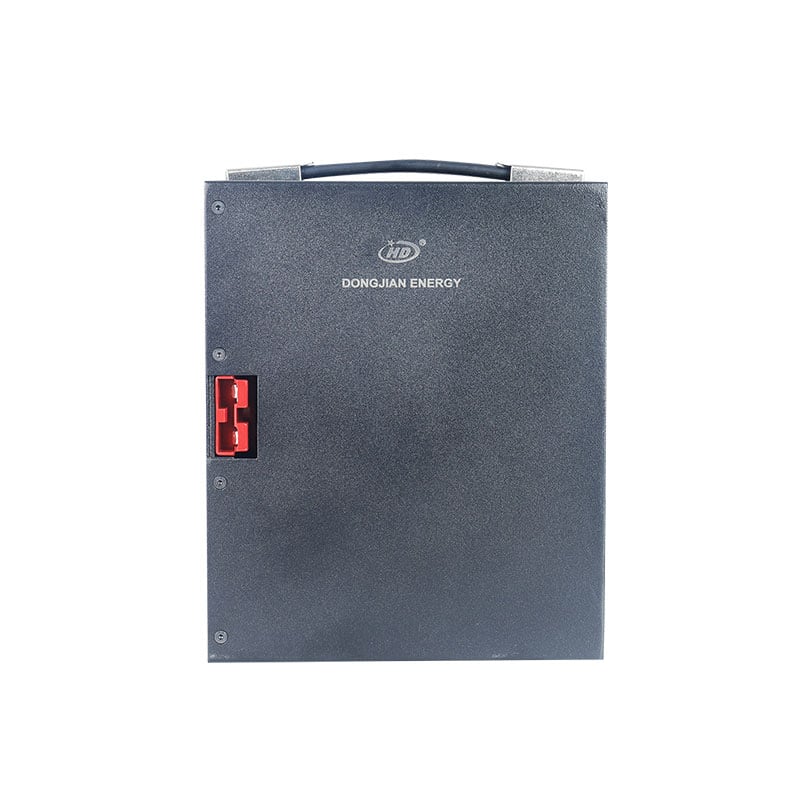

Lithium iron phosphate battery,48V/15Ah lithium iron phosphate battery is easy to change, low energy consumption, longer working time, more stable use, more safe

A small figure carries a large load

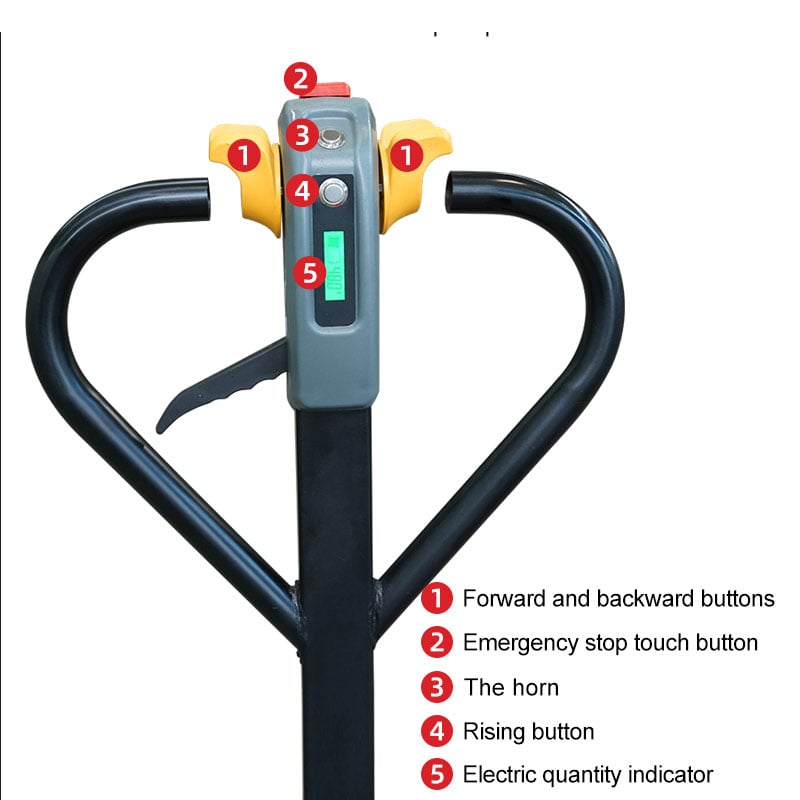

Artificial intelligence manual mechanical design handle -Forward and backward buttons -Emergency stop touch button -The horn -Rising button -Electric quantity indicator

Galeria de mídia

Perguntas frequentes

  • Can Lithium Ion Electric Forklifts be used safely both indoors and outdoors?

    Yes, our Lithium Ion electric forklifts are designed for safe outdoor operation, providing effective operator protection in all weather conditions.

  • What is a Lithium Ion Battery, and why is it the preferred choice?

    Lithium Ion batteries offer several notable advantages: Environmentally Friendly: They produce no CO2 emissions and eliminate the need for operators to top up battery cells. Safety: There are no risks of dangerous battery acid spills. Longevity: Lithium Ion batteries have a lifespan up to five times longer than lead-acid batteries. Environmental Protection: They do not contribute to environmental contamination. These features make Lithium Ion batteries a highly recommended option for various applications.

Extras opcionais

Customized Fork Solutions
This electric pallet truck offers fully customizable fork options, including lengths, widths, extensions, and carriages, tailored to meet specific operational needs. Whether handling heavy loads, oversized items, or unique shapes, these features ensure optimal performance, safety, and efficiency. Additionally, customized stall shelves maximize storage space and improve organization, streamlining your operations for versatile material handling in any workspace.

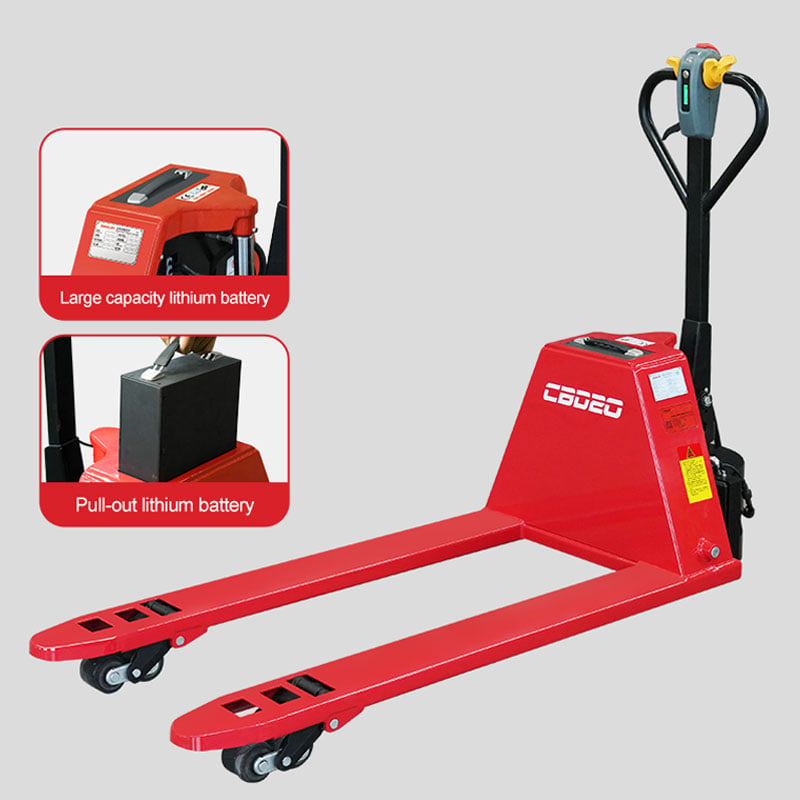

Lithium-ion Battery

Lithium-ion batteries are a game-changer in material handling equipment, offering high energy density, lightweight design, and fast charging capabilities. Compared to traditional lead-acid batteries, they provide up to 30% more efficiency, longer lifespan, and require minimal maintenance. Ideal for multi-shift operations, they support fast charging without the need for battery swaps, reducing downtime. With superior performance, compact size, and eco-friendly benefits, lithium-ion batteries are the perfect choice for modern warehouses and logistics, ensuring productivity and cost savings.

Sideway battery extraction

Designed for multi-shift operations, the high-capacity battery features a sideway extraction system on rollers, enabling quick and effortless battery changes. This ensures minimal downtime and maximizes productivity in demanding work environments.

Load backrest

When goods are stacked high, the load backrest can prevent it from falling, ensuring user and items safety. To protect the operator from falling objects, electric pallet trucks and stackers have an overhead guard. Electric Pallet Truck with load Backrest for using the boxes and taller loads to be moved safely and easily.

Automatic charger

The automatic charger provides a convenient and efficient charging solution for your electric pallet truck. It automatically manages the charging process, optimizing battery health and extending its lifespan. Perfect for busy operations, it reduces downtime and ensures your equipment is always ready for use.
