ACR series Hand Roll Pallet truck
ACR series Hand Roll Pallet truck
ACR series Hand Roll Pallet truck
ACR series Hand Roll Pallet truck

ACR series Hand Roll Pallet truck

ACR Roll Hand Pallet Truck for Paper, Packaging & Textile Industries

The ACR Roll Hand Pallet Truck features a unique rhombus fork design, specifically engineered for effortless handling of cylindrical goods across various diameters. Built with high-quality thickened steel and robust stamping technology, it ensures superior durability and load-bearing capacity for heavy-duty transportation. Its compact structure enables efficient and fast operations, while smooth welding points enhance safety. Ideal for industries like paper making, printing, packaging, textiles, and construction, this pallet truck delivers reliable performance in demanding workplace environments.

Contate-nos
Download

Características

SINOLIFT remains a leader in the industry, with all products certified to CE, ISO9001, and ISO14001 standards, backed by a 12- or 24-month warranty. Our dedicated team of engineers and technical experts ensures cutting-edge design and production techniques, delivering specialized solutions with rigorous testing and readily available spare parts. We provide over 1,000 products to meet diverse applications.

Our facilities include a factory in Shanghai’s Pudong New Area and a partner factory in Anhui Province, spanning 290,942 sqm, staffed by 150+ engineers and 2,000+ skilled workers. This enables us to deliver customized solutions efficiently, tailored to each customer’s requirements.

We provide free shipping within Shanghai and mainland China, with regular global shipments. Contact us for international quotes.

Parâmetros

Modelo ACR25B ACR25C ACR25D
Capacidade de carga kg 2500
Applicable Roll Diameter milímetros Φ400-600 Φ600-800 Φ800-1200
Fork Overall Width milímetros 760 850 1000
Volante traseiro milímetros Φ200X50 or 180X50
Load-bearing Front Wheel (Single) milímetros Φ78×100
Load-bearing Front Wheel (Double) milímetros Φ78×70
Fork Overall Length milímetros 800/900/1000/1100/1150/1220– Maximum to 1500
Self Weight kg 135 150 155

Detalhes do produto

Ergonomic Handle Design

Ergonomic Handle Design

Designed for comfortable long-hour use, reducing operator fatigue and improving efficiency. Features controlled descending speed for enhanced safety.

Heavy-Duty Steel Construction

Heavy-Duty Steel Construction

Built with thickened high-quality steel plates for maximum durability and load capacity. Precision welding ensures reliable and safe operation.

Rhombus Fork for Secure Handling

Rhombus Fork for Secure Handling

Specially shaped to transport coils and round goods safely, preventing rolling and slippage during operation.

Leak-Proof Hydraulic System

Leak-Proof Hydraulic System

Integral seamless oil cylinder with imported seals eliminates leakage. Includes overload protection for extended lifespan.

Galeria de mídia

Perguntas frequentes

  • What is a Roll Pallet Truck?

    A roll pallet truck is a specialized material handling equipment designed with a V-shaped center to securely hold and transport cylindrical loads like paper rolls, textile coils, and steel tubes in needed position, preventing them from rolling or shifting during movement. It is ideal for paper mills, printing plants, and warehouses where stable and efficient handling of rolled materials is essential.

  • What types of cylindrical materials can the ACR roll pallet truck handle?

    Our pallet truck is designed to safely transport various cylindrical loads including paper rolls, textile cores, plastic pipes, and metal drums. The adjustable rhombus fork accommodates diameters from 6" to 36", making it versatile for different industries. The anti-slip design ensures secure handling of both lightweight and heavy cylindrical materials.

  • How does this pallet truck improve workplace safety?

    The ergonomic handle reduces strain injuries by requiring 30% less operating force than standard models. The controlled descent mechanism prevents sudden drops, while the sturdy construction eliminates tipping risks. These features combine to create a safer working environment, especially in busy industrial settings.

  • Can the pallet truck maneuver easily in tight spaces?

    With its compact design and precision steering, it navigates narrow aisles and crowded workspaces effortlessly. The 360° rotating handle allows for excellent control in confined areas. Despite its heavy-duty capacity, it maintains a surprisingly small turning radius for maximum maneuverability.

  • How does this compare to standard pallet jacks for cylindrical loads?

    Unlike flat pallet jacks that risk rolling cylinders, our specialized design provides secure cradle support. The weight distribution is optimized specifically for cylindrical shapes, preventing damage to both loads and equipment. For businesses regularly handling rolls or drums, it's a significantly safer and more efficient solution.

Extras opcionais

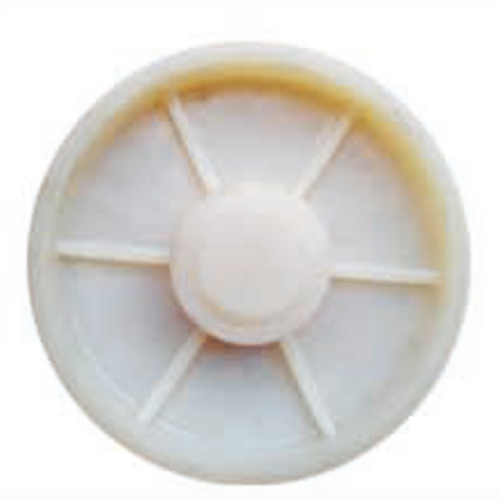

Nylon

Nylon
Choose nylon pallet truck steer wheels for low rolling resistance, long life, and cost-effectiveness. Ideal for smooth surfaces and light to medium-duty applications.

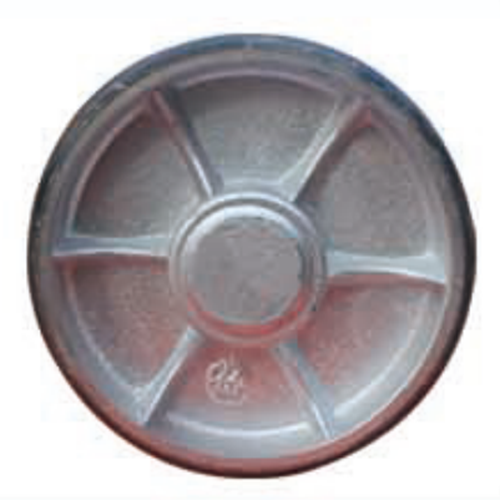

Poliuretano

Poliuretano
Choose polyurethane treaded pallet truck steer wheels for quiet operation, excellent grip, and resistance to wear. Suitable for indoor use on smooth or slightly uneven surfaces.

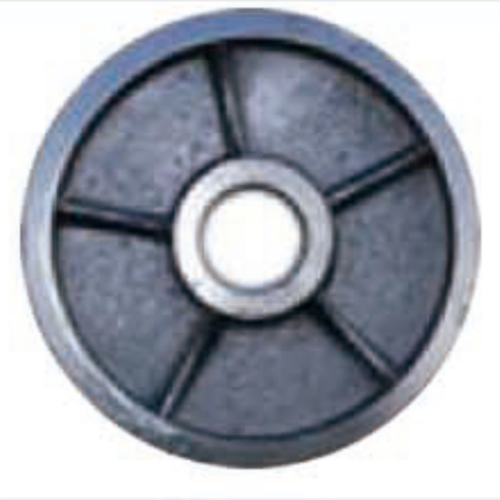

Steel

Steel
Choose steel steer wheels for durability in harsh working environments, such as metalworking areas or heavy-duty industrial settings. They are resistant to impact and can handle heavy loads.

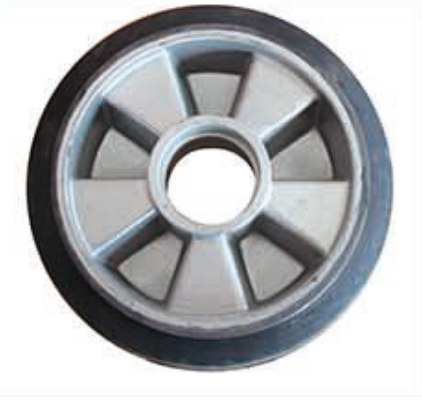

Borracha

Borracha
Choose solid rubber treaded steer wheels for quiet operation and smooth rolling over uneven or rough surfaces. They provide excellent shock absorption and are ideal for environments where floor protection is a priority.

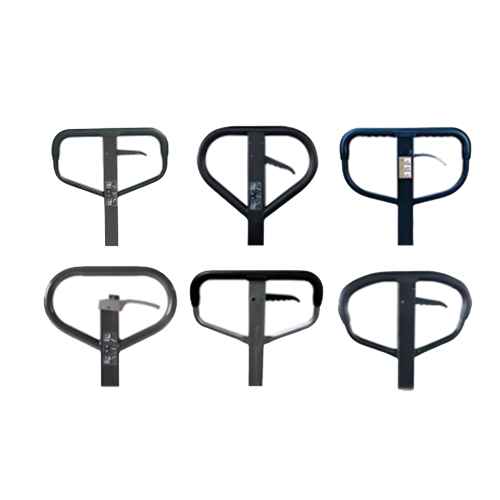

5.Tiller

Tiller

Choose a tiller that suits your habits and preferences

6.Adjustable Fork

Adjustable Fork

The adjustable fork enables stepless width/length adjustment, allowing one pallet truck to handle all pallet types effortlessly. Eliminating the need for multiple equipment, it significantly improves mixed-pallet handling efficiency and precision – an intelligent solution for modern logistics.

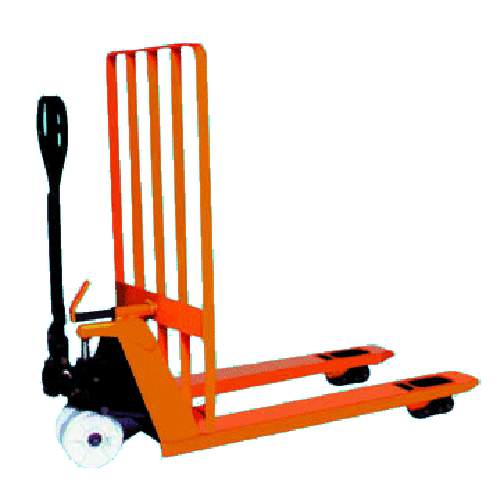

Backrest

Backrest

This option provides additional protection when transporting lightweight or slippery loads. The sturdy backrest design effectively prevents cargo from tipping or sliding backward, and straps can be used for added security when needed. The foldable feature ensures unimpeded operation when empty, making it an ideal accessory for enhanced stability and efficiency in material handling.

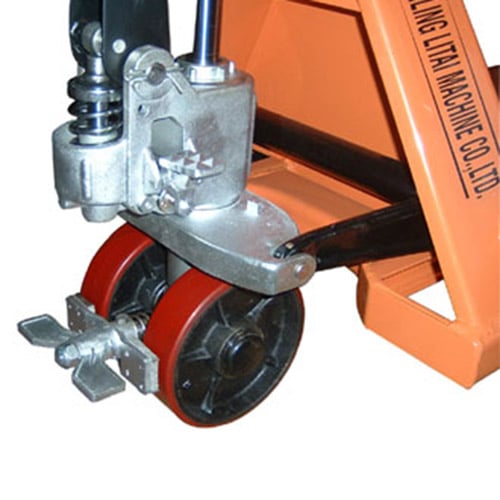

8.Foot Brake

Freio de pé

The foot brake option is a rear-wheel-mounted braking device that provides instant locking through pedal operation. When the pallet truck comes to a stop, simply stepping on the pedal activates the brake, effectively preventing load shifting or unintended vehicle movement. This eliminates risks of cargo damage and enhances operator safety during material handling operations.

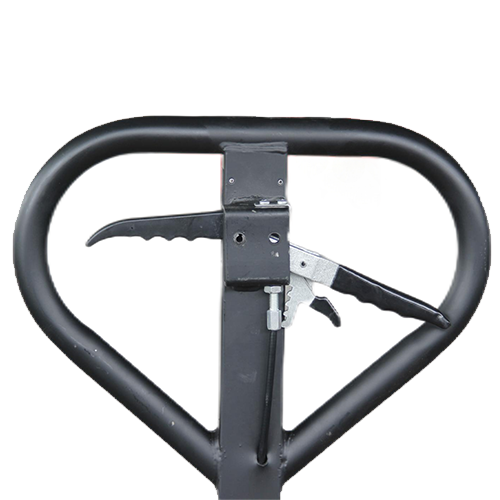

9.Hand Brake

Hand Brake

The hand brake option provides secure stopping control for slopes and inclines, preventing unintended rolling to protect both operator and cargo. Its ergonomic lever enables quick, one-handed operation for reliable braking when needed. This safety-focused upgrade is ideal for warehouses, ramps, or uneven surfaces.

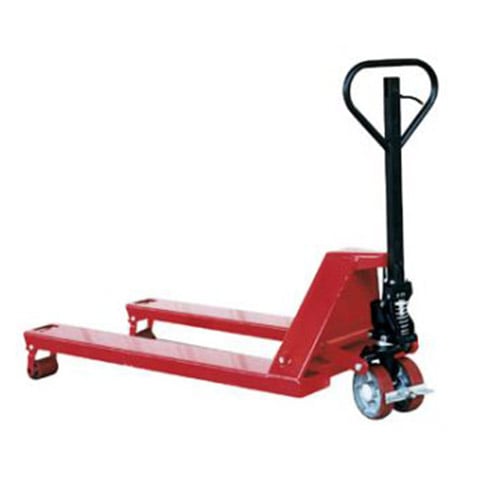

Nose Pallet Truck

Nose Pallet Truck

This option is specifically engineered for dense stacking operations. Its unique set-back fork design enables precise single-pallet handling. The special clearance between fork tips and front rollers ensures individual pallet pickup, allowing tight inline positioning – perfect for high-density warehousing, production line logistics and other applications requiring exact stacking accuracy.
