WP-200-3.4BW

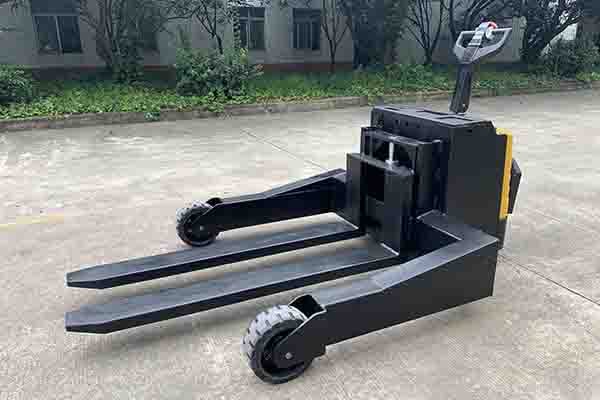

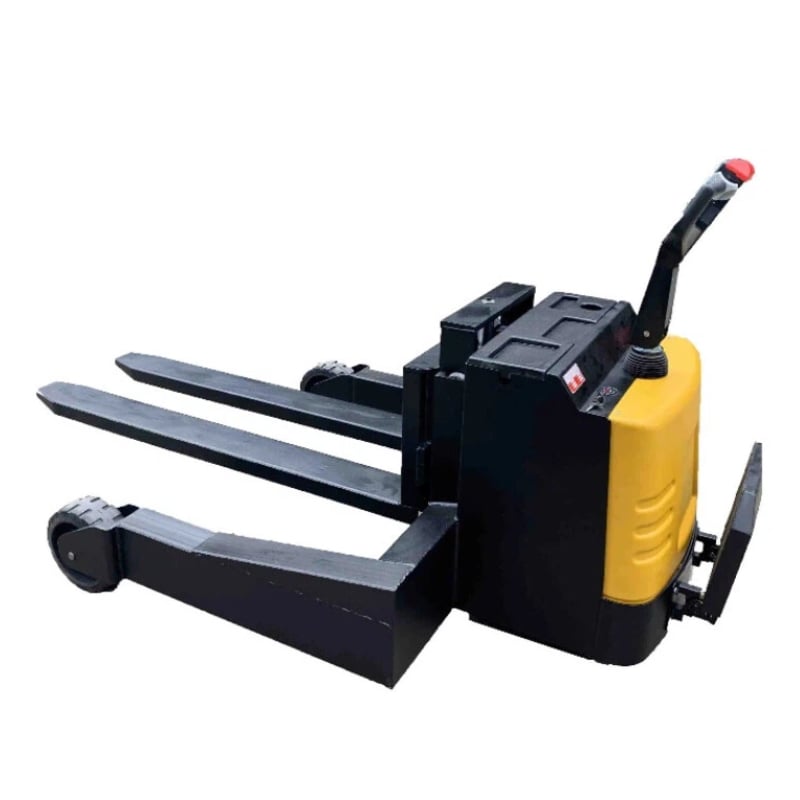

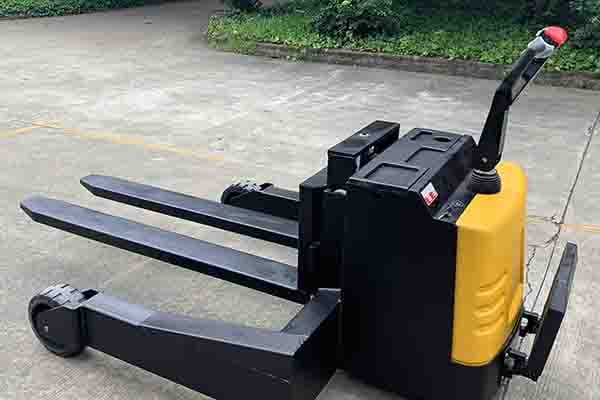

WP-200-3.4BW 2 ton All Terrain Pallet Trucks for Outdoor Use – Heavy-Duty, Adjustable Forks

This Pallet Truck is designed for rugged outdoor use, effortlessly handling uneven surfaces like gravel, grass, and sand—ideal for construction sites, warehouses, and outdoor shipments. Its large wheels ensure smooth maneuverability on rough terrain, while the adjustable fork width and hydraulic lift pump (separate from the steering) enhance versatility for diverse loads. Unlike standard pallet jacks, it thrives outdoors but remains unsuitable for gradients. Perfect for businesses regularly moving heavy loads across challenging ground.

Contact Us
Download

Features

Parameters

Model WP-200-3.4BW
Capacity 2000kg
Drive wheel DC24V/1000W
Hydraulic power pack DC24V/2000W
Battery 24V/210Ah
Charger 24/V30A

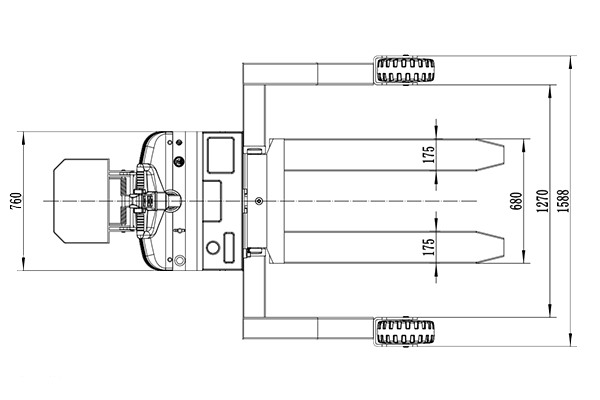

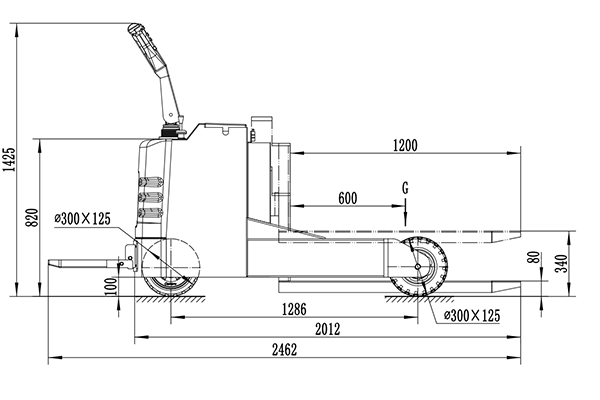

Overall length 2462mm
Overall width 1588mm
Fork dimension 1200x175mm
Maximum gradeability,no load 10%
Maximum gradeability,full load 5%
Tyre size,driving wheels (Diameter x width) Ф300x125mm
Tyre size,loading wheels (Diameter x width) Ф300x125mm



1

2

Product Details

Ergonomic Handle Design

Ergonomic Handle Design

The WP-150-3.0RTL features an intuitive ergonomic handle with easy-to-operate throttle controls, allowing infinite adjustment of forward and reverse speeds. Integrated lift/lower buttons, an emergency reverse function, and a horn ensure safe and efficient operation in demanding environments.

Intelligent Electric Meter

Intelligent Electric Meter

Features a smart digital display for real-time power monitoring, helping optimize battery usage and prevent over-discharge. Extends battery lifespan by providing accurate energy consumption data.

Non-Slip Shock-Absorbing Pedal

Non-Slip Shock-Absorbing Pedal

The rubber-coated pedal ensures slip resistance, while the hydraulic rod enables smooth auto-rebound and retraction. Safely folds into the body to avoid collisions during transport.

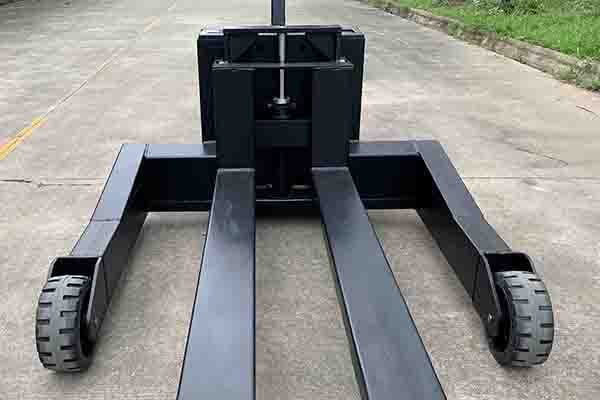

High-Strength Forging Fork

High-Strength Forging Fork

Made from durable forged steel for superior load capacity and resistance to deformation. Ensures quiet, stable lifting and lowering operations.

Media Gallery

FAQ

  • What is a Rough Terrain Electric Pallet Jack?

    A Rough Terrain Electric Pallet Jack is a heavy-duty, battery-powered material handling machine designed to transport palletized loads over uneven surfaces such as gravel, dirt, construction sites, and outdoor landscapes. It features large, rugged wheels, a powerful motor, and ergonomic controls for smooth operation in challenging environments.

  •  What's the difference between a standard electric pallet truck and a Rough Terrain Electric Pallet Jack?

    Standard electric pallet trucks are designed for smooth indoor surfaces like warehouses, while Rough Terrain Electric Pallet Jacks have larger, reinforced wheels, higher ground clearance, and a more robust frame to handle outdoor and uneven terrain. They also feature stronger motors and durable construction for demanding environments.

  • In which scenarios are Rough Terrain Electric Pallet Jacks suitable?

    These pallet jacks are ideal for construction sites, lumber yards, nurseries, gravel pits, farming operations, and any outdoor or mixed-surface environments where standard pallet trucks would struggle. They can also be used indoors in warehouses with rough flooring.

Optional Extras

Double Ball Hitch

The Double Ball Hitch is a versatile attachment designed for towing and maneuvering heavy loads with an electric pallet truck. Its dual-ball design provides enhanced stability and flexibility when connecting to various trailers or carts. Made from high-grade steel with a durable powder-coated finish, it resists corrosion and withstands rugged work environments. The quick-attach system ensures easy installation, minimizing downtime during equipment changes. Ideal for warehouses, construction sites, and industrial applications where efficient load transfer is essential.

Manual Lock Hitch

The Manual Lock Hitch offers a secure and reliable towing solution for electric pallet trucks. Its simple yet robust locking mechanism ensures that the attachment stays firmly in place during operation, preventing accidental disengagement. The heavy-duty steel construction, combined with a powder-coated finish, provides long-lasting durability in harsh conditions. With fast installation and intuitive operation, this hitch is perfect for repetitive towing tasks in logistics, manufacturing, and outdoor job sites.

Single Drum Gripper Hitch

The Single Drum Gripper Hitch simplifies the handling of heavy drums, barrels, and cylindrical loads with an electric pallet truck. Its specialized clamping mechanism securely grips drums, allowing for safe and efficient transportation without manual lifting. The steel frame and powder-coated finish ensure resistance to wear, chemicals, and impacts. This attachment significantly improves workplace safety by reducing strain injuries and increasing productivity in industries like chemicals, food processing, and waste management.
