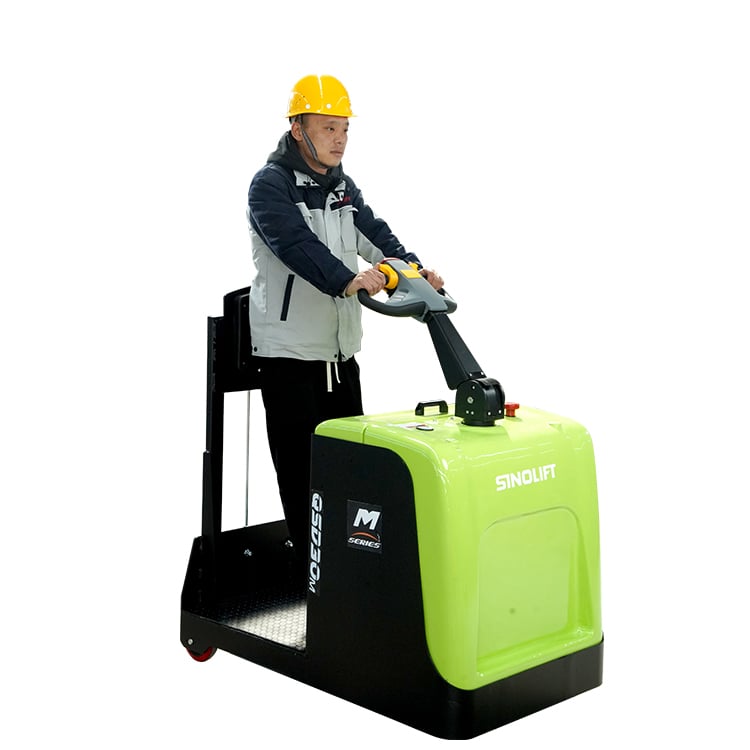

Sinolift QSD20M QSD30M stand-in electric trucks tow tractors
The sinolift QSD20M/QSD30M includes Gemman engineering anddesign aspects which power over the competition in strength, versatilityand usability. This electric tow tractor is perfect for manufacturing plants,warehouses and distribution centers, which depend on their tuggers tokeep product moving. Shift after shift, the QSD20M/QSD30M will keeppace with your busy environment. For everything you pull, tug or tow,sinolift tow tractors are built to power through your toughest applications.
Features
- Enhanced stability and resistance to wear and torsion thanks to the heavy duty steel drive frame.
- Excellent driving performance, Compact steering system.
- High maneuverability – U-Turn possible even in very narrow aisles.
- Tackles ramps with ease thanks to a 65mm ground clearance.
- Easy on-off for quick picking.
- Shorter turning radius compared to order picker with long forks.
- High performance with centered drive wheel.
- Wide operator compartment for easy access from both sides.
- The enclosed full AC drive motor is vertically mounted with easy service access and is well protected from splashes and debris.
- The cover is made of a durable engineered thermoplastic elastomer, which is flexible, resistant to chipping and provides excellent protection of components.
Parameters
Productivity
QSD20M and QSD30M feature the CURTiS motor control system with AC power. A central processor monitors and controls the performance of the truck, resulting in super-smooth control at all speeds.
Every time the truck decelerates or the brakes are applied, energy is passed directly back to the battery, allowing long working shifts on a single charge. For multiple shift operations, the QSD20M and QSD30M are designed for fast and easy battery change.
Safety
Optimized truck performance
The optimized truck performance system on the QSD20M and QSD30M series automatically adapts speed when cornering to allow fast yet safe driving in all conditions.
Durability
The SINOLIFT power drive system combined with advanced AC motors means a truck with remarkable simplicity in design and fewer components, resulting in greater reliability and lower maintenance costs. On-board diagnostics ensure that in the event of a fault, it can be quickly identified and resolved.
Clean, Quiet Battery Power
Clean, quiet, battery-powered towing tractor featuring a wide array of advanced mechatronics technology throughout. We offer several types with varied features, each of which is applicable to particular towing load and driving conditions.
| ldentification | 1.1 | Manufacture’s type designation | SINOLIFT | |||
| 1.2 | Model | QSD20M | QSD30M | |||
| 1.3 | Power Type | Electric | ||||
| 1.4 | Type ofoperation | Stand-on | ||||
| 1.5 | Steering Mode | Electric Power Steering | ||||
| 1.6 | Wheelbase | y | mm | 950 | 950 | |
| Weight | 2.1 | Total Weight(with battery) | kg | 550 | 550 | |
| 2.2 | Axle Load(unladen):Drive side/Load-bearing side | kg | 350/200 | 350/200 | ||
| Dimension | 3.1 | Overall length | L1 | mm | 1 455 | 1455 |
| 3.2 | Overall width | W1 | mm | 800 | 800 | |
| 3.3 | Overall height | h14 | mm | 1610 | 1610 | |
| 3.4 | Couping Height(Hook center above ground) | h10 | mm | 175/225/275 | 175/225/275 | |
| 3.5 | Standing Platform | h2 | mm | 175 | 175 | |
| 3.6 | Ground Clearance at center of wheelbase (Min) | m1 | mm | 65 | 65 | |
| 3.7 | Turning Radius | Wa | mm | 1280 | 1280 | |
| Tyre | 4.1 | Tyre Type | Polyurethane/Rubber | |||
| 4.2 | Tyre Size(Front) | mm | 230×75 | 230×75 | ||
| 4.3 | Tyre Size(Rear) | mm | 254×100 | 254×100 | ||
| 4.4 | Wheels Quantity,front/rear (x=driving wheels) | 1x/2 | 1x/2 | |||
| Performance | 5.1 | Traveling Speed(laden/unladen) | Km/h | Referto the climbing curve | ||
| 5.2 | Rated Draw-bar Pull | F | N | 600 | 600 | |
| 5.3 | Max.Gradient Performance S25min laden/unladen) | % | Referto the climbing curve | |||
| 5.4 | Service Brake Type | Electromagnetic | ||||
| 5.5 | Parking Brake Type | Electromagnetic | ||||
| Power Unit | 6.1 | Drive Motor Rating(AC) S2-60min | kW | 1.5 | 1.5 | |
| 6.2 | Battery Vo ltage/Capacity K5 | V/Ah | 24/210 | 24/210 | ||
| 6.3 | Battery Weight | kg | 188 | 188 | ||
| Others | 7.1 | Controller Brand | CURTIS | CURTIS | ||
| 7.2 | Controller Model | 1232E | 1232E | |||
| 7.3 | Sound levelat driver’s ear according to EN 12053 | dB | 65 | 65 | ||
Structural Drawings
Structural Drawings
Product Details
Smart ergonomic handle
High strength sheet metal sturdy backrest
Polyurethane PU wheel
Product section details
Media Gallery
FAQ
-
1. What is a stand-on electric tugger used for?
QSD20M QSD30M stand-on electric tugger is designed to tow heavy loads efficiently within warehouses, factories, and logistics centers. It’s ideal for moving carts, trailers, or other wheeled loads, making it a key tool in streamlining material handling tasks. -
2. What is the typical towing capacity of a stand-on electric tugger?
Towing capacities vary by model but typically range from 2 tons to 3 tons, depending on the application. Always verify the specific model’s capacity to ensure it meets your needs. -
3. What are the benefits of a stand-on design?
The stand-on design allows operators to: Quickly get on and off for frequent stops. Enjoy better visibility of the surroundings while towing. Save time and reduce fatigue during long shifts. -
4. How long does the battery last on a full charge?
The battery life depends on the usage and load being towed but generally lasts 6 hours under continuous operation. Some models also offer quick charging or replaceable battery packs for extended uptime. -
5. What safety features are included in stand-on electric tuggers?
Stand-on electric tuggers are equipped with: Anti-roll-back systems for safe operation on inclines. Emergency stop buttons for immediate halts. Ergonomic controls to minimize operator fatigue. Speed controls to ensure safe towing in various environments.
Optional Extras
Versatile Cabins:
Stand-up Tow Tuggers offer flexible cabin customization options such as semi-closed, fully enclosed, with a heater or air conditioner, and more, catering to diverse applications.
Cutting-edge Lithium Battery:
These tuggers are powered by a robust lithium battery that boasts superior longevity and charging speed, surpassing traditional lead-acid batteries.
Precise Inching Switch:
The inclusion of an inching switch allows the operator to carry out slow and precise movements, crucial for navigating tight spaces with ease.
Effortless Battery Removal:
The side roll-out feature of the battery in Stand-up Tow Tuggers facilitates uncomplicated maintenance and replacement procedures.
Enhanced Visibility:
A reflecting mirror supplements the operator’s view, providing clarity and promoting safety when maneuvering.
Safety First:
With an alarm lamp integrated into the design, Stand-up Tow Tuggers prioritize safety, making sure everyone in the area is aware of its presence.
