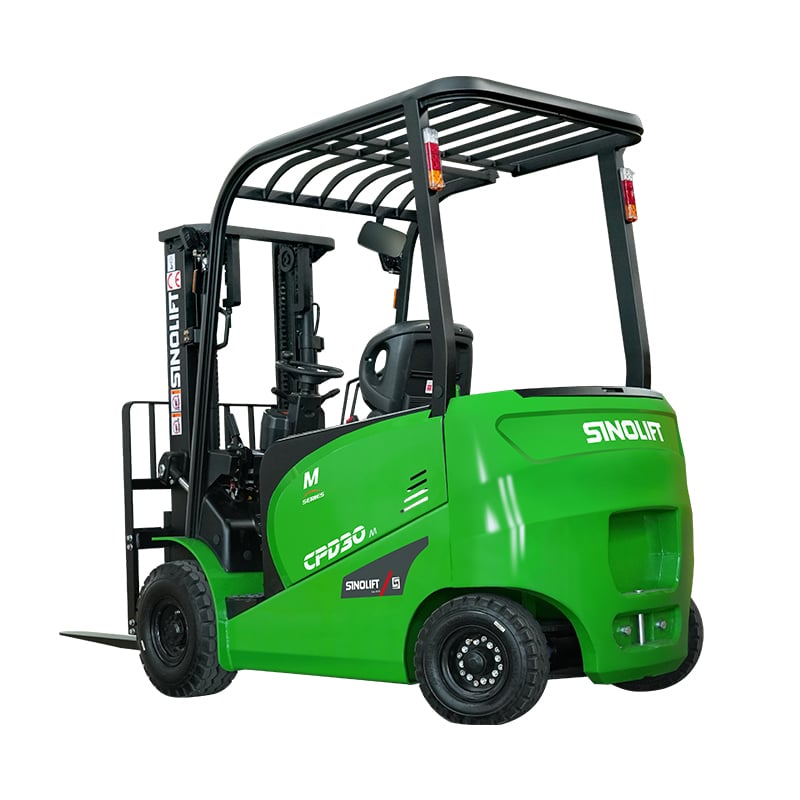

Sinolift 4-Wheel 3T-3.5T CPD30M CPD35M Electric Forklift Truck Integrated Lithium Battery
Sinolift 4-Wheel 3T-3.5T CPD30M CPD35M Electric Forklift Truck Integrated Lithium Battery - Image 2
Sinolift 4-Wheel 3T-3.5T CPD30M CPD35M Electric Forklift Truck Integrated Lithium Battery - Image 3
Sinolift 4-Wheel 3T-3.5T CPD30M CPD35M Electric Forklift Truck Integrated Lithium Battery - Image 4
Sinolift 4-Wheel 3T-3.5T CPD30M CPD35M Electric Forklift Truck Integrated Lithium Battery - Image 5
Sinolift 4-Wheel 3T-3.5T CPD30M CPD35M Electric Forklift Truck Integrated Lithium Battery - Image 6

Sinolift 4-Wheel 3T-3.5T CPD30M CPD35M Electric Forklift Truck Integrated Lithium Battery

The CPD30M and CPD35M electric forklifts are designed for high-performance indoor and outdoor operations, offering robust and precise handling with a rated load capacity of 3-3.5 tons. Featuring an advanced all-wheel steering system and ergonomic controls, these forklifts ensure intuitive operation and operator comfort, even during long shifts. The space-saving lithium-ion battery provides zero emissions, fast charging, and full power until depletion, reducing operating and maintenance costs. Enhanced visibility from a higher driver’s seat, a side-set cab, and a large roof window ensures safe and efficient operation in various environments.

Contact Us
Download

Features

SINOLIFT can customize different types of electric forklifts.

  • SINOLIFT 3T electric counterbalance forklift trucks have gained ISO9000 certification and CE certification.
  • Installed with AC walking controller and AC motor that own good performance. It adopts domestic famous high performance AC motor and imported US CURTIS AC controller that are of high quality, reliability and durability.
  • Almost no noise while operation. Low-noise gear oil pump, hoisting noise and traveling noise is ultimately reduced. They are more eco-friendly.
  • SINOLIFT electric counterbalance forklift truck is of high reaction sensitivity. Accelerator is adopted for highly efficient working.
  • Our company owns a technical development team who pursuits the best cost-effective products and provides high quality and timely service.
  • Compact body structureis simple and convenient to operate.
  • The getting-on pedal and suspending seat can reduce drivers’ fatigue and make them feel more comfortable.

Parameters

characteristic 1.1 Manufacturer Brand SINOLIFT
1.2 Model CPD30-MA1 CPD30-MA1S CPD30-MA1Li CPD30-MA1LiS
1.3 Power Type Electric Electric Electric Electric
1.4 Operation Type Seated Seated Seated Seated
1.5 Rated Capacity Q kg 3000 3000 3000 3000
1.6 Load Centre c mm 500 500 500 500
1.7 Front Overhang L2 mm 480 480 480 480
1.8 Wheelbase L1 mm 1685 1685 1685 1685
Size 2.1 Mast Tilt Angle α/β ° 6/10 6/10 6/10 6/10
2.2 Mast Lowered Height H1 mm 2080 2080 2080 2080
2.3 Free Lift Height H3 mm 150 150 150 150
2.4 Standard Mast Lift Height H mm 3000 3000 3000 3000
2.5 Mast Extended Height H2 mm 4251 4251 4251 4251
2.6 Overhead Guard Height H4 mm 2125 2125 2125 2125
2.7 Distance from Botoom to Seat mm 1070 1070 1070 1070
2.8 Traction Bolt Height mm 303 303 303 303
2.9 Overall Length (include forks) L mm 3645 3645 3645 3645
2.10 Length to Face of Fork L’ mm 2575 2575 2575 2575
2.11 Overall Width W1 mm 1265 1265 1265 1265
2.12 Fork Size TxWxL4 mm 40/125/1070 40/125/1070 40/125/1070 40/125/1070
2.13 Fork Type ISO2328 3A ISO2328 3A ISO2328 3A ISO2328 3A
2.14 Fork Carriage Outline Width mm 1100 1100 1100 1100
2.15 Fork carriage Spread Width W5 mm 250-1050 250-1050 250-1050 250-1050
2.16  Ground Clearance Under Mast Laden H5 mm 115 115 115 115
2.17 Ground Clearance at Center of the Wheelbase H6 mm 120 120 120 120
2.18 Min. Right Angle Stacking Aisle Width (Pallet 1000×1000) Ast mm 3855 3855 3855 3855
2.19 Min. Right Angle Stacking Aisle Width (Pallet 1200×1200) Ast mm 4055 4055 4055 4055
2.20 Turing Radius r mm 2230 2230 2230 2230
Weight 3.1 Service Weight kg 4700 4760 4700 4760
3.2 Front Axle Rated Load Capacity with Laden kg 6965 6990 6965 6990
3.3 Rear Axle Rated Load with Laden kg 735 770 735 770
3.4 Rated Load Capacity with Unladen kg 2220 2240 2220 2240
3.5 Rear Axle Rated Load with Unladen kg 2480 2520 2480 2520
Tyre & Chassis 4.1 Tyre Type Pneumatic Pneumatic Pneumatic Pneumatic
4.2 Tyre Size (Front) 23×9-10-18PR 23×9-10-18PR 23×9-10-18PR 23×9-10-18PR
4.3 Tyre Size (Rear) 18×7-8-14PR 18×7-8-14PR 18×7-8-14PR 18×7-8-14PR
4.4 Wheel Number (x=Drive Wheel) 2x/2 2x/2 2x/2 2x/2
4.5 Front Tread mm 1058 1058 1058 1058
4.6 Rear Thread mm 955 955 955 955
Performance 5.1 Max. Travel Speed (Laden/Unladen) km/h 13.5/14.5 13.5/14.5 13.5/14.5 13.5/14.5
5.2 Lifting Speed (Laden/Unladen) mm/s 210/400 210/400 210/400 210/400
5.3 Lowering Speed (Laden/Unladen) mm/s 350/350 350/350 350/350 350/350
5.4 Max. Gradeability (Laden/Unladen) % 15/20 15/20 15/20 15/20
5.5 Service Brake Type Hydraulic Hydraulic Hydraulic Hydraulic
5.6 Parking Brake Type Mechanical Mechanical Mechanical Mechanical
Power & Transmission 6.1 Drive Motor Rating S2 60min kW 16.6 16.6 16.6 16.6
6.2 Lifting Motor Rating at S315% kW 13/13.5 13/13.5 13/13.5 13/13.5
6.3 Battery Voltagl/Capacicty K5 V/Ah 80/500
(Max.600)		 80/500
(Max.600)		 83.2/270  (Max. 525) 83.2/270  (Max. 525)
6.4 Battery Weight kg 1350
（1350-1550）		 1350
（1350-1550）		 280
（280-350）		 280
（280-350）
6.5  Maximum Allowable Battery Size mm 675x780x964 675x780x964 675x780x964 675x780x964
Others 7.1 Controller Brand CURTIS CURTIS CURTIS CURTIS
7.2 Controller Model 1236SE+1234SE 1236SE+1234SE 1236SE+1234SE 1236SE+1234SE
7.3 Attachment Pressure bar 140 140 140 140
7.4 Attachment Oil Volume L/min 65 65 65 65
7.5 Hydraulic Oil Tank Volume L >=22 >=22 >=22 >=22
7.6 Sound Level at Driver’s Ear According to EN 12 053 dB 72 72 72 72

Easy Operation and Maintenance
The key controllers are sealed in the counterweight, ensuring dust and water resistance, while the self-cooling travel motor with IP20 protection and IPX3 protection grade for the entire forklift ensures high reliability. Low energy consumption and long service cycles further reduce operating and maintenance costs.

Enhanced Stability
Traction motors are arranged in parallel, and batteries are fixed at the bottom of the truck frame. The lengthened shaft distance and rear wheel distance enhance the swing point of the steering axle and shorten the front overhang distance, providing excellent stability.

Ergonomic and Humanized Design
The longer wheelbase provides larger legroom, and the steering wheel diameter is reduced to 300mm for easier operation. Adjustable seats allow operators to choose the best driving position, while added storage space and a USB interface enhance convenience.

Advanced Safety and Performance
Motor controllers, connectors, power plugs, emergency switches, and dashboards use world-famous brands for reliability. The emergency switch meets Euro safety regulations, with overloading protection for electronics and hydraulic systems, and the entire truck meets CE certification standards.

High Efficiency and Environmental Benefits
The powerful electric drive system ensures low environmental impact and high handling capacity. The lithium-ion battery provides zero emissions, fast charging, and full power until depletion, while the streamlined design and optimized energy efficiency reduce energy consumption.



Structural Drawings

Structural Drawings

Product Details

Adjustable steering wheel,the angle of the steering column can easily be adjusted through a lever on the right-hand side of the steering column.

Optimized pedal position and anti slippad

Now available with Li-ION technology,with completely maintenance- and emission-free Li-ION batteries, there are no limits.

Now available with Li-ION technology,with completely maintenance- and emission-free Li-ION batteries, there are no limits.

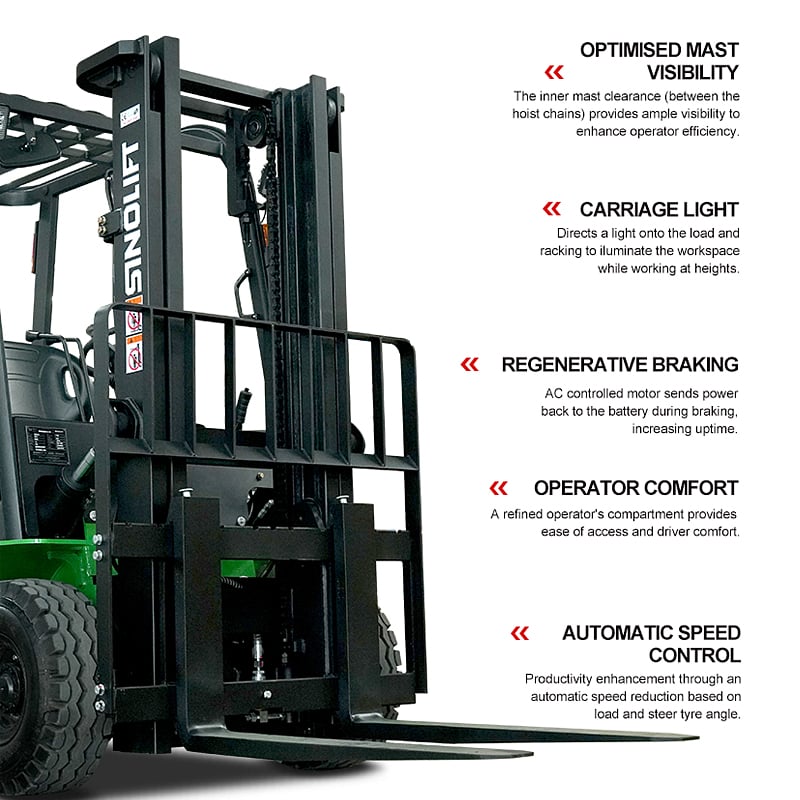

Optimised mast visibility Carriage light Regenerative braking Operator comfort Automatic speed control Synchronous and power assist steering Horizontal battery extraction

Optimised mast visibility Carriage light Regenerative braking Operator comfort Automatic speed control Synchronous and power assist steering Horizontal battery extraction

Media Gallery

FAQ

  • What is the primary advantage of using a counter-balanced electric forklift over other types?

    Counter-balanced electric forklifts are versatile and can handle a wide range of materials both indoors and outdoors (on smooth surfaces). They offer zero emissions, quieter operation, and better maneuverability compared to internal combustion forklifts, making them ideal for warehouses and environmentally sensitive areas.

  • What is the maximum load capacity for a four-wheel electric counter-balanced forklift?

    The maximum load capacity for a four-wheel electric counter-balanced forklift typically ranges from 2.0 to 5.0 tons (4,400 to 11,000 lbs), depending on the model and configuration. These forklifts are designed for heavier loads and more demanding operations compared to three-wheel models, offering enhanced stability and durability. Factors such as battery capacity, mast type, and load center can influence the exact load capacity. For specific details, refer to the manufacturer's specifications or consult with a dealer.

  • How do I maintain the battery of a counter-balanced electric forklift?

    Charge the battery only when it drops to around 20-30% capacity. Avoid overcharging to prolong battery life. Regularly check electrolyte levels for lead-acid batteries. Ensure the charging area is well-ventilated and clean.

  • Can counter-balanced electric forklifts be used in outdoor environments?

    Yes, they can be used outdoors on flat, smooth surfaces. However, they are not ideal for uneven terrain or harsh weather conditions unless equipped with special tires or weather-resistant features.

  • What safety features are included in counter-balanced electric forklifts?

    Most models include: Stability systems to prevent tipping. Anti-rollback features for safe operation on slopes. Ergonomic controls to reduce operator fatigue. LED lights and alarms for enhanced visibility and awareness in busy warehouses.

Optional Extras

Lithium-ion Battery

Lithium-ion batteries are a game-changer in material handling equipment, offering high energy density, lightweight design, and fast charging capabilities. Compared to traditional lead-acid batteries, they provide up to 30% more efficiency, longer lifespan, and require minimal maintenance. Ideal for multi-shift operations, they support fast charging without the need for battery swaps, reducing downtime. With superior performance, compact size, and eco-friendly benefits, lithium-ion batteries are the perfect choice for modern warehouses and logistics, ensuring productivity and cost savings.

Cold store protection

Designed for extreme cold storage environments, this electric pallet truck is equipped with specialized features such as cold store oil, anti-slip platforms, and heated batteries. Built to operate seamlessly in low-temperature conditions, it ensures reliable performance and durability in harsh environments. With enhanced insulation and robust components, this version guarantees efficiency and safety in demanding cold storage applications.

Sideway battery extraction

Designed for multi-shift operations, the high-capacity battery features a sideway extraction system on rollers, enabling quick and effortless battery changes. This ensures minimal downtime and maximizes productivity in demanding work environments.

Blue spot light

The blue spot light projects a visible beam on the ground, indicating the forklift’s direction of travel. This enhances safety by alerting nearby workers to the forklift’s movements, especially in busy environments.

Non-marking tyre
Non-marking tyres are designed to leave no traces on sensitive flooring, making them ideal for use in clean environments like food processing plants or retail spaces. They offer excellent traction and durability without compromising floor integrity.

Front Dual Tyre
The front dual tyre configuration enhances stability and weight distribution, allowing the forklift to carry heavier loads with improved balance. This option is ideal for environments that require handling large or heavy items, providing better traction and reducing the risk of tipping.

SE Tyre
SE tyres are designed for durability and performance on rough surfaces, making them suitable for heavy-duty operations in rugged environments. They improve the forklift’s stability and extend the lifespan of the tyres, ensuring reliable performance over extended periods of use.

Lead-Acid Batteries of BigCapacities (48V/600Ah and 48V/700Ah)

This option allows you to choose lead-acid batteries of varying capacities to suit your specific needs. Larger capacity batteries are ideal for intensive use, providing longer operational times, while smaller batteries are perfect for lighter tasks, reducing weight and space requirements. This flexibility ensures efficient power usage and helps optimize cost-effectiveness based on varying workload demands.

Alarm Lamp
With an alarm lamp integrated into the design, this device offers a highly visible warning solution for forklifts and industrial vehicles. The bright, flashing light enhances safety by alerting personnel to the presence of the vehicle, especially in busy or low-visibility environments. Available in various colors, including amber, red, and blue, the alarm lamp can be customized to meet different safety requirements and regulations. Durable and weather-resistant, it ensures reliable performance in diverse working conditions, helping to prevent accidents and improve overall workplace safety.

Reverse Alarm
The reverse alarm adds an important safety feature by emitting a loud sound when the stacker is moving in reverse. This alerts nearby personnel of the stacker’s movement, reducing the risk of collisions or accidents. The reverse alarm is especially useful in crowded environments, helping to keep both operators and others in the workspace aware of the stacker’s actions.

Rear Lighting System
The rear lighting system provides enhanced visibility for the operator when driving in low-light or night-time conditions. This system improves safety by alerting surrounding personnel of the truck’s presence, reducing the risk of accidents in busy or dimly lit work environments.

Wide or Higher Load Backrest
The option for a wider or higher load backrest improves load stability during transport, preventing items from shifting or falling. It is particularly useful when handling tall or bulky loads, ensuring the safety of both the operator and the goods being moved.

Mirror
Equipped with a mirror, this option improves rear visibility for the operator, enhancing safety when maneuvering in tight or crowded spaces.
