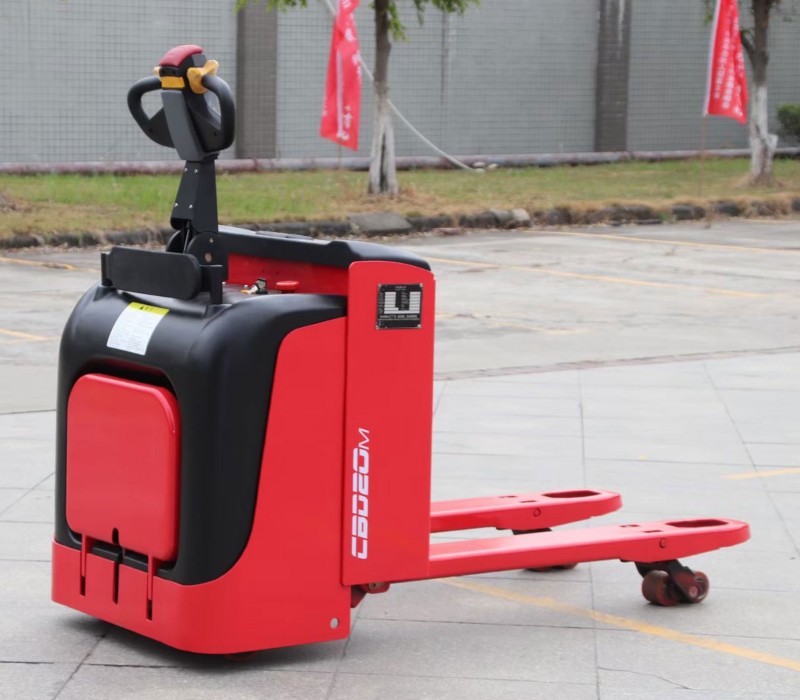

Sinolift 2.5 ton ~ 3.0 ton series electric pallet truck CBD20M used in the warehouse environment
The Stand-on Low-Lift Pallet Transporter is designed for medium to long-distance transport, loading/unloading with dock levellers, and occasional low-level order picking. Ideal for medium to high-intensity operations, it features a robust chassis and advanced AC drive technology for smooth acceleration, high efficiency, and low maintenance. With a user-friendly design, including an ergonomic shock-absorbing pedal, electronic steering, and a convenient storage compartment, it ensures operator comfort and safety. Perfect for warehouses, logistics centers, and industrial applications.
Features
Enhanced Stability and Durability: Heavy-duty steel frame with a 10 mm welded rear plate, robust forks, pull rods, and torsion bar for high wear resistance.
- Protected Motor and Components:Vertically mounted AC drive motor for easy access, shielded from splashes and debris; durable thermoplastic cover for extra protection.
- Optimized Design for Visibility:Shortened, mid-mounted handle positions the operator closer for better load visibility and precise pallet entry.
- Smooth Maneuverability:Easy to control in confined spaces, ideal for trailers, with adjustable settings to suit various applications.
- Intelligent Operation Options:Features like Intelligent Lift allow seamless transport and lifting, while the creep speed button enhances control without stopping the truck.
- Stability in Turns:Intelligent Slow Down reduces speed at 30째 angles, increasing load stability and operator confidence.
- Convenient Battery Options:Side extraction for quick battery changes, with an optional on-board charger secured within the frame.
- Efficient Maintenance:Accessible components and diagnostic display reduce downtime during routine checks.
Parameters
| Model | CBD20M | CBD25M | CBD30M | ||
| Power Type | Electric | Electric | Electric | ||
| Operation Type | Stand-on | Stand-on | Stand-on | ||
| Steering Mode | Electric Power Steering | ||||
| Load Capacity | Q | kg | 2000 | 2500 | 3000 |
| Load Center | C | mm | 600 | 600 | 600 |
| Wheelbase | y | mm | 1410 | 1410 | 1410 |
| Total Weight(With Battery) | kg | 650 | 650 | 650 | |
| Axle Load( Loaded)：rear/front | kg | 900/1750 | 1070/2080 | 1245/2425 | |
| Axle Load( Unloaded)：rear/front | kg | 545/105 | 545/105 | 545/105 | |
| Overall Length | L1/L2 | mm | 1800/2265 | 1800/2265 | 1800/2265 |
| Overall Width | W1 | mm | 810 | 810 | 810 |
| Fork Size | l/e/s | mm | 1150×170×55 | 1150×170×55 | 1150×170×55 |
| Width of Fork | b2 | mm | 540/685 | 540/685 | 540/685 |
| Ground Clearance at Fork | h3 | mm | 85 | 85 | 85 |
| Lifting Height | h2 | mm | 205 | 205 | 205 |
| Ground Clearance at center of wheelbase | m1 | mm | 55 | 55 | 55 |
| Height of Operating Handlebar(Min./Max.) | h14 | mm | 1000/1380 | 1000/1380 | 1000/1380 |
| Turning Radius(Footboard Fold/Unfold) | Wa | mm | 1660/2100 | 1660/2100 | 1660/2100 |
| Right Stack Aisle Width | Ast | mm | 2400/2840 | 2400/2840 | 2400/2840 |
| (Pallet size 1000*1200,Footboard Fold/Unfold) | |||||
| Right Stack Aisle Width | Ast | mm | 2315/2755 | 2315/2755 | 2315/2755 |
| (Pallet size 800*1200,Footboard Fold/Unfold) | |||||
| Tyre Type | Polyurethane | Polyurethane | Polyurethane | ||
| Tyre Size(Front) | mm | Φ85*70 | Φ85*70 | Φ85*70 | |
| Tyre Size(Balance Wheel) | mm | Φ115*55 | Φ115*55 | Φ115*55 | |
| Tyre Size(Driving Wheel) | mm | Φ230*75 | Φ230*75 | Φ230*75 | |
| Tyres Number front/rear(x=drive wheel) | 4/1x+2 | 4/1x+2 | 4/1x+2 | ||
| Drive Damping Method | Drive frame integral rail type spring shock absorption | ||||
| Traveling Speed（Loaded/Unloaded） | Km/h | 7.5/8 | 6.0/7 | 5.0/7 | |
| Lifting Speed（Loaded/Unloaded） | mm/s | 22/35 | 22/30 | 22/30 | |
| Lowering Speed（Loaded/Unloaded） | mm/s | 30/26 | 30/26 | 30/26 | |
| Max. Gradeability（Loaded/Unloaded） | % | 8/15 | 6/15 | 6/15 | |
| Service Brake Type | Electromagnetic/Regeneration | ||||
| Parking Brake Type | Electromagnetic | ||||
| Drive Motor Power(AC) | KW | 1.5 | 1.5 | 1.5 | |
| Pump Motor Power(DC) | KW | 0.8 | 0.8 | 2.2 | |
| Battery Voltage/Capacity K5 | V/Ah | 24V/210 | 24V/210 | 24V/240 | |
| Battery Weight | kg | 188 | 188 | 210 | |
| Controller Brand | CURTIS | CURTIS | CURTIS | ||
| Controller Model | 1232E | 1232E | 1232E | ||
| Noise Level | dB | 70 | 70 | 70 | |
Customer Minded Design
Technology That Works
- CURTIS state controllers provide smooth acceleration and seamlessdirectional control. lts regenerative Braking feature adds energy back tothe battery to improve efficiency.
- Emergency reverse device for enhanced safety.
Power and Performance
- The benefit of AC Drive motor is you’re provided faster acceleration morefatigue,Higher efficiency and lower maintenance cost due to thebrush-less design.
- High-performance hydraulic station with low noise, minimal vibration, and high efficiency.
Easy Maintenance Check
- All SINOLlFT warehouse equipments come standard with an HourMeter/Battery Discharge indicator to keep track of hours and reservebattery power at a glance.
- Maintenance-free AC drive system for optimal performance.
Operator Friendly
- A convenient storage compartment is included on our Electric Pallet Truckto hold those items that the operator needs to get the job done.
- Concealed shock-absorbing pedal design, offering high comfort during driving.
- Electronic steering system, offering lightweight control, reduced noise, and effortless maneuvering.
Structural Drawings
Structural Drawings
Product Details
Intelligent Engineering Handle
AC Motor，The energy-efficient AC motor ensures that the truck responds to the slightest command from the operator,while regeneerative braking saves energy and probides good braking capacity
Large Capacity Battery,24V/240AH battery, can work for 6 hours
The foldable stand-on pedal features a hidden shock-absorbing design that provides high operating comfort while standing. When folded, it ensures good maneuverability and a small turning radius, making it ideal for use in narrower aisles.
Media Gallery
FAQ
What are Electric Pallet Trucks ?
Electric Pallet Trucks and Stackers are powered devices designed for transporting and stacking palletized goods. The Electric Pallet Truck is primarily for horizontal movement, while the Electric Stacker can elevate loads for efficient stacking and storage.What does the maintenance of Electric Pallet Trucks involve?
Maintenance for Electric Pallet Trucks includes: Battery Care: Regularly monitor battery power and charge it to extend lifespan. Lubrication: Apply lubricant to mechanical parts to minimize wear. Fastener Inspection: Check that bolts and nuts are secure. Component Assessment: Ensure wheels, chains, and lifting systems are free from wear or damage. Cleaning: Keep equipment surfaces free of dust and debris. Parts Replacement: Replace worn components promptly based on usage.
Optional Extras
Lithium-ion Battery
Lithium-ion batteries are a game-changer in material handling equipment, offering high energy density, lightweight design, and fast charging capabilities. Compared to traditional lead-acid batteries, they provide up to 30% more efficiency, longer lifespan, and require minimal maintenance. Ideal for multi-shift operations, they support fast charging without the need for battery swaps, reducing downtime. With superior performance, compact size, and eco-friendly benefits, lithium-ion batteries are the perfect choice for modern warehouses and logistics, ensuring productivity and cost savings.
Sideway battery extraction
Designed for multi-shift operations, the high-capacity battery features a sideway extraction system on rollers, enabling quick and effortless battery changes. This ensures minimal downtime and maximizes productivity in demanding work environments.
Load backrest
When goods are stacked high, the load backrest can prevent it from falling, ensuring user and items safety. To protect the operator from falling objects, electric pallet trucks and stackers have an overhead guard. Electric Pallet Truck with load Backrest for using the boxes and taller loads to be moved safely and easily.
Automatic charger
The automatic charger provides a convenient and efficient charging solution for your electric pallet truck. It automatically manages the charging process, optimizing battery health and extending its lifespan. Perfect for busy operations, it reduces downtime and ensures your equipment is always ready for use.
Cold store protection (-30°C)
Designed for extreme cold storage environments, this electric pallet truck is equipped with specialized features such as cold store oil, anti-slip platforms, and heated batteries. Built to operate seamlessly at temperatures as low as -30°C, it ensures reliable performance and durability in harsh conditions. With enhanced insulation and robust components, this version guarantees efficiency and safety in demanding cold storage applications.
