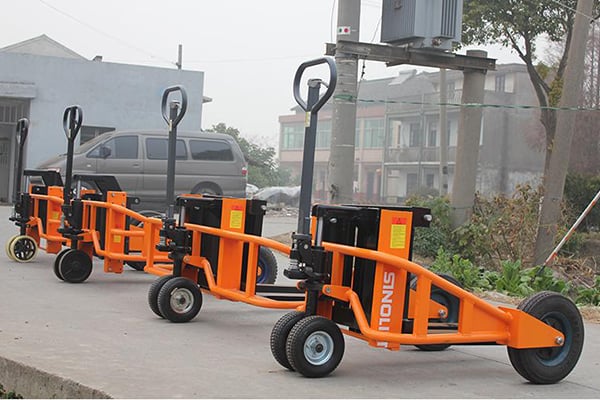

NPT10-2 Rough Terrain Pallet Truck
NPT10-2 Rough Terrain Pallet Truck – Hydraulic Lift for Uneven Surfaces
The NPT10-2 special terrain hand pallet truck is designed for use in environments where standard forklifts or pallet trucks cannot operate, such as rooftops, builders’ yards, and garden centers. With its large wheels and straddle fork design, it easily handles pallets on uneven surfaces. Its strong yet lightweight tubular steel frame ensures durability, while the hydraulic lift with an integrated hand pump provides smooth lifting. The adjustable fork width, self-lubricating bearings, and sealed bearing wheels offer enhanced maneuverability and minimal maintenance. This truck is ideal for transporting heavy loads with little effort and can be equipped with an optional parking brake for added safety.
Features
Parameters
| Model | NPT10-2 | |
| Rated Capacity | kg | 1100 |
| Length of Fork (mm) *1 | LP mm | 800 |
| Width of Straddle (Interior) | D mm | 1210 |
| Width of Straddle (Exterior) | B mm | 1470 |
| Weight | kg | 148 |
| Radius | degree | 180° |
| Handle Wheels (mm) | mm | 270 |
| Load Wheels (mm) | mm | 437 |
Product Details

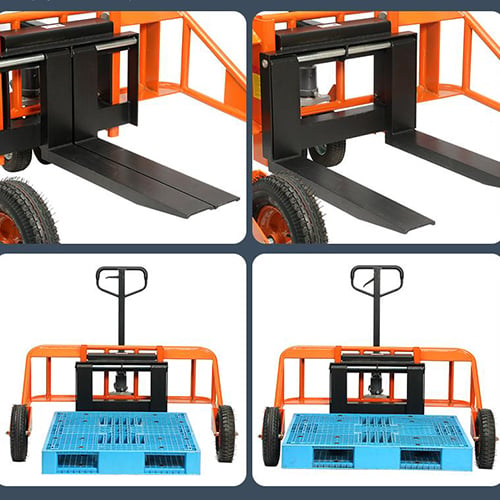

Adjustable Forks
Straddle leg forks can adjust the width of forks by moving right or left to adapt to the different sizes of pallets. The adjustable range is from 216/256mm to 680mm. The ground clearance is 70mm to carry goods easily.
Upgraded and Rubberized Handle
Ergonomic design. Improves comfort, labor-saving, and efficiency. The speed of lowering is controllable for safety.
High Load Tire
Equipped with four high-quality load tires: the front wheel is a pneumatic tire, and the rear wheel is a solid tire. It is suitable for rugged ordinary roads and is fully equipped with the abrasion resistance of engineering and agricultural tires.

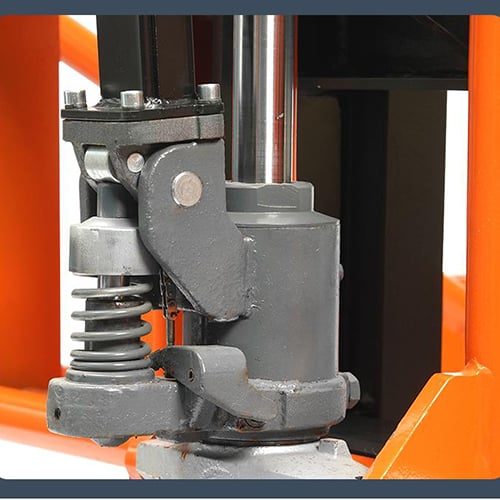

Welded Oil Pump | High-Quality Hydraulic Oil Pump
The overall sealed oil pump can lift goods steadily with no oil leakage, improving the safety performance of the whole truck. Operation is simple and durable.
Media Gallery
FAQ
-
What is a Rough Terrain Pallet Truck, and where is it used?
A Rough Terrain Pallet Truck is a heavy-duty manual or powered handling equipment designed to move palletized loads over uneven, rough, or outdoor surfaces like construction sites, gravel paths, garden centers, and rooftops. Unlike standard warehouse pallet trucks, it features large pneumatic tires and higher ground clearance for better stability on challenging terrain. -
Can Rough Terrain Pallet Trucks be used on slopes or inclines?
Manual rough terrain pallet trucks are generally not recommended for use on steep gradients due to safety risks, as the load may become unstable. Some powered models may have braking systems for better slope control. Always check the manufacturer’s guidelines before use on inclines. -
What are the key features that differentiate Rough Terrain Pallet Trucks from standard pallet trucks?
Large pneumatic tires for better traction on uneven ground. Higher ground clearance to avoid obstacles. Wider straddle legs for improved stability. Stronger, lightweight frames (often tubular steel) for durability. -
What maintenance is required for Rough Terrain Pallet Trucks?
These trucks are designed for minimal maintenance, but key checks include: Tire pressure (for pneumatic wheels). Lubrication of moving parts (if not self-lubricating). Inspecting hydraulic systems for leaks or wear. Checking bearings and axles for smooth operation. Regular maintenance ensures longevity and safe operation in tough conditions.
