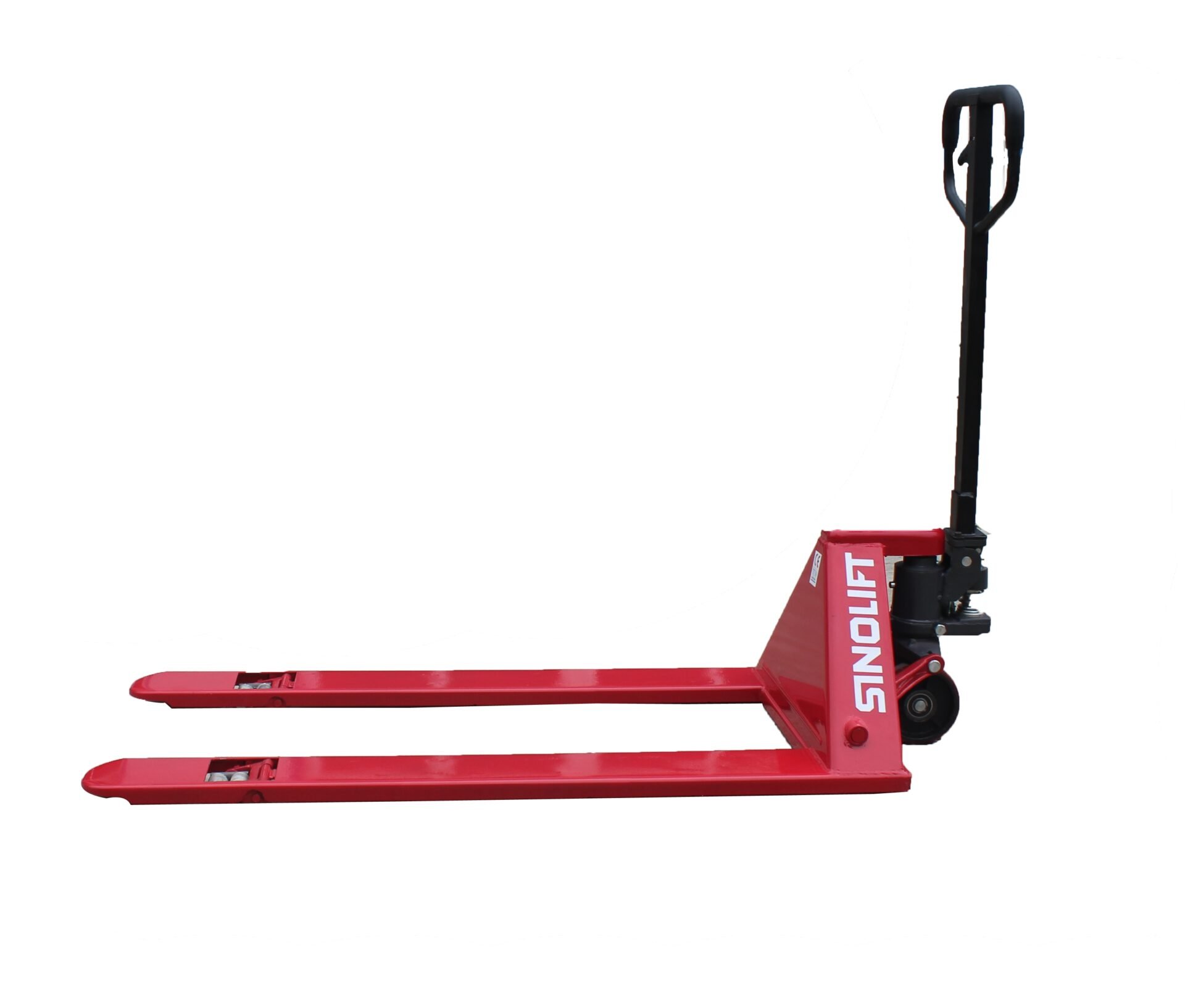

Sinolift NPSL Super Low Profile Pallet Truck – 1000kg Capacity, Ideal for Low-Clearance Pallets, Warehouse & Factory Use

The Sinolift Super Low Profile Pallet Truck, with a 1000 kg capacity, is designed for handling low-profile pallets and skids in environments where standard equipment cannot operate. Its compact design and low fork height make it ideal for use in warehouses, stores, and factories where low-clearance pallets or machinery need to be moved. Built with high-quality steel, the truck is torsion-resistant and ensures excellent durability. The fingertip lever operation for raising and lowering, along with the rubber cushioned handle grip, provides both ease of use and comfort. Additionally, the greased pivot points and chromed bearing bushes guarantee smooth maneuverability and long-lasting service.

Features

Parameters



Model

Capacity Forkwidth Forklength Min. Height Max. Height Steer wheel Load Wheel Weight
(kg) (mm) (mm) (mm) (mm) (mm) (mm) (kg)
NPSL10-58 1000 520 820 35 95 φ150*62 φ34*68 (tandem,Iron) 66
NPSL10-59 520 990 70
NPSL10-510 520 1080 71
NPSL10-511 520 1160 73
NPSL10-712 685 1230 79
NPSL25-58 2500 520 820 51 141 φ180*62 φ50*70
( Tandem,Iron)
67
NPSL25-59 520 990 71
NPSL25-510 520 1080 72
NPSL25-511 520 1150 74
NPSL25-712 685 1230 80





Product Details

Media Gallery

FAQ

  • What is a Low Profile Pallet Truck ?

    A Low Profile Pallet Truck is a specialized material handling device designed to move low-clearance pallets, skids, or machinery. With a reduced fork height, it can easily access and transport items that regular pallet trucks or forklifts cannot, making it ideal for warehouses, factories, and other environments with low-profile loads. These trucks are built for durability, featuring a strong steel frame, fingertip controls, and smooth maneuverability for efficient, manual handling of heavy items over short distances.
  • What are the key features of a Low Profile Pallet Truck?

    Key features include a low fork height for easy access to low-clearance loads, fingertip controls for easy lifting and lowering, a durable steel frame for torsion resistance, and smooth maneuverability with greased pivot points and chromed bearing bushes.
  • Is a Super Low Profile Pallet Truck easy to operate?

    Yes, the Super Low Profile Pallet Truck is designed for easy manual operation. It features a fingertip lever for lifting and lowering, as well as a rubber-cushioned handle for comfort, making it simple to maneuver even in tight spaces.

Optional Extras

Nylon

Nylon
Choose nylon pallet truck steer wheels for low rolling resistance, long life, and cost-effectiveness. Ideal for smooth surfaces and light to medium-duty applications.

Polyurethane
Choose polyurethane treaded pallet truck steer wheels for quiet operation, excellent grip, and resistance to wear. Suitable for indoor use on smooth or slightly uneven surfaces.

Steel
Choose steel steer wheels for durability in harsh working environments, such as metalworking areas or heavy-duty industrial settings. They are resistant to impact and can handle heavy loads.

Rubber
Choose solid rubber treaded steer wheels for quiet operation and smooth rolling over uneven or rough surfaces. They provide excellent shock absorption and are ideal for environments where floor protection is a priority.

Tiller

Choose a tiller that suits your habits and preferences

Adjustable Fork

The adjustable fork enables stepless width/length adjustment, allowing one pallet truck to handle all pallet types effortlessly. Eliminating the need for multiple equipment, it significantly improves mixed-pallet handling efficiency and precision – an intelligent solution for modern logistics.

Backrest

This option provides additional protection when transporting lightweight or slippery loads. The sturdy backrest design effectively prevents cargo from tipping or sliding backward, and straps can be used for added security when needed. The foldable feature ensures unimpeded operation when empty, making it an ideal accessory for enhanced stability and efficiency in material handling.

Foot Brake

The foot brake option is a rear-wheel-mounted braking device that provides instant locking through pedal operation. When the pallet truck comes to a stop, simply stepping on the pedal activates the brake, effectively preventing load shifting or unintended vehicle movement. This eliminates risks of cargo damage and enhances operator safety during material handling operations.

Hand Brake

The hand brake option provides secure stopping control for slopes and inclines, preventing unintended rolling to protect both operator and cargo. Its ergonomic lever enables quick, one-handed operation for reliable braking when needed. This safety-focused upgrade is ideal for warehouses, ramps, or uneven surfaces.

Nose Pallet Truck

This option is specifically engineered for dense stacking operations. Its unique set-back fork design enables precise single-pallet handling. The special clearance between fork tips and front rollers ensures individual pallet pickup, allowing tight inline positioning – perfect for high-density warehousing, production line logistics and other applications requiring exact stacking accuracy.
