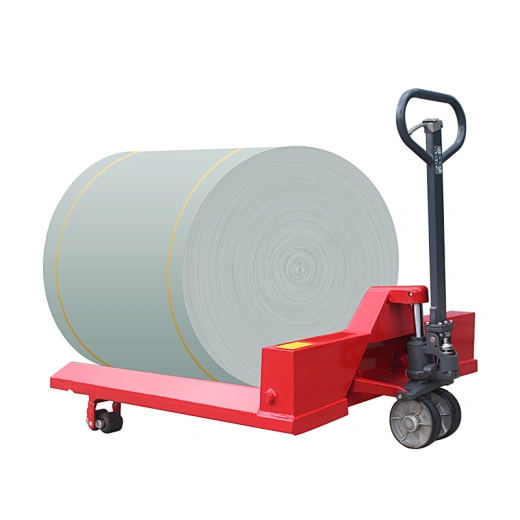

NPR series Roller Hand Pallet Truck
Sinolift China NPR hydraulic roll lift pallet jack or truck

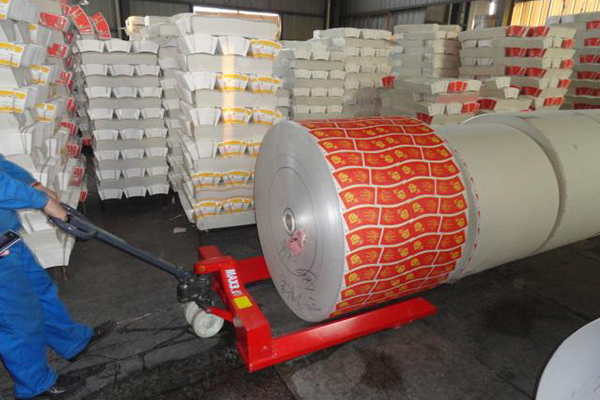

The SINOLIFT NPR pallet truck is specially designed for safely moving rolls, reels, and other cylindrical loads in paper, printing, packaging, and textile industries. Its unique triangular fork design securely holds round-shaped goods to prevent rolling. The truck comes in customizable sizes to fit different roll diameters, with a strong frame that keeps loads stable even on uneven floors. A reliable and efficient solution for handling cylindrical materials in warehouses and factories.
Features
Parameters
| Model | NPR20S | NPR20M | NPR20L | NPR20SL | NPR20SL( I ) | NPR20SL( II ) |
| Load Capacity (kg) | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 |
| Applicable Roll Diameter (mm) | Φ400-600 | Φ600-800 | Φ800-1200 | Φ1200-1600 | Φ1450-2350 | Φ1900-3200 |
| Fork Width (mm) | 760 | 850 | 1000 | 1150 | 1200 | 1350 |
| Steering Rear Wheel (mm) | Φ200×50 or Φ180×50 | Φ200×50 or Φ180×50 | Φ200×50 or Φ180×50 | Φ200×50 or Φ180×50 | Φ200×50 or Φ180×50 | Φ200×50 or Φ180×50 |
| Load Front Wheel Single(mm) | Φ78×100 | Φ78×100 | Φ78×100 | Φ78×100 | Φ78×100 | Φ78×100 |
| Load Front Wheel (Double) (mm) | Φ78×70 | Φ78×70 | Φ78×70 | Φ78×70 | Φ78×70 | Φ78×70 |
| Fork Length (mm) | 800/900/1000/1100/1150/1220–(up to 1500 (customizable) | |||||
| Self Weight (kg) | 130 | 150 | 155 | 150 | 220 | 240 |
Unique Fork Design: Specially engineered for handling tubular loads like rolls/reels, effectively preventing cargo rolling.
Customizable Dimensions: The overall length and width of the vehicle can be tailored to the diameter and length of the rolls.
Triangular Steel Plate Addition: Enhanced with triangular steel plates on flat forks to perfectly fit the curved contour of beams, enabling effortless ground-level loading and transport.
Tandem Load Frame: Prevents cargo damage or contamination caused by uneven surfaces during transport.
Ideal for Multiple Industries: Perfect for paper, printing, packaging, textile, and other sectors requiring cylindrical cargo handling.
Versatile Chassis Design: Accommodates cylindrical goods of various diameters with precision.
Product Details
Diamond-Shaped Forks
The NPR series paper roll/textile beam handling pallet truck features unique diamond-shaped forks specifically designed for transporting cylindrical or round loads, effectively preventing cargo from rolling.
High-Quality Hydraulic Cylinder
Equipped with SINOLIFT’s patented welded hydraulic cylinder, renowned for its sleek appearance and exceptional durability. The steel-mounted pump adopts an integrated hydraulic design with imported sealing rings for reliable leak-proof performance. The built-in relief valve provides overload protection.
Ergonomic Handle
A large, easy-to-use rubber-coated handle with 3-function control (raise, neutral, lower) ensures operator comfort and effortless operation.
Surface Paint
Finished with electrostatic spray coating (up to 260°C) using German-imported paint for a smoother, more corrosion-resistant, and aesthetically pleasing surface.
FAQ
What is a Manual Pallet Truck?
A manual pallet truck, commonly referred to as a manual pallet jack, pallet truck, or hand pallet truck, is a material handling tool designed for transporting palletized loads within a warehouse or similar settings. It serves as a simple and cost-effective solution for lifting and moving pallets.How Does a Manual Pallet Truck Work?
A manual pallet truck features a steel frame equipped with a pair of forks that can be inserted beneath a pallet. The forks are operated hydraulically and can be raised or lowered using a pump handle located on the truck’s handle. By pumping the handle, the hydraulic system lifts the forks, elevating the pallet off the ground. The operator can then maneuver the pallet truck by pushing or pulling it to the desired location. To lower the forks and release the pallet, the operator simply releases the hydraulic pressure by operating a release lever.
Optional Extras

Nylon
Choose nylon pallet truck steer wheels for low rolling resistance, long life, and cost-effectiveness. Ideal for smooth surfaces and light to medium-duty applications.

Polyurethane
Choose polyurethane treaded pallet truck steer wheels for quiet operation, excellent grip, and resistance to wear. Suitable for indoor use on smooth or slightly uneven surfaces.

Steel
Choose steel steer wheels for durability in harsh working environments, such as metalworking areas or heavy-duty industrial settings. They are resistant to impact and can handle heavy loads.

Rubber
Choose solid rubber treaded steer wheels for quiet operation and smooth rolling over uneven or rough surfaces. They provide excellent shock absorption and are ideal for environments where floor protection is a priority.

Tiller
Choose a tiller that suits your habits and preferences

Adjustable Fork
The adjustable fork enables stepless width/length adjustment, allowing one pallet truck to handle all pallet types effortlessly. Eliminating the need for multiple equipment, it significantly improves mixed-pallet handling efficiency and precision – an intelligent solution for modern logistics.

Backrest
This option provides additional protection when transporting lightweight or slippery loads. The sturdy backrest design effectively prevents cargo from tipping or sliding backward, and straps can be used for added security when needed. The foldable feature ensures unimpeded operation when empty, making it an ideal accessory for enhanced stability and efficiency in material handling.

Foot Brake
The foot brake option is a rear-wheel-mounted braking device that provides instant locking through pedal operation. When the pallet truck comes to a stop, simply stepping on the pedal activates the brake, effectively preventing load shifting or unintended vehicle movement. This eliminates risks of cargo damage and enhances operator safety during material handling operations.

Hand Brake
The hand brake option provides secure stopping control for slopes and inclines, preventing unintended rolling to protect both operator and cargo. Its ergonomic lever enables quick, one-handed operation for reliable braking when needed. This safety-focused upgrade is ideal for warehouses, ramps, or uneven surfaces.

Nose Pallet Truck
This option is specifically engineered for dense stacking operations. Its unique set-back fork design enables precise single-pallet handling. The special clearance between fork tips and front rollers ensures individual pallet pickup, allowing tight inline positioning – perfect for high-density warehousing, production line logistics and other applications requiring exact stacking accuracy.
