NPHD1000 NPHD1500

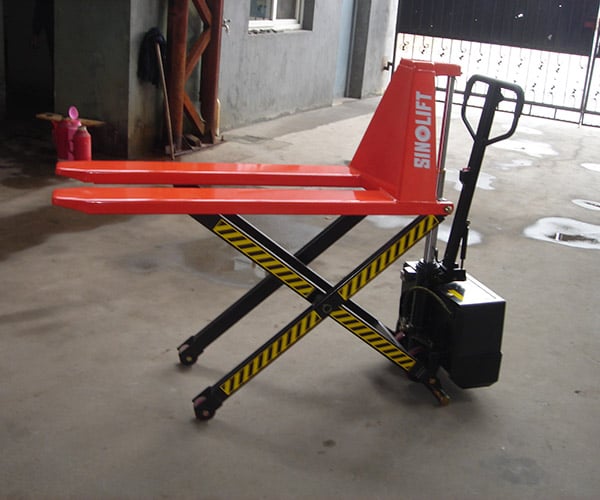

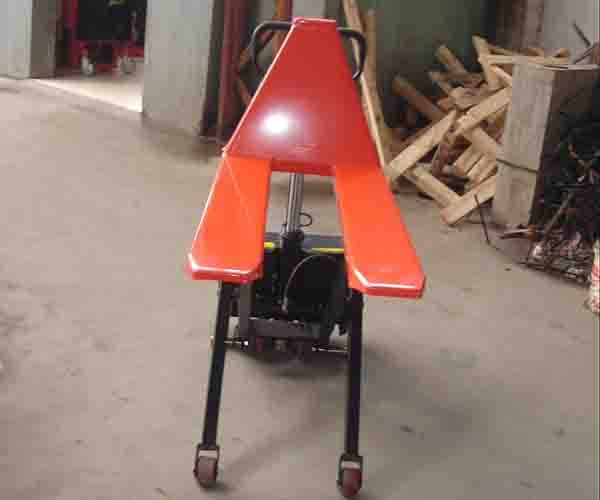

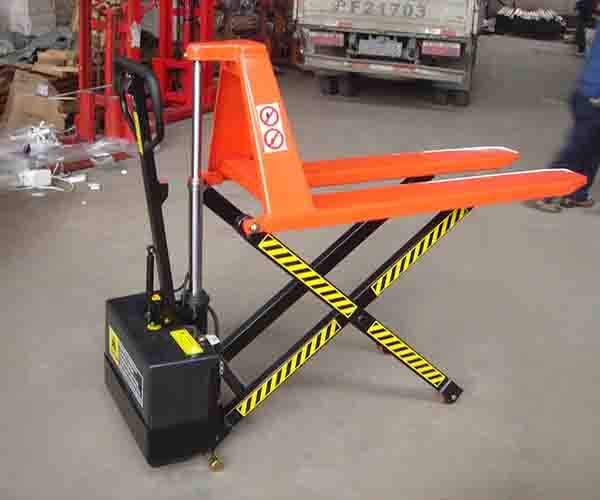

NPHD1000 NPHD1500 Electric Scissor High Lift Pallet Truck
This Pallet Jack is designed to eliminate back strain and boost efficiency when handling pallets or open-bottom containers. Its scissor lift mechanism raises loads to 800mm working height effortlessly, while the dual-cylinder design ensures smooth lifting (10-12 sec to full height). With a 1500kg capacity, overload protection, and EU-standard safety features (EN1757-4), it’s ideal for workshops, warehouses, and production lines (e.g., feed printing, punch presses). The ergonomic handle, non-slip legs (auto-brake above 420mm), and maintenance-free battery make it a durable, user-friendly solution.
Features
This comprehensive video showcases all the powerful features of our professional-grade electric pallet jack:
Key Product Highlights:
1500kg Heavy-Duty Capacity – Effortlessly handles full pallet loads
800mm Ergonomic Lift Height – Perfect working height for loading/unloading
Smart Safety System – Auto-brake and overload protection
Advanced Dual-Cylinder Design – Smooth lifting in just 10-12 seconds
Maintenance-Free Operation – Long-lasting battery with power indicator
Perfect for warehouses, factories, logistics, and retail storage.

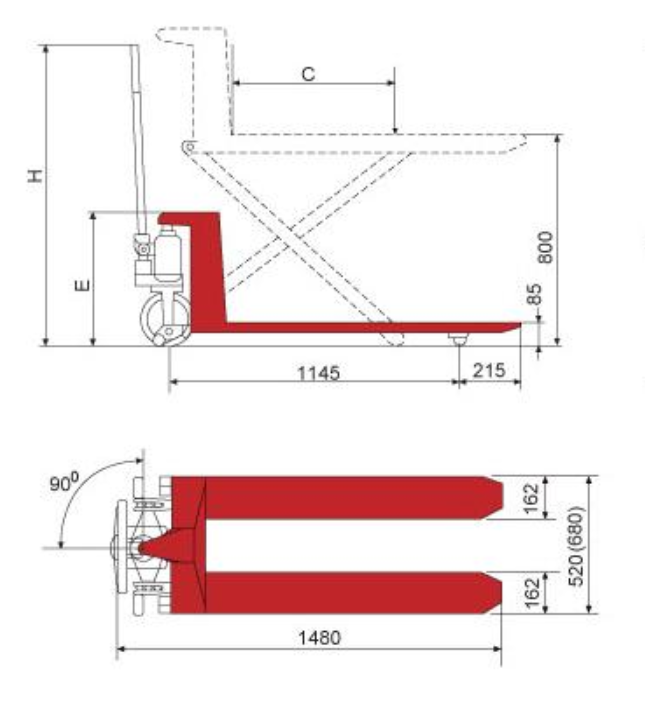

Parameters
| Model | NPHD1000 | NPHD1500 | |
| Capacity | (kg) | 1000 | 1500 |
| Lowest Fork Height | (mm) | 85 | 85 |
| Max. Fork Height | (mm) | 800 | 800 |
| Fork Length X Fork Width | (mm) | 1140X520 or 1140X680 | 1100X520 or 1100X680 |
| Diameter of front wheel | (mm) | Ø75X50 | Ø75X50 |
| Diameter of Rear Wheel | (mm) | Ø150X50 | Ø150X50 |
| Lifting time in Full Range(s) | 10/12 | 18 | |
| Size of Fork | (mm) | 162X50 | 162X50 |
| Descending Speed | (m/s) | <0.1 | <0.1 |
| Motor Working Voltage | (v) | 12 | 12 |
| Battery Volgage | (v) | 12 | 12 |
| Electricity Volume | (A/h) | 63 | 63 |
| Working pressure of Pump Station | (Mpa) | 15 | 21 |
| Imput/output Voltage of Charger | (v) | 200-240/12 | 115-230/12 |
| Service Weight | (kg) | 118 / 128 | 145 / 155 |
| Max. Charging Current of Charger | (A) | 10 | 10 |
| Packing Details | 4pcs/crate, crate size:193X60X72, 108pcs/20″ | 4pcs/crate, crate size:193X76X72, 84pcs/20″ |
Product Details

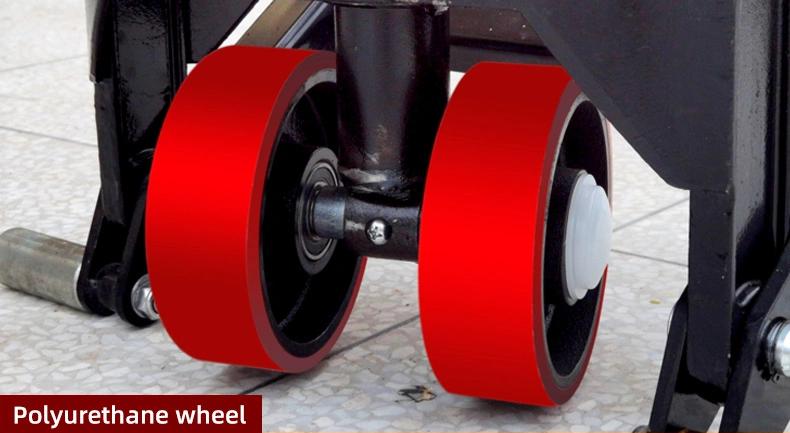

Polyurethane Wheels
Durable polyurethane casters ensure smooth movement with minimal driving resistance, lightweight design, and excellent wear resistance—protecting floors while extending service life.

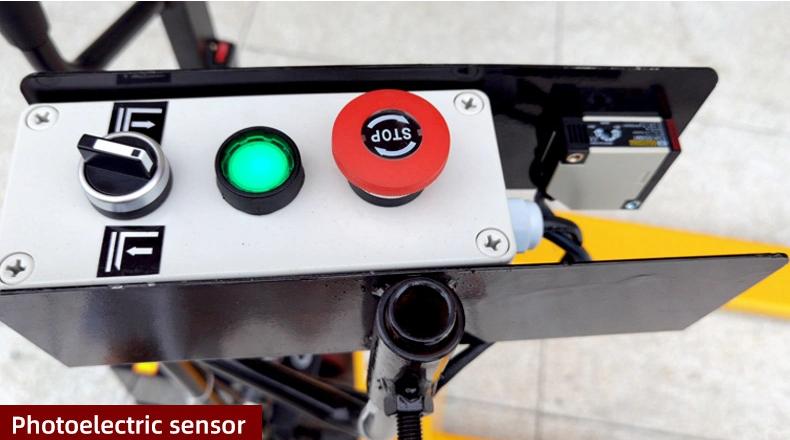

Photoelectric Sensor
Features a light-sensitive hauler with optional automatic or manual height adjustment modes for flexible operation based on your needs.

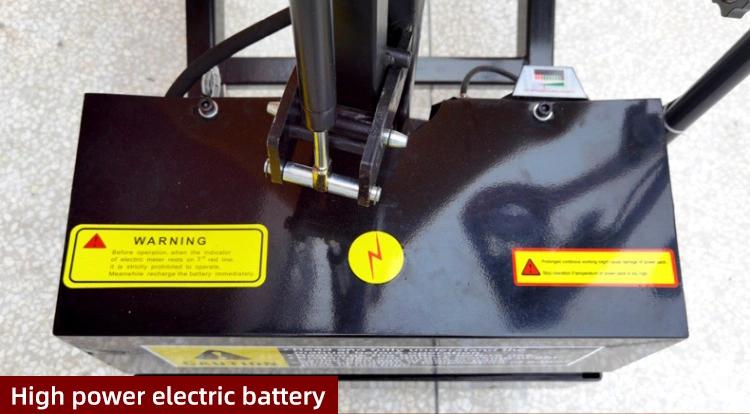

High-Power Battery
Delivers strong driving force with long-lasting performance, ensuring reliable and efficient power for heavy-duty tasks.

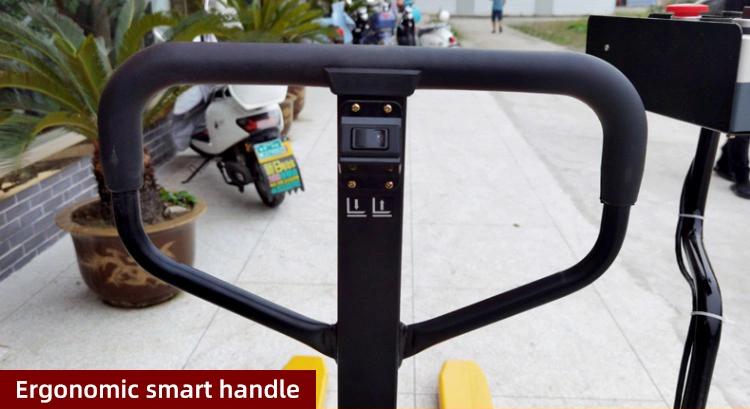

Ergonomic Smart Handle
Designed for comfort with a non-slip coating, intuitive lifting controls, and adjustable speed for precise, steady, and safe load handling.
FAQ
-
What types of containers or pallets can it handle?
It works with standard pallets, skids, and open-bottom containers (e.g., wire mesh, plastic bins). The high-lift design eliminates the need for manual lifting or extra equipment. -
How does the safety system prevent accidents?
It features overload protection, a patented handle lock (prevents accidental lowering), and auto-brake forks (activate above 420mm). Complies with EN1757-4 safety standards. -
What is an Electric Scissor Lift Pallet Truck?
An Electric Scissor Lift Pallet Truck is a battery-powered material handling tool that combines a standard pallet jack with a lifting mechanism. It allows operators to raise and lower pallets to an ergonomic working height, reducing manual lifting. It is commonly used in warehouses, retail spaces, and distribution centers for loading, unloading, and order processing. Unlike manual pallet jacks, it operates with minimal physical effort. -
What are the key benefits of using an Electric Scissor Lift Pallet Truck?
• Reduces physical strain by eliminating manual lifting. • Improves efficiency with quick height adjustments for different tasks. • Enhances safety by preventing back injuries and load instability. • Versatile—works in shops, warehouses, and tight spaces. • Saves time compared to traditional manual pallet jacks. -
Where is an Electric Scissor Lift Pallet Truck most useful?
• Warehouses & logistics – for loading/unloading pallets at optimal heights. • Retail stores – stocking shelves without heavy lifting. • Manufacturing – moving materials between workstations. • Cold storage – reducing worker fatigue in low-temperature environments. • Order fulfillment – scanning and labeling at ergonomic heights.
Optional Extras

Li-on Battery (Lithium Phosphate Battery)
Opt for the Lithium Phosphate Battery (LiFePO₄) to power your electric pallet truck. This advanced battery technology delivers high safety, long cycle life, and stable performance, making it ideal for demanding operations. With fast charging, minimal maintenance, and eco-friendly benefits, it’s a perfect upgrade for multi-shift applications in modern warehouses and logistics.

Load backrests
When goods are stacked high, the load backrest can prevent it from falling, ensuring user and items safety. To protect the operator from falling objects, electric pallet trucks and stackers have an overhead guard. Electric Pallet Truck with load Backrest for using the boxes and taller loads to be moved safely and easily.

With scale (printer
Electric pallet truck equipped with an integrated scale and printer allows operators to weigh loads while moving them and print labels on the spot. Perfect for logistics and warehousing, it enhances efficiency and accuracy in inventory management.

Cold store version
Designed for extreme cold storage environments, this electric pallet truck is equipped with specialized features such as cold store oil, anti-slip platforms, and heated batteries. Built to operate seamlessly in freezing conditions, it ensures reliable performance and durability in harsh environments. With enhanced insulation and robust components, this version guarantees efficiency and safety in demanding cold storage applications.

Smart Charger for Electric Pallet Trucks
This intelligent charger automatically optimizes voltage and current with multi-stage charging technology to maximize battery performance and lifespan. Featuring advanced protection systems, it delivers fast, safe, and efficient charging tailored for industrial applications. The smart charging management reduces downtime while maintaining optimal battery health. An ideal solution to keep your electric pallet trucks operating at peak efficiency.

Wheels
PU wheels
Polyurethane wheels have a lower rolling resistance, making them easier to pull compared to nylon wheels. They are ideal for use on soft floor types like laminated and polished tile, as they are long-lasting and durable.
Nylon wheels
Nylon wheels, on the other hand, are better suited for harsh and debris-filled environments. They are tougher, more durable and less likely to suffer damage than polyurethane wheels when used in cold storage, wet, or rough floors.

Customized Fork Solutions
This electric pallet truck offers fully customizable fork options, including lengths, widths, extensions, and carriages, tailored to meet specific operational needs. Whether handling heavy loads, oversized items, or unique shapes, these features ensure optimal performance, safety, and efficiency. Additionally, customized stall shelves maximize storage space and improve organization, streamlining your operations for versatile material handling in any workspace.

pin-code handle
The key pad access handle integrates a digital keypad into the handle, requiring a unique PIN to operate the truck. This ensures only authorized personnel can access the equipment, adding a layer of security against unauthorized use. Ideal for warehouses, manufacturing facilities, or shared settings, it prevents theft, misuse, and errors. Combined with Personal PIN-CODE settings, it offers a secure yet user-friendly access control solution for authorized operators.
