NAR

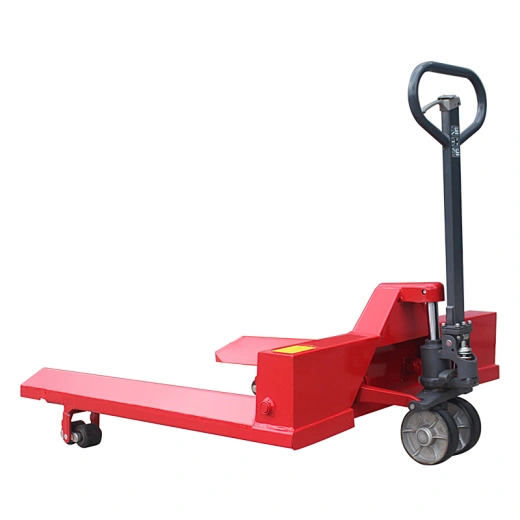

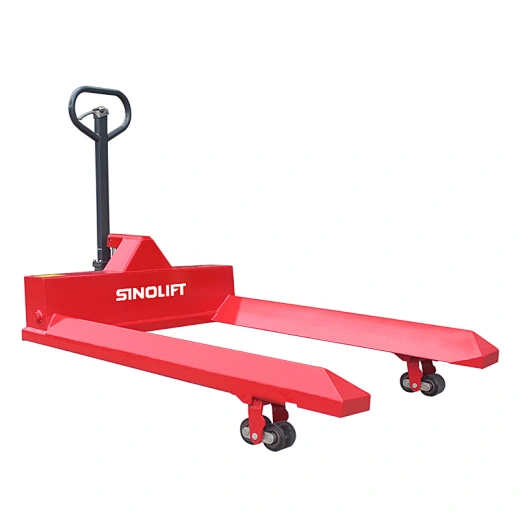

Sinolift China NAR hydraulic roll lift pallet jack or truck

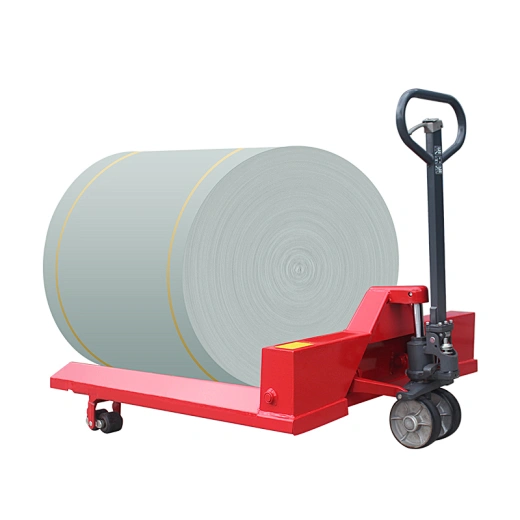

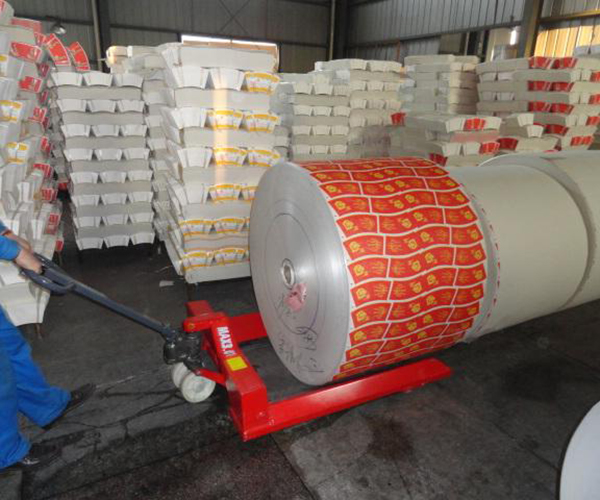

The SINOLIFT NAR pallet truck is specially designed for safely moving rolls, reels, and other cylindrical loads in paper, printing, packaging, and textile industries. Its unique triangular fork design securely holds round-shaped goods to prevent rolling. The truck comes in customizable sizes to fit different roll diameters, with a strong frame that keeps loads stable even on uneven floors. A reliable and efficient solution for handling cylindrical materials in warehouses and factories.
Features
Parameters
| Model | NPR20S | NPR20M | NPR20L | NPR20SL | NPR20SL( I ) | NPR20SL( II ) |
| Load Capacity (kg) | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 |
| Applicable Roll Diameter (mm) | Φ400-600 | Φ600-800 | Φ800-1200 | Φ1200-1600 | Φ1450-2350 | Φ1900-3200 |
| Fork Width (mm) | 760 | 850 | 1000 | 1150 | 1200 | 1350 |
| Steering Rear Wheel (mm) | Φ200×50 or Φ180×50 | Φ200×50 or Φ180×50 | Φ200×50 or Φ180×50 | Φ200×50 or Φ180×50 | Φ200×50 or Φ180×50 | Φ200×50 or Φ180×50 |
| Load Front Wheel Single(mm) | Φ78×100 | Φ78×100 | Φ78×100 | Φ78×100 | Φ78×100 | Φ78×100 |
| Load Front Wheel (Double) (mm) | Φ78×70 | Φ78×70 | Φ78×70 | Φ78×70 | Φ78×70 | Φ78×70 |
| Fork Length (mm) | 800/900/1000/1100/1150/1220–(up to 1500 (customizable) | |||||
| Self Weight (kg) | 130 | 150 | 155 | 150 | 220 | 240 |
Structural Drawings
Product Details

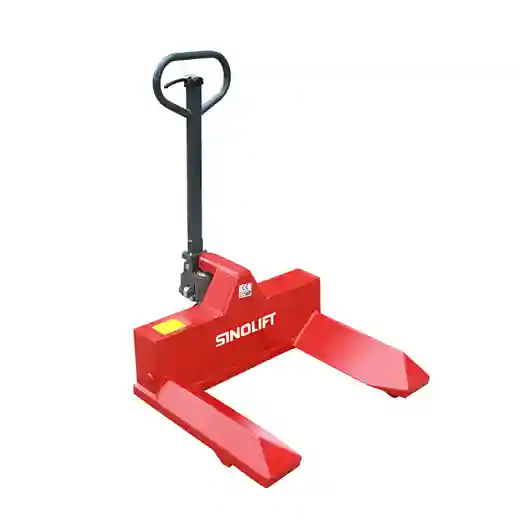

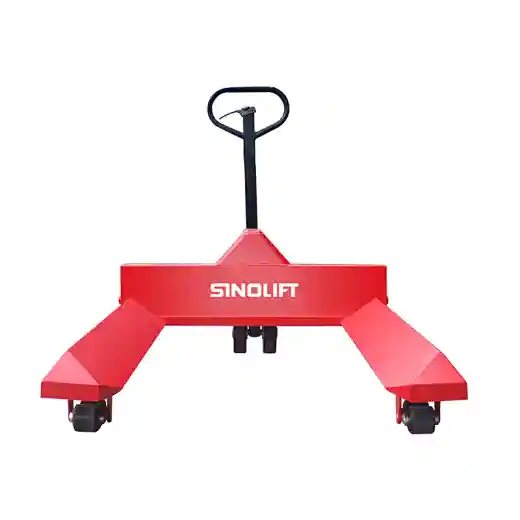

Diamond-Shaped Forks
The NPR series paper roll/textile beam handling pallet truck features unique diamond-shaped forks specifically designed for transporting cylindrical or round loads, effectively preventing cargo from rolling.

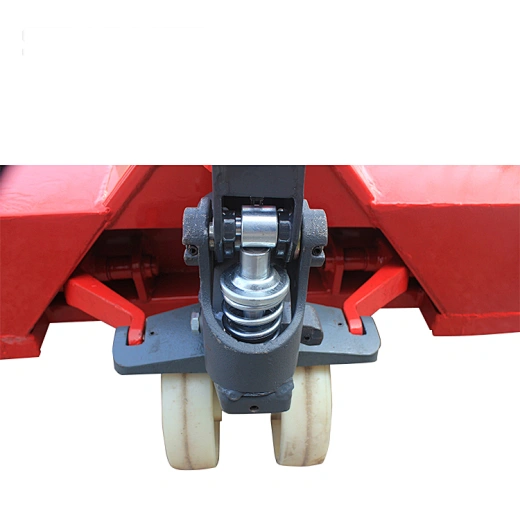

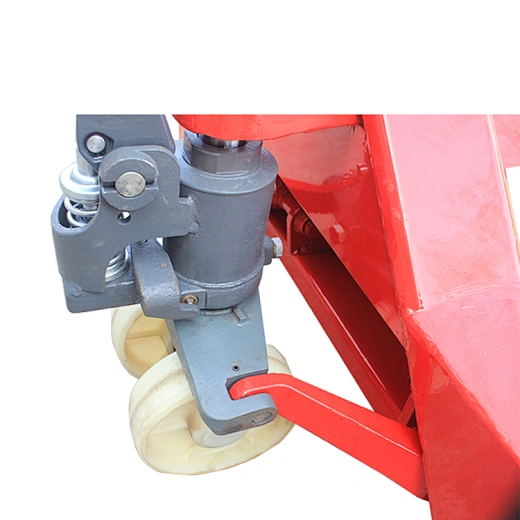

High-Quality Hydraulic Cylinder
Equipped with SINOLIFT’s patented welded hydraulic cylinder, renowned for its sleek appearance and exceptional durability. The steel-mounted pump adopts an integrated hydraulic design with imported sealing rings for reliable leak-proof performance. The built-in relief valve provides overload protection.
Ergonomic Handle
A large, easy-to-use rubber-coated handle with 3-function control (raise, neutral, lower) ensures operator comfort and effortless operation.

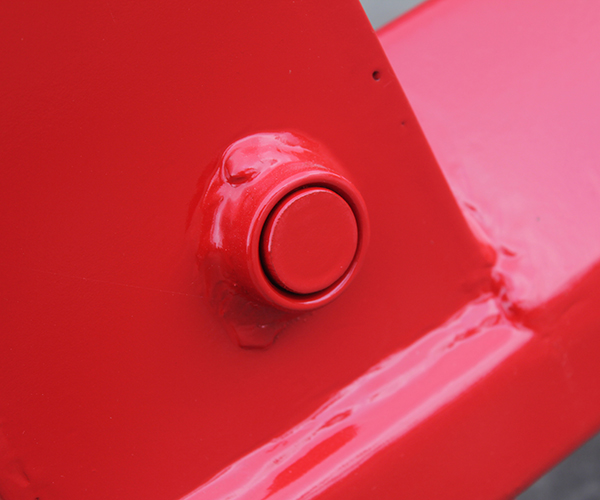

Surface Paint
Finished with electrostatic spray coating (up to 260°C) using German-imported paint for a smoother, more corrosion-resistant, and aesthetically pleasing surface.
Media Gallery
FAQ
What is a Manual Pallet Truck?
A manual pallet truck, commonly referred to as a manual pallet jack, pallet truck, or hand pallet truck, is a material handling tool designed for transporting palletized loads within a warehouse or similar settings. It serves as a simple and cost-effective solution for lifting and moving pallets.How Does a Manual Pallet Truck Work?
A manual pallet truck features a steel frame equipped with a pair of forks that can be inserted beneath a pallet. The forks are operated hydraulically and can be raised or lowered using a pump handle located on the truck’s handle. By pumping the handle, the hydraulic system lifts the forks, elevating the pallet off the ground. The operator can then maneuver the pallet truck by pushing or pulling it to the desired location. To lower the forks and release the pallet, the operator simply releases the hydraulic pressure by operating a release lever.
Optional Extras
Nylon
Choose nylon pallet truck steer wheels for low rolling resistance, long life, and cost-effectiveness. Ideal for smooth surfaces and light to medium-duty applications.
Polyurethane
Choose polyurethane treaded pallet truck steer wheels for quiet operation, excellent grip, and resistance to wear. Suitable for indoor use on smooth or slightly uneven surfaces.
Steel
Choose steel steer wheels for durability in harsh working environments, such as metalworking areas or heavy-duty industrial settings. They are resistant to impact and can handle heavy loads.
Rubber
Choose solid rubber treaded steer wheels for quiet operation and smooth rolling over uneven or rough surfaces. They provide excellent shock absorption and are ideal for environments where floor protection is a priority.

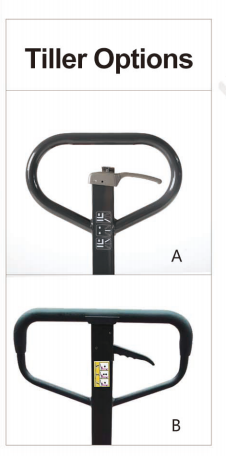

Tiller
Choose a tiller that suits your habits and preferences

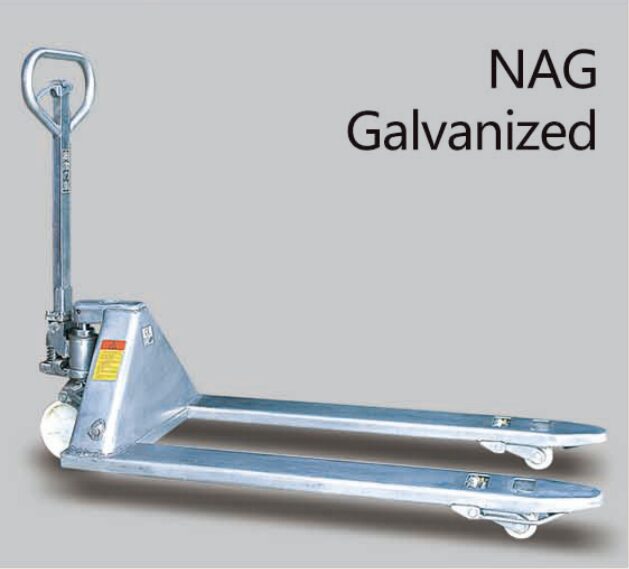

zinc or hot-galvanized type
The galvanized hand pallet truck is designed with a protective zinc coating, providing exceptional resistance to corrosion. It is an ideal choice for wet or humid environments, ensuring durability and reliable performance in challenging conditions.
Stainless steeltype
The stainless steel hand pallet truck is crafted from high-quality stainless steel, offering superior corrosion resistance and hygiene. Perfect for environments requiring strict cleanliness standards, such as food processing or pharmaceutical industries, it combines strength with easy maintenance.
equipped with scale
This handy tool combines a manual pallet truck with a built-in weighing scale, letting you move and weigh loads at the same time. Perfect for warehouses or logistics, it saves time and boosts efficiency by handling and measuring in one go.
Heavy duty type
For even heavier demands, this upgraded pallet truck offers a 5-tonne capacity and a reinforced 8mm steel frame, making it stronger and more robust than standard models. Designed for demanding environments like warehouses and logistics, it handles heavier loads with ease while ensuring durability and safety. Perfect for industrial-grade challenges!
load bracket
It’s an essential accessory designed to secure and stabilize loads during transport. It ensures safe and efficient handling of goods, making it ideal for moving irregular or unstable items with ease.
