MX0608 MX0610 Mechanical Pallet Truck
MX0608 MX0610 Mechanical Pallet Truck - Image 2
MX0608 MX0610 Mechanical Pallet Truck - Image 3
MX0608 MX0610 Mechanical Pallet Truck - Image 4

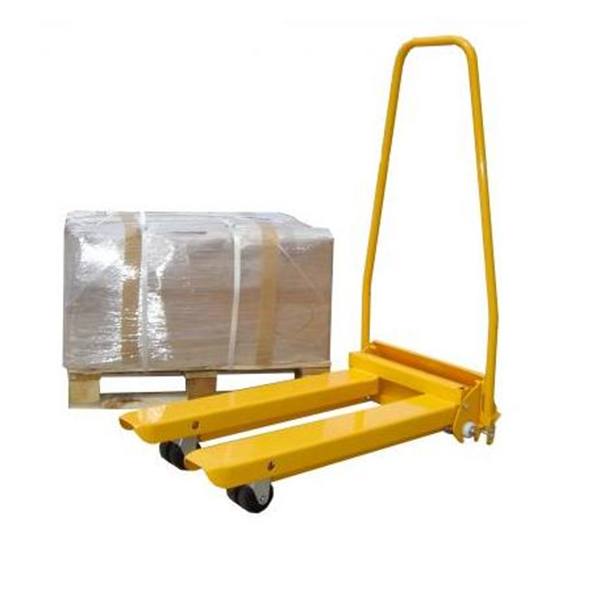

MX0608 MX0610 Mechanical Pallet Truck

MX0608 MX0610 Mechanical Pallet Truck – No Hydraulic Pump, Lightweight & Foldable Hand Pallet Jack for Warehouse, Retail, Pharmacy

MX0608 MX0610 Mechanical Pallet Truck is a fully mechanical mini pallet truck designed for lightweight loads under 300kg. Its innovative leverage principle allows effortless lifting by simply pulling the handle, eliminating the need for hydraulic pumping. Weighing only 25kg, it features a compact folding design for easy transport, storage, and wall mounting. Perfect for tight spaces, its minimal turning radius ensures superior maneuverability. Ideal for grocery stores, pharmacies, offices, schools, and hospitals, it offers a leak-proof, maintenance-free alternative to traditional hydraulic trucks.

Contact Us
Download

Features

Parameters

Model MX0608 MX0610
Capacity (kg) 300 300
Lift Height (mm) 145 145
Lowered Height (mm) 85 85
Fork Width Outside (mm) 420 420
Fork Length (mm) 800 1100
Width of Single Fork (mm) 120 120
Total Height (mm) 200/1160 200/1160
Steer Wheel Dia.xWid (mm) Ø80×40 Ø80×40
Load Wheel Dia.xWid (mm) Ø80×40 Ø80×40
Overall Size LxW (mm) 1030×420 1330×420
Net Weight (kg) 25 30

Product Details

Thanks to the low weight, the mechanic lifter can easily be carried to other floors, put into a truck or a car.

When not in use, it can be hung up on a hook on the wall.

No hydraulic pump to repair, no oil can leak out, and no seals to replace.

Media Gallery

FAQ

  • How does this mechanical pallet truck work without hydraulics?

    Our innovative lever-action system uses mechanical advantage to lift loads up to 300kg - simply pull the handle backward to raise the forks, with no pumping required. This makes it faster and more reliable than hydraulic models.

  • What's the weight capacity and recommended usage?

    With a 300kg (660 lbs) capacity, this pallet jack is perfect for light-duty applications in retail stores, pharmacies, offices, and small warehouses where space is limited.

  • How portable and storable is this pallet truck?

    Weighing only 25kg (55 lbs) with a foldable design, it's easy to carry between floors, load into vehicles, or hang on wall hooks when not in use - ideal for delivery drivers and multi-location businesses.

  • What maintenance does this require compared to hydraulic pallet jacks?

    Unlike hydraulic models, there's no oil to leak, no pump to fail, and no seals to replace. Just keep the wheels clean and occasionally check for loose components.
