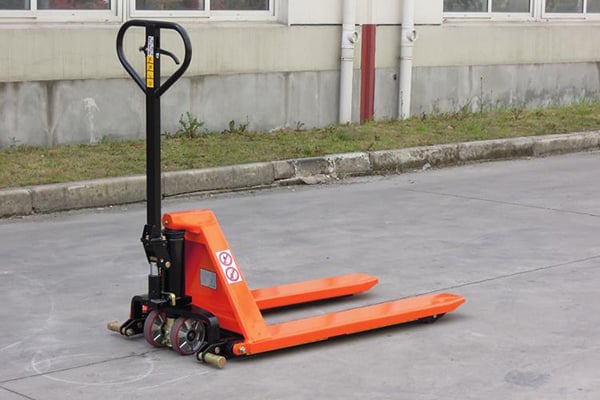

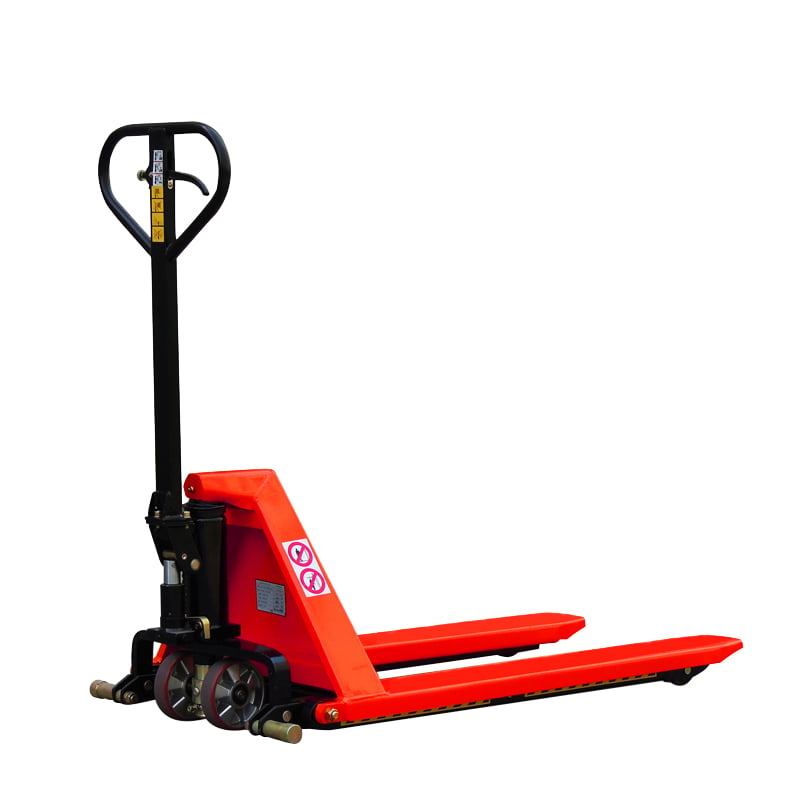

HLT series Scissors Lift Pallet Truck
HLT series Scissors Lift Pallet Truck - Image 2
HLT series Scissors Lift Pallet Truck - Image 3

HLT series Scissors Lift Pallet Truck

HLT Scissor Lift Pallet Truck with 1500kg Capacity – Manual Pallet Jack & Lifting Platform

The Scissor Lift Pallet Truck combines the functionality of a standard pallet jack with the ability to lift palletized goods to a height of 800mm. With a 1500kg lifting capacity, it is ideal for warehouses and distribution centers where goods need to be transported and lifted to work surfaces or tables. The design ensures easy handling of open-bottom pallets and skids, allowing products to be slid off without manual lifting. This versatile tool enhances efficiency by reducing physical strain and improving workflow in material handling.

Contact Us
Download

Features

The HLT Scissor Lift Pallet Truck is a versatile manual handling solution that combines the mobility of a pallet jack with the elevation function of a lifting platform. With a robust lifting capacity of 1500kg and a maximum lift height of 800mm, it is ideal for use in warehouses, workshops, and distribution centers. This equipment is especially useful for lifting palletized goods to ergonomic working heights, reducing the need for manual bending or lifting, and thus minimizing operator fatigue and injury risk.

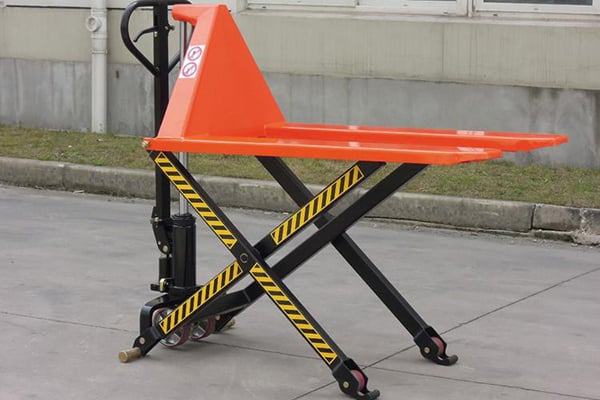

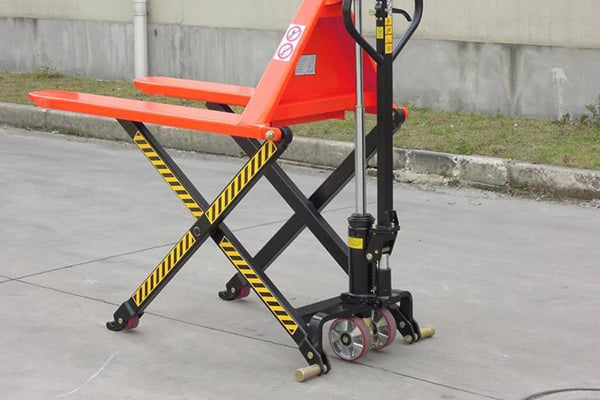

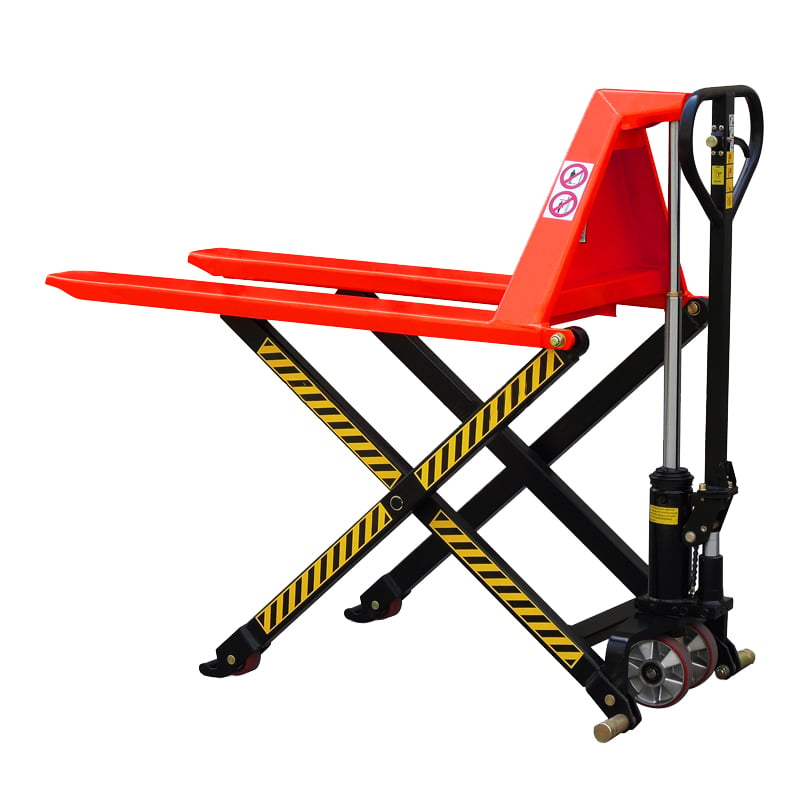

Its scissor-lift mechanism allows smooth and stable elevation, making it perfect for handling open-bottom pallets and skids. The design enables goods to be easily positioned or transferred onto workbenches or tables without additional effort. Built for efficiency and safety, the truck improves workflow by allowing operators to transport and elevate loads in a single tool. Whether used for packing, assembly, or loading tasks, the HLT Scissor Lift Pallet Truck significantly streamlines material handling operations.

Parameters

Model HLT1000 HLT1500 HLT1000A HLT1500A
Min. Height kg 1000 1500 1000 1500
Tiller Steel Steel Robber Coated Robber Coated
Quick Lift Manual Transfer Manual Transfer Automatic Transfer Automatic Transfer
Min.Fork Height mm 85 85 85 85
Max.Fork Height mm 800 800 800 800
Size of Fork mm 162×50 162×50 162×50 162×50
Length of Fork    L mm 1140 1100 1140 1100
Width over Fork mm 520/680 520/680 520/680 520/680
Net Weight kg 105/112 118/125 105/112 118/125
Fork Rollers mm Φ75×50 Φ75×50 Φ75×50 Φ75×50
Steering Wheel（PU or Nylong） mm Φ150×50 Φ150×50 Φ150×50 Φ150×50
Steering Wheel (Rubber) mm Φ180×50 Φ150×50 Φ180×50 Φ150×50
Pallet Packing Size（520mm）4pcs/Pallet mm 1930×580×720 1930×580×720 1930×580×720 1930×580×720
Pallet Packing Size（680mm）4pcs/Pallet mm 1930×740×720 1930×740×720 1930×740×720 1930×740×720
Pcs/20″ container 120/96 120/96 120/96 120/96

Product Details

Media Gallery

FAQ

  • How Does a Scissor Lift Pallet Truck Work?

    A Scissor Lift Pallet Truck operates using a hydraulic or mechanical lifting system housed within a scissor-like frame. When the operator pumps the handle, the hydraulic mechanism raises the platform, lifting the pallet to the desired height. This is made possible by the crisscrossed "scissor" design, which expands and contracts as the lift operates. The truck functions like a traditional pallet jack for easy movement. Once the pallet is in place, the operator can adjust the height to slide goods off the pallet or load them onto a work surface without bending or lifting manually. The lift mechanism ensures smooth, controlled elevation, allowing even heavy loads to be moved safely and efficiently, while reducing physical strain on workers.

  • How to Use a Scissor Lift Pallet Truck？

    Position the Truck: Insert the forks under the pallet, ensuring proper alignment and stability. Lower the Forks (if needed): Use the hydraulic handle to lower the forks to the ground level. Lift the Pallet: Pump the hydraulic handle to raise the pallet to the desired height. Check Load Stability: Ensure the pallet is stable and the load is evenly distributed. Transport the Load: Once lifted, move the truck by pushing or pulling the handle. Lower the Pallet: Slowly release the valve to lower the pallet smoothly. Place the Load: After lowering, position the pallet where needed.

  • What should I pay attention to when using a scissor lift pallet truck?

    Ensure Proper Fork Insertion: Make sure the forks are fully inserted under the pallet and the load is balanced. Check Load Stability: Ensure the load is evenly distributed to prevent tipping. Lift Gradually: Pump the handle slowly to lift the pallet steadily. Monitor Weight Capacity: Do not exceed the truck's maximum load capacity. Avoid Overhead Obstacles: Ensure there are no obstacles when lifting. Use on Flat Surfaces: Operate on smooth, level ground to ensure stability. Check Hydraulic System: Regularly inspect the hydraulic system for leaks or damage. Move Carefully: Avoid sharp turns or sudden movements when transporting. Lower Slowly: Release the hydraulic valve slowly to lower the load smoothly. Inspect Regularly: Check the forks and wheels for wear or damage.

Optional Extras

Nylon

Nylon
Choose nylon pallet truck steer wheels for low rolling resistance, long life, and cost-effectiveness. Ideal for smooth surfaces and light to medium-duty applications.

Polyurethane
Choose polyurethane treaded pallet truck steer wheels for quiet operation, excellent grip, and resistance to wear. Suitable for indoor use on smooth or slightly uneven surfaces.

Steel
Choose steel steer wheels for durability in harsh working environments, such as metalworking areas or heavy-duty industrial settings. They are resistant to impact and can handle heavy loads.

Rubber
Choose solid rubber treaded steer wheels for quiet operation and smooth rolling over uneven or rough surfaces. They provide excellent shock absorption and are ideal for environments where floor protection is a priority.

Tiller

Choose a tiller that suits your habits and preferences

Adjustable Fork

The adjustable fork enables stepless width/length adjustment, allowing one pallet truck to handle all pallet types effortlessly. Eliminating the need for multiple equipment, it significantly improves mixed-pallet handling efficiency and precision – an intelligent solution for modern logistics.

Backrest

This option provides additional protection when transporting lightweight or slippery loads. The sturdy backrest design effectively prevents cargo from tipping or sliding backward, and straps can be used for added security when needed. The foldable feature ensures unimpeded operation when empty, making it an ideal accessory for enhanced stability and efficiency in material handling.

Foot Brake

The foot brake option is a rear-wheel-mounted braking device that provides instant locking through pedal operation. When the pallet truck comes to a stop, simply stepping on the pedal activates the brake, effectively preventing load shifting or unintended vehicle movement. This eliminates risks of cargo damage and enhances operator safety during material handling operations.

Hand Brake

The hand brake option provides secure stopping control for slopes and inclines, preventing unintended rolling to protect both operator and cargo. Its ergonomic lever enables quick, one-handed operation for reliable braking when needed. This safety-focused upgrade is ideal for warehouses, ramps, or uneven surfaces.

Nose Pallet Truck

This option is specifically engineered for dense stacking operations. Its unique set-back fork design enables precise single-pallet handling. The special clearance between fork tips and front rollers ensures individual pallet pickup, allowing tight inline positioning – perfect for high-density warehousing, production line logistics and other applications requiring exact stacking accuracy.
