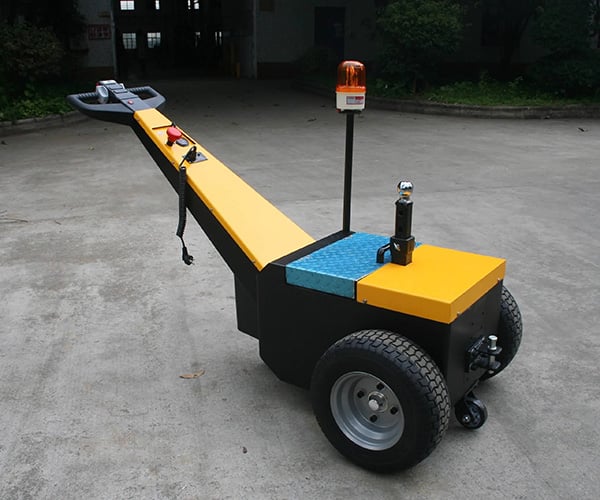

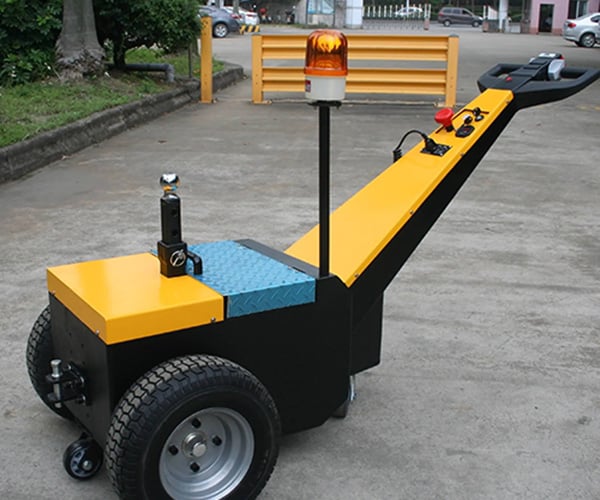

ETP Series Mini Walkie Electric Tugger
ETP Series Mini Walkie Electric Tugger
ETP Series Mini Walkie Electric Tugger

ETP Series Mini Walkie Electric Tugger

  1. Our product has been designed to cater to the logistics handling and traction needs of hospitals, factories, aviation and other fields. It can effectively facilitate various traction requirements with ease.
  2. The man-machine integrated control handle of our product offers flexible operation and boasts multiple functions, making it a must-have for any establishment.
  3. A maintenance-free battery and permanent magnet traction motor has been incorporated in our product to provide enhanced traction power, thereby improving the overall functionality.
  4. 4. With a Curtis computer controller imported from the US, our product provides greater torque, faster speed, higher reliability, better thermal performance and smoother acceleration, making it a highly desirable choice for businesses of all sizes.
Contact Us
Download

Features

The Electric Walkie Tow Tractor boasts a rugged design while delivering smooth operation. We offer several tow tractor models, such as standard hitch type tug tow tractors, grip tow tractors, and tuggers with vertical lift for transporting racks and carts. Our Electric Tugs are highly versatile and built to your customized specifications to ensure compatibility with your specific hitch type. Let us know your application needs and we will deliver a tailored solution.

Parameters

model ETP200 ETP250 ETP350 ETP400
Power form electric
Operation type Walking
Load kg 2000 2500 3500 4000
Rated traction n 480 720 800 800
Wheelbase mm 630 630 680 680
Weight (including battery) kg 275 295 336 345
Tyre type, driving wheel/bearing wheel Rubber solid core/pu
Drive wheel size (diameter X width) mm 2xφ406×150 2xφ406×150 2xφ375×115 2xφ375×115
Bearing wheel size (diameter X width) mm φ125×50 φ150×50 φ150×50 φ150×50
Front wheelbase, drive end mm 460 460 575 575
Rear track, load end mm / / / /
Vehicle height mm 1100 1100 1230 1230
Minimum/maximum height of handle lever in operating position mm 915 915 1000 1000
Traction coupler height range mm 220/400 225/400 225/360 225/360
length mm 1705 1735 1915 1915
width mm 760 760 805 805
Ground clearance at the center of the wheelbase mm 100 100 100 100

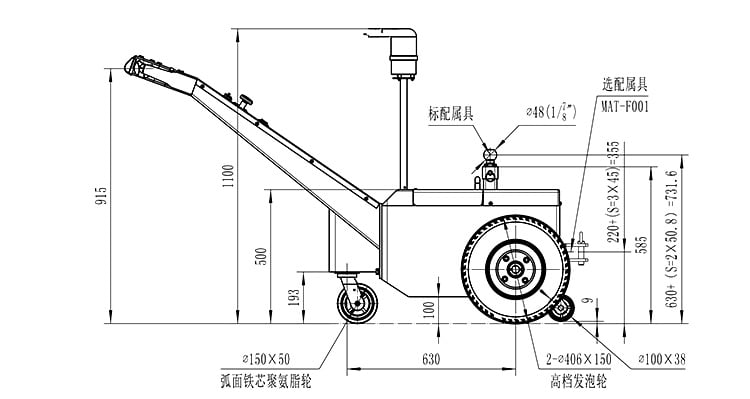

Structural Drawings

Structural Drawings

Structural Drawings

Structural Drawings

Product Details

Multi-function console

Multi-function console

The multi-function console provides the operator with full control over the machine's various features and functions, including speed control, direction control, and other features.

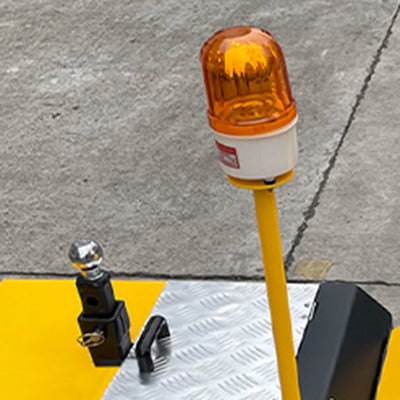

Warning light

Warning light

The warning light provides advanced safety features by alerting others in the area of the machine's presence, reducing the risk of accidents or collisions.

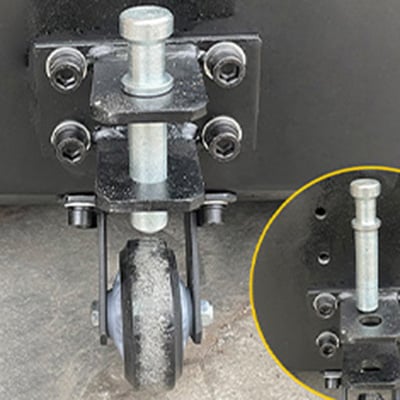

Reinforced hook

Reinforced hook

The reinforced hook ensures the machine can attach and tow heavy loads safely and efficiently, without the risk of breaking or damage to either the machine or the towed equipment.

Comfortable handle

Comfortable handle

The comfortable handle allows for smooth and precise control over the machine, ensuring it can be maneuvered safely and effectively, even over rough or uneven terrain.

Media Gallery

FAQ

  • 1. What is a Walkie Tugger?

    This solution may be compact, but it packs a powerful punch. With a towing capacity of up to 1500kgs., the walkie tugger may seem like a modest solution at first glance. However, it is equipped with a range of tow hitch options and caster wheels that ensure you reach maximum productivity when transporting loads.

  • 2 What are Electric Tow Tractors Not Designed For?

    Forklifts are the go-to solution for vertical lifting and stacking tasks. Designed to handle loads at varying heights, forklifts are essential in warehouses, distribution centers, and construction sites. Their ability to lift heavy loads and place them on racks or shelves makes them a versatile tool in environments where space optimization is crucial.

  • 3. Is an Industrial Tow Tractor Right for You?

    When it comes to heavy duty towing, Toyota’s Industrial Tow Tractor is the right solution for the job. This versatile piece of equipment is applicable in a variety of industries, such as general manufacturing, warehousing, or the beverage industry. on level surfaces, this high-capacity tugger can easily tow even the heaviest of loads. With its power steering capability, you can seamlessly transport items from point A to point B, so you never have to worry about getting the job done.

Optional Extras

  1. Industrial Pin:
    This heavy-duty pin is equipped with an r-clip, ensuring the secure movement of all types of loads and trollies. It is the ideal choice if your loads come with a hitching eye.
  1. Tow Ball:
    Our tow balls are designed to be attached to your mover, enabling the use of standard trailer hitches fitted onto your loads.
  1. Adjustable Double Sided Hook-ADSH:
    Our double-sided hook, adjustable to meet the standards of the user, comes with a simple channel and pin attachment. It is constructed with durability in mind for long-term use. Adjustable width tension placements and precise height adjustment ensure customized use.
  1. Rubber Bumper Attachment-RPB19:
    The rubber bumper attachment transforms the capabilities of our electric-powered tugger. It can be easily converted between a tugger and pusher, maximizing workplace utility. The bolt-on design makes it simple to remove or install, and the panel pattern style provides impact resistance when pushing heavy, large items. An extended mounting plate and wide rectangular design with pre-drilled mounting holes and installation hardware are included.
  1. Steel Spring Loaded Manual Channel Lift-MCLA:
    The easily attachable spring loaded channel lift comes with multiple ports, enabling the user to customize height and length and adapt to a variety of needs. Its robust construction ensures long-term use and it is adaptable to a range of heights.
  1. Steel Multi Mover-MM:
    Designed to manoeuvre products from area to area, the steel multi-mover attachment features a multiple length design that offers a range of uses. It can be easily attached to help push or pull items, and its simple channel and pin attachment, adjustable width tension placements, and precise height adjustment make it easy to use and customize.
  1. Steel Adjustable Single Side Hook Double Ball Hitch-SABH:
    This attachable ball hitch enables the user to utilize the electric-powered tug with a currently hitched item. Our durable, compact design includes a simple and easy placement process, ensuring maximum productivity with easy transfer. Its robust construction ensures long-term use in a variety of settings.
