  5. 1.5ton 2 ton Narrow aisle CQD15B 20B Electric Reach stand Forklift Truck

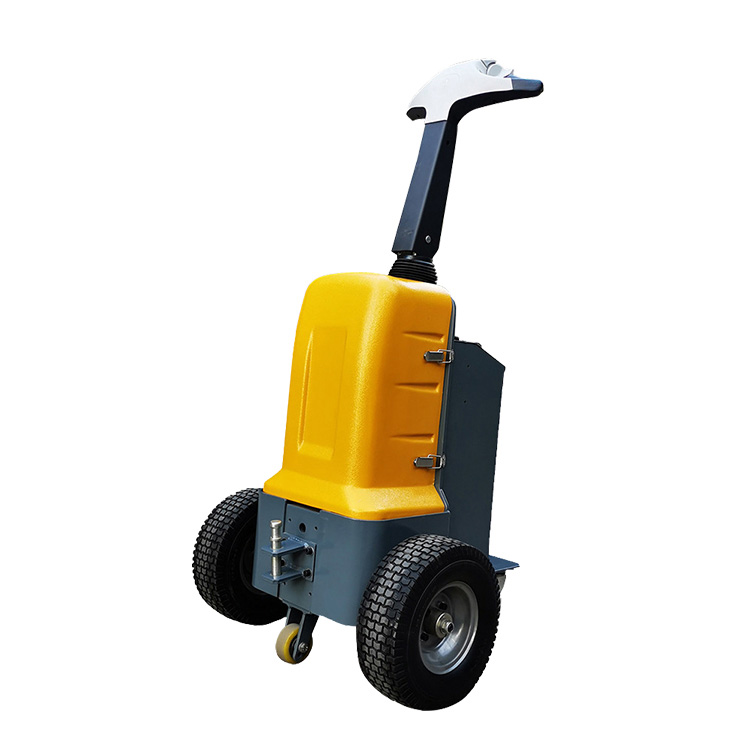

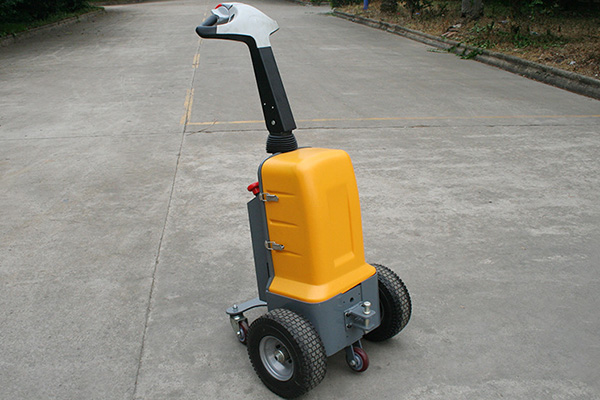

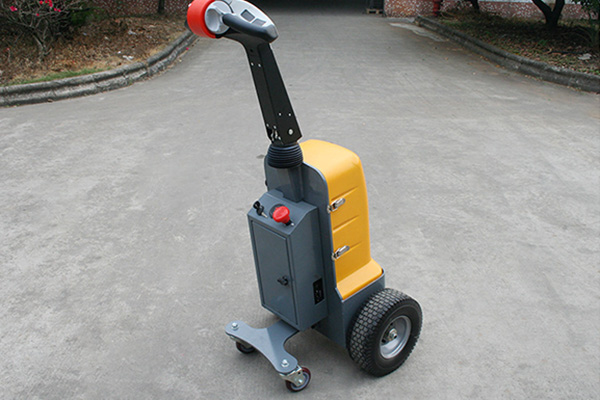

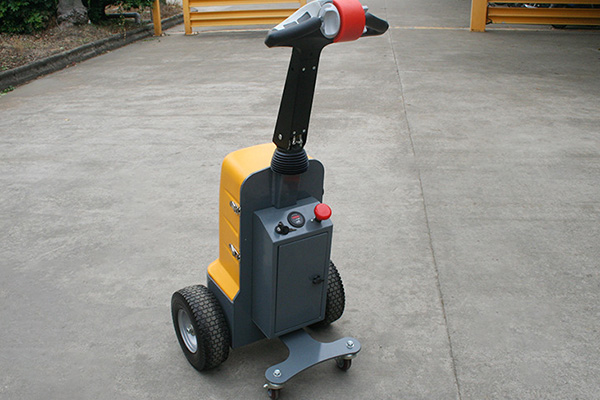

ETM Series Mini Walkie Electric Tugger
ETM Series Mini Walkie Electric Tugger
ETM Series Mini Walkie Electric Tugger
ETM Series Mini Walkie Electric Tugger

ETM Series Mini Walkie Electric Tugger

Our product boasts a range of exceptional features that make it well-suited for logistics handling and traction in diverse fields, such as hospitals, factories, and aviation. The feature set is designed to facilitate various traction requirements and ensure efficient operation.

The man-machine integrated control is highly flexible, delivering seamless operation with many functions. Our product features a maintenance-free battery and a permanent magnet traction motor that provide greater traction power. This feature set ensures optimal performance, compact size, flexible operation, noise-free operation, environmental protection, and easy maintenance.

Contact Us
Download

Features

With a load capacity ranging from 500-1500kg and a load speed of 6km/h, the SINOLIFT ETM Tow Tractor is the ideal solution for your batch order picking and horizontal transportation needs. Our energy efficient ACR System coupled with its durable construction, ensures the ETM Tow Tractor can handle high volume transport and order picking tasks with ease.

Equipped with a 24V/40AH or 24V/70AH battery, our tow tractor can meet the needs of various workloads. Its ergonomic design ensures optimal comfort for the operator even during extended shifts.

Parameters

ModelETM50ETM100ETM150
Drive unitBatteryBatteryBattery
Operator typepedestrianpedestrianpedestrian
Load capacityKg50010001500
Rated drawbar pullN200450650
Wheelbasemm315650345
BatteryV/AH24V/40AH24V/70AH24V/70AH
ChargeV/AH24V/8A24V/10A36V/10A
Drive motorV/AH24V/400W24V/800W36V/1200W
Drive wheelmmφ260x90mmφ310x127mmφ310x127mm
Rear wheelmmφ75x32mmφ75x32mmφ100x32mm
Unload speedKm/h7km/h7km/h7km/h
Load speedKm/h6km/h6km/h6km/h
Load gradability%5%5%5%
Unload gradability%10%10%10%
WeightKg90120180

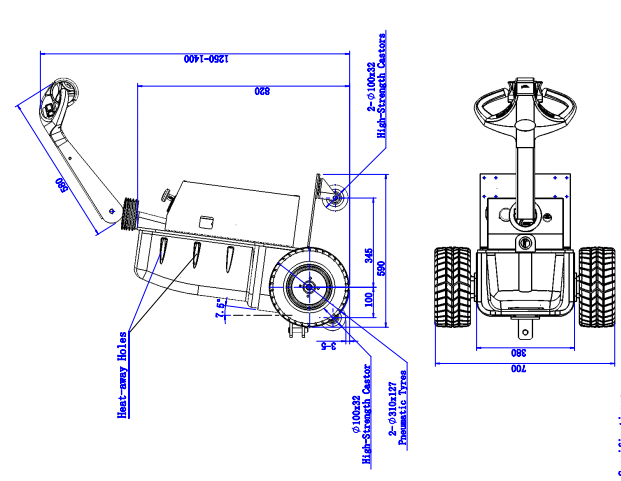

Structural Drawings

Structural Drawings

Product Details

Solid rubber wheels

Solid rubber wheels

The solid rubber wheels provide excellent traction and stability, ensuring the machine can tow heavy loads over various terrain types.

Good shock absorption

Good shock absorption

The good shock absorption system reduces vibrations and shocks during operation, enhancing operator comfort and reducing the risk of damage to the loaded equipment.

Running smoothly

Running smoothly

The TOW TUGGER runs smoothly, ensuring a consistent and predictable movement while towing heavy loads.

Easy to charge

Easy to charge

The TOW TUGGER is designed to be easily charged, with a simple and accessible charging port that allows for fast and efficient charging of the battery, ensuring the machine can operate for extended periods of time without interruption.

Media Gallery

FAQ

  • 1. What is a Walkie Tugger?

    This solution may be compact, but it packs a powerful punch. With a towing capacity of up to 1500kgs., the walkie tugger may seem like a modest solution at first glance. However, it is equipped with a range of tow hitch options and caster wheels that ensure you reach maximum productivity when transporting loads.

  • 2 What are Electric Tow Tractors Not Designed For?

    Forklifts are the go-to solution for vertical lifting and stacking tasks. Designed to handle loads at varying heights, forklifts are essential in warehouses, distribution centers, and construction sites. Their ability to lift heavy loads and place them on racks or shelves makes them a versatile tool in environments where space optimization is crucial.

  • 3. Is an Industrial Tow Tractor Right for You?

    When it comes to heavy duty towing, Toyota’s Industrial Tow Tractor is the right solution for the job. This versatile piece of equipment is applicable in a variety of industries, such as general manufacturing, warehousing, or the beverage industry. on level surfaces, this high-capacity tugger can easily tow even the heaviest of loads. With its power steering capability, you can seamlessly transport items from point A to point B, so you never have to worry about getting the job done.

Optional Extras

  1. Industrial Pin:
    This heavy-duty pin is equipped with an r-clip, ensuring the secure movement of all types of loads and trollies. It is the ideal choice if your loads come with a hitching eye.
  1. Tow Ball:
    Our tow balls are designed to be attached to your mover, enabling the use of standard trailer hitches fitted onto your loads.
  1. Adjustable Double Sided Hook-ADSH:
    Our double-sided hook, adjustable to meet the standards of the user, comes with a simple channel and pin attachment. It is constructed with durability in mind for long-term use. Adjustable width tension placements and precise height adjustment ensure customized use.
  1. Rubber Bumper Attachment-RPB19:
    The rubber bumper attachment transforms the capabilities of our electric-powered tugger. It can be easily converted between a tugger and pusher, maximizing workplace utility. The bolt-on design makes it simple to remove or install, and the panel pattern style provides impact resistance when pushing heavy, large items. An extended mounting plate and wide rectangular design with pre-drilled mounting holes and installation hardware are included.
  1. Steel Spring Loaded Manual Channel Lift-MCLA:
    The easily attachable spring loaded channel lift comes with multiple ports, enabling the user to customize height and length and adapt to a variety of needs. Its robust construction ensures long-term use and it is adaptable to a range of heights.
  1. Steel Multi Mover-MM:
    Designed to manoeuvre products from area to area, the steel multi-mover attachment features a multiple length design that offers a range of uses. It can be easily attached to help push or pull items, and its simple channel and pin attachment, adjustable width tension placements, and precise height adjustment make it easy to use and customize.
  1. Steel Adjustable Single Side Hook Double Ball Hitch-SABH:
    This attachable ball hitch enables the user to utilize the electric-powered tug with a currently hitched item. Our durable, compact design includes a simple and easy placement process, ensuring maximum productivity with easy transfer. Its robust construction ensures long-term use in a variety of settings.
