  5. 1.5ton Reach Truck Stacker

EPT20K

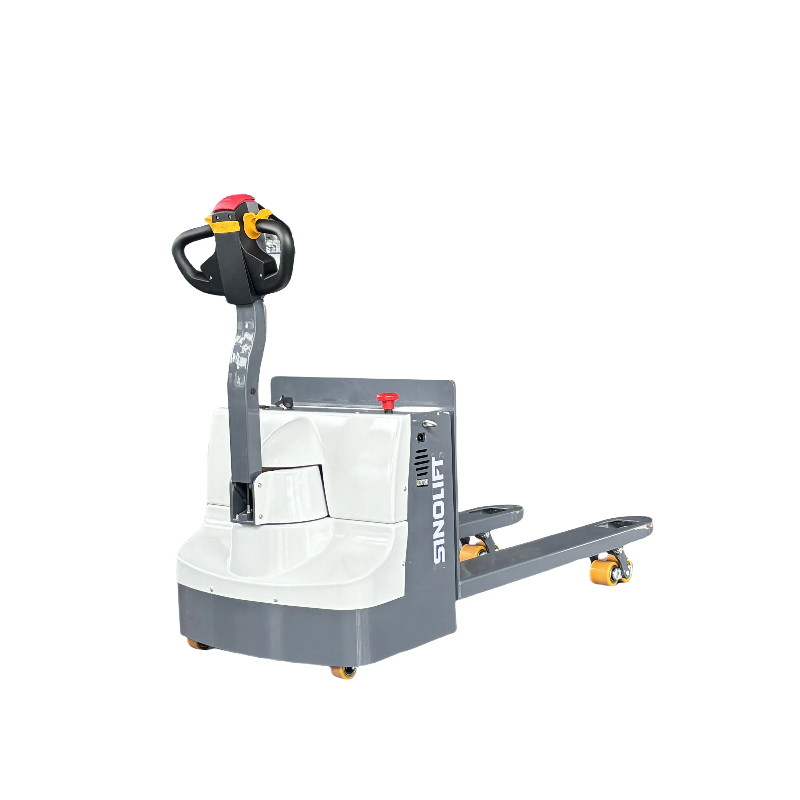

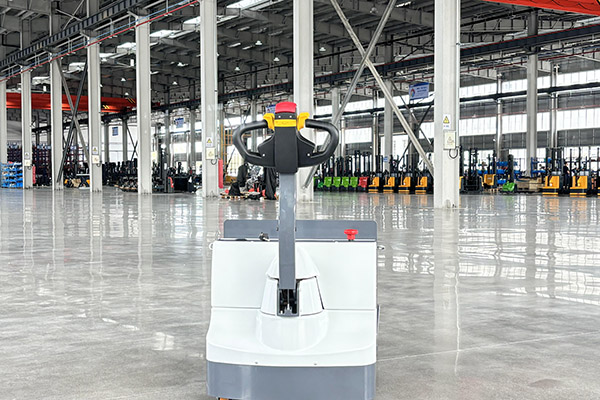

Sinolift EPT20K AGM Battery Operated Pallet Truck

EPT20K is designed for heavy-duty material handling in tight spaces, offering unmatched maneuverability with a 2000kg/4400lbs load capacity. Its AC drive motor and maintenance-free AGM batteries ensure reliable, low-cost operation, while ergonomic features like easy pallet entry/exit and polyurethane tires enhance operator comfort and efficiency. Ideal for warehouses, docks, and cold storage facilities, this robust truck features high ground clearance, regenerative braking, and a durable steel frame for long-term performance in demanding environments.

Features

Watch the video to explore the Sinolift EPT20K Electric Pallet Truck in detail. This 360° showcase highlights its robust construction, ergonomic design, and efficient performance.

Key Features:

  •  2000kg (4400lbs) load capacity for heavy-duty handling
  •  Optional Gel/AGM battery systems for maintenance-free operation
  •  Compact design with excellent maneuverability in tight spaces
  •  AC motor technology for reliable, brushless performance
  •  Durable steel construction with easy-access maintenance points
  •  Ideal for warehouse, dock, and industrial applications where reliability and efficiency matter.

Parameters

Manufacturer SINOLIFT
ModelEPT20K
Power TypeAGM
Type of OperationPedestrian
Load capacity/Rated loadqkg2000
Load Center Distancecmm   600
Alex centre to Fork Facexmm948
Wheelbaseymm1265
Total Weight (with battery)kg340
Axle Load(laden):Drive side/Load-bearing sidekg
Axle Load(unladen):Drive Side/Load-bearing sidekg
Tyre TypePolyurethane
Tyre Size ( Load Wheel)mmφ80×60
Tyre Size (Drive Wheel)mmφ210×70
Tyre Size (Caster Wheel)mmφ70×36
Wheels Quantity, front/rear (x=Driving Wheels)4/1x+2
Track Width,Front,Driving Sideb10mm520
Track Width,Rear,Loading Sideb11mm400
Lifting Heighth3mm190
Height of Tiller Arm in Driving Position, Min.- Max.h14mm950-1250
Lowered Heighth13mm85
Overall Lengthl1mm1620
Length to Fork Facel2mm460
Overall Widthb1mm680
Fork Dimensions/e/lmm54x160x1150(1220)
Fork Spread Widthb5mm560/680
Ground Clearance at Center of Wheelbase (Min)m2mm27
Aisle Width for Pallets 1000×1200 CrosswaysAstmm2415
Aisle Width for Pallets 800×1200 CrosswaysAstmm2315
Turning RadiusWamm1430
Traveling Speed (Laden/Unladen)km/h2.5/3
Lifting Speed (Laden/Unladen)mm/s35/45
Lowering Speed (Laden/Unladen)mm/s50/40
Max.Gradient Performance (Laden/Unladen)%5/8
Service Brake Type       Electromagnetic
Driving Motor Rating (DC) S2 60minkw0.75
Lifting Motor Rating S3 15%kw0.8
Battery TypeAcid
Battery Voltage/Capacity K5V/Ah24/100 (518*276*240mm)
Battery Weightkg54
ChargerV/A24/15
Controller ModelDC
Steering TypeMechanical
Sound level atdriver’s ear according to EN 12 053dB70



Product Details

Media Gallery

FAQ

  • What is an AGM Battery?

    An AGM (Absorbent Glass Mat) battery features a fiberglass-sealed electrolyte design, ensuring spill-proof and vibration-resistant operation. Compared to GEL batteries, it delivers 30% higher instantaneous current, making it responsive to high-power hydraulic systems in electric pallet trucks. It also maintains over 80% capacity at -20°C, making it suitable for cold-chain logistics and other low-temperature operations.
  • What are the benefits of an AGM Battery?

    AGM (Absorbent Glass Mat) batteries provide excellent performance for electric pallet trucks with these key advantages: • High Power Output - Delivers strong instantaneous current for quick response in hydraulic lifting systems. • Excellent Temperature Resistance - Maintains reliable performance in cold environments, making it ideal for cold storage applications. • Maintenance-Free Operation - Features spill-proof and vibration-resistant construction that requires no watering while providing dependable power.
  • How does the regenerative braking system work?

    The regenerative braking recovers energy during deceleration and feeds it back to the battery, improving efficiency and extending battery life. This feature also ensures smoother stops.
  • Can the EPT20K operate in cold storage environments?

    Yes, the EPT20K is available with a cold store configuration (optional), ensuring reliable performance in low-temperature conditions like refrigerated warehouses.
  • Is the EPT20K easy to maintain?

    Yes, its brushless AC motor requires minimal maintenance, and key wear parts are easily accessible. The sealed AGM batteries also eliminate watering needs.

Optional Extras

Li-on Battery (Lithium Phosphate Battery)

Opt for the Lithium Phosphate Battery (LiFePO₄) to power your electric pallet truck. This advanced battery technology delivers high safety, long cycle life, and stable performance, making it ideal for demanding operations. With fast charging, minimal maintenance, and eco-friendly benefits, it’s a perfect upgrade for multi-shift applications in modern warehouses and logistics.

Load backrests

When goods are stacked high, the load backrest can prevent it from falling, ensuring user and items safety. To protect the operator from falling objects, electric pallet trucks and stackers have an overhead guard. Electric Pallet Truck with load Backrest for using the boxes and taller loads to be moved safely and easily.

With scale (printer

Electric pallet truck equipped with an integrated scale and printer allows operators to weigh loads while moving them and print labels on the spot. Perfect for logistics and warehousing, it enhances efficiency and accuracy in inventory management.

Cold store version

Designed for extreme cold storage environments, this electric pallet truck is equipped with specialized features such as cold store oil, anti-slip platforms, and heated batteries. Built to operate seamlessly in freezing conditions, it ensures reliable performance and durability in harsh environments. With enhanced insulation and robust components, this version guarantees efficiency and safety in demanding cold storage applications.

Smart Charger for Electric Pallet Trucks

This intelligent charger automatically optimizes voltage and current with multi-stage charging technology to maximize battery performance and lifespan. Featuring advanced protection systems, it delivers fast, safe, and efficient charging tailored for industrial applications. The smart charging management reduces downtime while maintaining optimal battery health. An ideal solution to keep your electric pallet trucks operating at peak efficiency.

Wheels

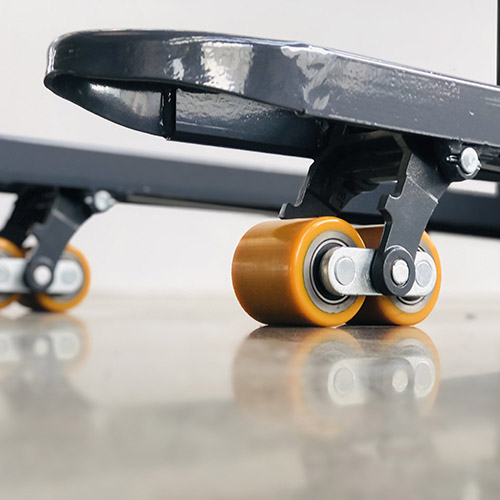

PU wheels

Polyurethane wheels have a lower rolling resistance, making them easier to pull compared to nylon wheels. They are ideal for use on soft floor types like laminated and polished tile, as they are long-lasting and durable.

Nylon wheels

Nylon wheels, on the other hand, are better suited for harsh and debris-filled environments. They are tougher, more durable and less likely to suffer damage than polyurethane wheels when used in cold storage, wet, or rough floors.

Customized Fork Solutions
This electric pallet truck offers fully customizable fork options, including lengths, widths, extensions, and carriages, tailored to meet specific operational needs. Whether handling heavy loads, oversized items, or unique shapes, these features ensure optimal performance, safety, and efficiency. Additionally, customized stall shelves maximize storage space and improve organization, streamlining your operations for versatile material handling in any workspace.

pin-code handle

The key pad access handle integrates a digital keypad into the handle, requiring a unique PIN to operate the truck. This ensures only authorized personnel can access the equipment, adding a layer of security against unauthorized use. Ideal for warehouses, manufacturing facilities, or shared settings, it prevents theft, misuse, and errors. Combined with Personal PIN-CODE settings, it offers a secure yet user-friendly access control solution for authorized operators.
