EPT20ES
Sinolift EPT20ES Electric Pallet Truck with Scale & 2000kg Capacity
The Sinolift EPT20ES Electric Pallet Jack with Scale is designed to streamline material handling and weighing in one efficient step, eliminating the need for separate equipment. Perfect for warehouses, logistics centers, and retail environments, it ensures fast, accurate weighing (±0.2% tolerance) while transporting loads. Key features include a robust 0.75kW motor for powerful performance, balance wheels for enhanced stability, and a fast-charging lithium-ion battery (ready in 2.5 hours). Its maintenance-free design and dust/moisture resistance make it ideal for demanding conditions, saving time and operational costs.
Features
Watch the video to see how the Sinolift EPT20ES Electric Pallet Jack with Scale improves your workflow! Featuring fast 2.5-hour charging, ±0.2% weighing accuracy, and maintenance-free operation, this robust pallet jack handles up to 2000kg with superior stability. Perfect for warehouses, factories, and logistics centers.
Parameters
| Distinguishing Mark | |||
| Manufacturer | SINOLIFT | ||
| Model | EPT20ES(with scale) | ||
| Type | Full Electric | ||
| Power Unit | Li-ion Battery | ||
| Operating Type | Pedestrian | ||
| Load Capacity | Q | kg | 2000 |
| Load Center | C | mm | 600 |
| Axle centre to fork face | mm | 950 | |
| Wheelbase | Y | mm | 1200/1270 |
| Weight | |||
| Service Weight (With Battery) | kg | 148 | |
| Tyres,Chassis | |||
| Wheel Material | PU/PU | ||
| Tyre size, Loading wheels | b2 | mm | Ф80X70 |
| Tyre size, Driving wheels | b4 | mm | Ф190X70. |
| Number of wheels driving, caster/ loading (x=driving) | psc | 1x, 0/4 . | |
| Dimensions | |||
| Max. Lifting height | h3 | mm | 190 |
| Height of tilerl arm in driving position, Min./Max. | mm | 650/1200 | |
| Lowered height | h6 | mm | 75/85 |
| Frame height | b8 | mm | 530 |
| Overall length | L1 | mm | 1540/1610 |
| Length to fork face | mm | 390 | |
| Overall width | b1 | mm | 560(680) |
| Fork dimensions | mm | 50x160x1150(1220) | |
| Distance between fork arms | B | mm | 560(680) |
| Ground clearance, center of wheelbase | b7 | mm | 30 |
| Aisle width for pallets 1000 x 1200 crossways | Ast | mm | 1500 |
| Aisle width for pallets 800 x1200 lengthways | Ast | mm | 1700 |
| Turning radius | Wa | mm | 1330/1400 |
| Performance | |||
| Travel speed, laden/unladen | km/h | 4.5 | |
| Liftingspeed, laden/unladen . | mm/s | 22/17 | |
| Lowering speed, laden/unladen | mm/s | 26/30 | |
| Max. gradeability, laden/unladen | % | 6/10 | |
| Service brake | Electromagnetic | ||
| Electric-engine | |||
| Driving motor rating S2 60 min | kw | 0.8 | |
| Lifting motor rating S3 15% | kw | 0.5 | |
| Battery type | Li-ion | ||
| Battery voltage/nominal capacity K20 | V/Ah | 48V/15Ah | |
| Charger | V/A | 48V/6A | |
| Others | |||
| Driving controller | DC | ||
| Steering type | Mechanical | ||
| Noise at the driver’s ears | dB(A) | <74 | |
Product Details
Electronic Weighing System
Equipped with exquisite LCD electronic scale display instrument, accurate weighing and easy maintenance.

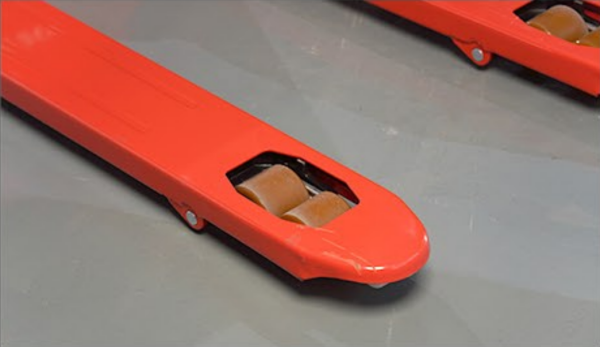

Forks
Tapered fork tips and tandem PU rollers with fork tip rollers for easy pallet entry and exit. Reinforced chassis and forks with tapered ends offer easy pallet entry.
Load Rollers
High-performance Polyurethane load rollers for quiet running and better grip. Single load rollers are optional.
Drive
Maintenance-free brushless (DC) wheel hub motor with no wearable components like carbon brushes or contactors to replace over time offers long-lasting operation and low maintenance.
FAQ
Is this pallet jack scale accurate?
Yes, the integrated weighing system in Sinolift EPT20ES electric pallet truck is highly reliable with a weighing accuracy of ±0.2%. For maximum capacity of 2000kg, the displayed weight will not deviate more than ±4kg (±8.8lbs) from actual weight. Equipped with precision load cells and smart compensation technology, it ensures accurate weighing while handling materials, making it an efficient solution for warehouse logistics.How to calibrate a pallet truck scale?
Prepare – Place the scale on a flat, stable surface and turn it on for auto-zeroing. Check Zero – Ensure the display reads "0" before calibration. Add Weights – Use certified calibration weights (heaviest first) and confirm readings match. Repeat – Test 3-5 times to guarantee consistent accuracy. Final Check – Remove weights and verify the scale returns to zero.Is this pallet jack suitable for outdoor or wet environments?
Yes, it features dust and moisture resistance, making it durable for both indoor and challenging industrial environments.Does this electric pallet jack require regular maintenance?
No. The brushless DC motor and sealed hydraulics are maintenance-free. Only periodic cleaning and battery checks are recommended.How long does the lithium-ion battery take to charge?
The battery supports fast charging in just 2.5 hours, allowing quick turnaround during breaks or shift changes.
Optional Extras

Li-on Battery (Lithium Phosphate Battery)
Opt for the Lithium Phosphate Battery (LiFePO₄) to power your electric pallet truck. This advanced battery technology delivers high safety, long cycle life, and stable performance, making it ideal for demanding operations. With fast charging, minimal maintenance, and eco-friendly benefits, it’s a perfect upgrade for multi-shift applications in modern warehouses and logistics.

Load backrests
When goods are stacked high, the load backrest can prevent it from falling, ensuring user and items safety. To protect the operator from falling objects, electric pallet trucks and stackers have an overhead guard. Electric Pallet Truck with load Backrest for using the boxes and taller loads to be moved safely and easily.

With scale (printer
Electric pallet truck equipped with an integrated scale and printer allows operators to weigh loads while moving them and print labels on the spot. Perfect for logistics and warehousing, it enhances efficiency and accuracy in inventory management.

Cold store version
Designed for extreme cold storage environments, this electric pallet truck is equipped with specialized features such as cold store oil, anti-slip platforms, and heated batteries. Built to operate seamlessly in freezing conditions, it ensures reliable performance and durability in harsh environments. With enhanced insulation and robust components, this version guarantees efficiency and safety in demanding cold storage applications.

Smart Charger for Electric Pallet Trucks
This intelligent charger automatically optimizes voltage and current with multi-stage charging technology to maximize battery performance and lifespan. Featuring advanced protection systems, it delivers fast, safe, and efficient charging tailored for industrial applications. The smart charging management reduces downtime while maintaining optimal battery health. An ideal solution to keep your electric pallet trucks operating at peak efficiency.

Wheels
PU wheels
Polyurethane wheels have a lower rolling resistance, making them easier to pull compared to nylon wheels. They are ideal for use on soft floor types like laminated and polished tile, as they are long-lasting and durable.
Nylon wheels
Nylon wheels, on the other hand, are better suited for harsh and debris-filled environments. They are tougher, more durable and less likely to suffer damage than polyurethane wheels when used in cold storage, wet, or rough floors.

Customized Fork Solutions
This electric pallet truck offers fully customizable fork options, including lengths, widths, extensions, and carriages, tailored to meet specific operational needs. Whether handling heavy loads, oversized items, or unique shapes, these features ensure optimal performance, safety, and efficiency. Additionally, customized stall shelves maximize storage space and improve organization, streamlining your operations for versatile material handling in any workspace.

pin-code handle
The key pad access handle integrates a digital keypad into the handle, requiring a unique PIN to operate the truck. This ensures only authorized personnel can access the equipment, adding a layer of security against unauthorized use. Ideal for warehouses, manufacturing facilities, or shared settings, it prevents theft, misuse, and errors. Combined with Personal PIN-CODE settings, it offers a secure yet user-friendly access control solution for authorized operators.
