EPT20-SR

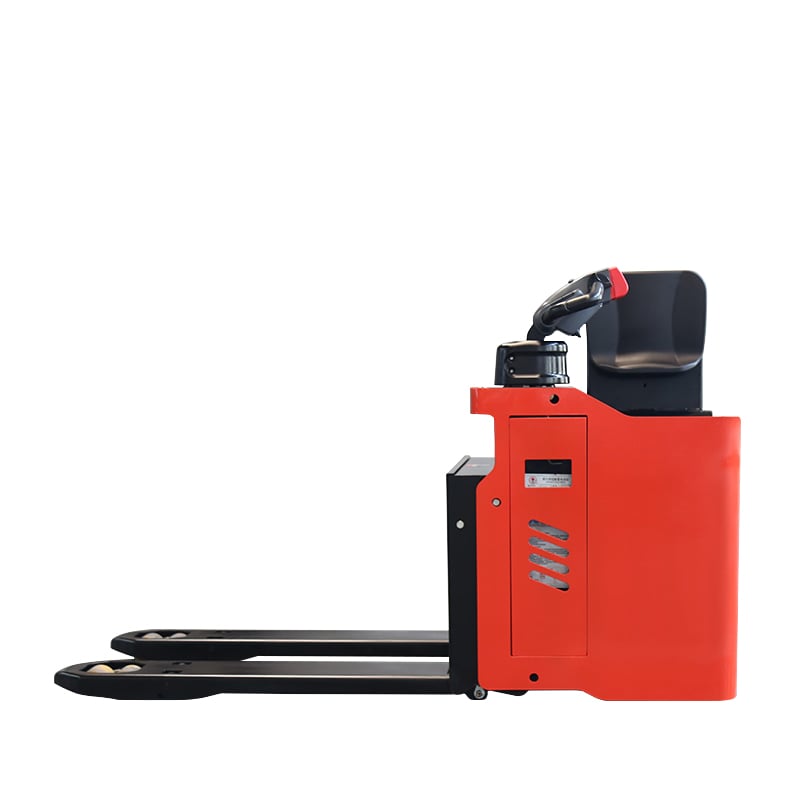

EPT20-SR Li-Ion Ride-On Pallet Truck AC Engine & Power Steering

 The EPT20-SR Li-Ion Electric Pallet Truck is designed for efficient material handling in narrow warehouse and production aisles. Its compact size and ergonomic design, tailored for Asian drivers, reduce operator strain and pain while enhancing productivity. Key features include an AC engine, power steering, suspended floorboard, and a safety entry bar switch, all powered by advanced lithium-ion technology for reliable performance. Ideal for demanding environments, this truck combines health and safety improvements with cost-effectiveness.

Features

Discover the EPT20-SR Li-Ion Electric Pallet Truck in action! Designed for narrow aisles and demanding environments, this innovative truck combines advanced lithium-ion technology with ergonomic features tailored for Asian operators. Watch how its AC engine, power steering, and suspended floorboard enhance productivity while reducing strain. See why the EPT20-SR is the smart choice for efficient, safe, and comfortable material handling.

Parameters

Manufacturer SINOLIFT
Model designation EPT20-SR
Drive Electric
Operator type Pedestrian
Load capacity Q kg 2000
Load center distance c mm 600
Load distance,centre of drive axle to fork x mm 980
Wheelbase y mm 1568
Service weight kg 525
Axle loading, laden front/rear kg 860 / 1650
Axle loading, unladen front/rear kg 405 / 105
Tyre type Polyurethane
Tyre size, front mm Ф230×75
Tyre size, rear mm 2xФ85×70
Additional wheels (castor wheels) mm Φ130*55
Wheels, number front/rear (x=drive wheels) mm 1 x  +1 / 4
Tread width, front b10 mm 442
Tread width, rear b11 mm 370  /  515
Lift height h3 mm 120
Height of tiller handle in drive position min./max. h14 mm 1240
Lowered height h13 mm 85
Overall length l1 mm 1940
Length to face of forks l2 mm 790
Overall width b1/b2 mm 730
Fork dimensions s/e/l mm 55 x 170 x 1150
Distance between fork-arms b5 mm 540  /  685
Ground clearance, center of wheelbase m2 mm 25
Aisle width for pallets 1000×1200 crossways Ast mm 2570
Aisle width for pallets 800×1200 crossways Ast mm 2425
Turning radius Wa mm 1795
Travel speed, laden/unladen km/h 5.5  /  6
Lifting speed, laden/unladen m/s 0.023/ 0.030
Lowering speed, laden/unladen m/s 0.032/ 0.029
Service brake Electromagnetic
Drive motor rating S2 60 min kW 1.6
Lift motor rating at S3 15% kW 2.2
Battery voltage/nominal capacity V/Ah 24  /  205
Battery weight kg 62
Type of drive control AC
Steering design Electronic
Sound pressure level at the driver’s ear dB(A) 74

Product Details

Media Gallery

FAQ

  • What are the advantages of lithium-ion (Li-Ion) batteries over lead-acid batteries in electric pallet trucks?

    Lithium-ion batteries offer faster charging, longer lifespan (2-3x more cycles), and maintenance-free operation. They are also lighter, more energy-efficient, and don’t require watering or ventilation like lead-acid batteries.
  • What makes the EPT20-SR suitable for narrow aisles?

    The EPT20-SR features a compact design with a tight turning radius, allowing easy maneuverability in confined warehouse spaces as narrow as [X] meters/feet. Its ergonomic controls further enhance precision in narrow aisles.
  • How does the suspended floorboard improve operator comfort?

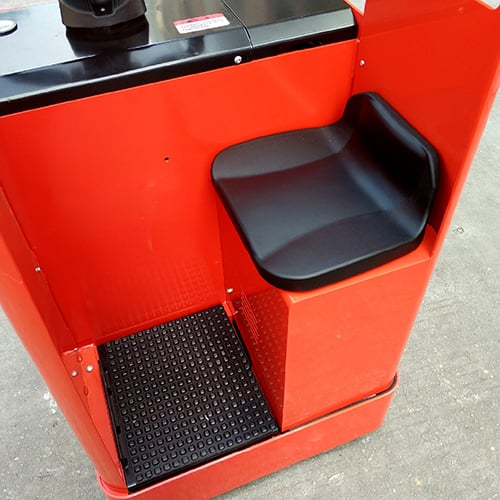

    The shock-absorbing suspended floorboard reduces vibrations and fatigue during long shifts, especially on uneven surfaces, while the low-step design minimizes strain when mounting/dismounting.
  • Does the EPT20-SR require any special maintenance compared to traditional pallet trucks?

    Thanks to its lithium-ion battery and AC motor, the EPT20-SR requires minimal maintenance—no battery watering, acid leaks, or frequent motor servicing. Regular checks on brakes and tires are recommended.
  • What warranty is provided with the EPT20-SR, and what does it cover?

    The EPT20-SR comes with a [X]-year warranty covering the motor, battery, and major components, ensuring long-term reliability. (Note: Adjust warranty terms based on actual policy.)

Optional Extras

Li-on Battery (Lithium Phosphate Battery)

Opt for the Lithium Phosphate Battery (LiFePO₄) to power your electric pallet truck. This advanced battery technology delivers high safety, long cycle life, and stable performance, making it ideal for demanding operations. With fast charging, minimal maintenance, and eco-friendly benefits, it’s a perfect upgrade for multi-shift applications in modern warehouses and logistics.

Load backrests

When goods are stacked high, the load backrest can prevent it from falling, ensuring user and items safety. To protect the operator from falling objects, electric pallet trucks and stackers have an overhead guard. Electric Pallet Truck with load Backrest for using the boxes and taller loads to be moved safely and easily.

With scale (printer

Electric pallet truck equipped with an integrated scale and printer allows operators to weigh loads while moving them and print labels on the spot. Perfect for logistics and warehousing, it enhances efficiency and accuracy in inventory management.

Cold store version

Designed for extreme cold storage environments, this electric pallet truck is equipped with specialized features such as cold store oil, anti-slip platforms, and heated batteries. Built to operate seamlessly in freezing conditions, it ensures reliable performance and durability in harsh environments. With enhanced insulation and robust components, this version guarantees efficiency and safety in demanding cold storage applications.

Smart Charger for Electric Pallet Trucks

This intelligent charger automatically optimizes voltage and current with multi-stage charging technology to maximize battery performance and lifespan. Featuring advanced protection systems, it delivers fast, safe, and efficient charging tailored for industrial applications. The smart charging management reduces downtime while maintaining optimal battery health. An ideal solution to keep your electric pallet trucks operating at peak efficiency.

Wheels

PU wheels

Polyurethane wheels have a lower rolling resistance, making them easier to pull compared to nylon wheels. They are ideal for use on soft floor types like laminated and polished tile, as they are long-lasting and durable.

Nylon wheels

Nylon wheels, on the other hand, are better suited for harsh and debris-filled environments. They are tougher, more durable and less likely to suffer damage than polyurethane wheels when used in cold storage, wet, or rough floors.

Customized Fork Solutions
This electric pallet truck offers fully customizable fork options, including lengths, widths, extensions, and carriages, tailored to meet specific operational needs. Whether handling heavy loads, oversized items, or unique shapes, these features ensure optimal performance, safety, and efficiency. Additionally, customized stall shelves maximize storage space and improve organization, streamlining your operations for versatile material handling in any workspace.

pin-code handle

The key pad access handle integrates a digital keypad into the handle, requiring a unique PIN to operate the truck. This ensures only authorized personnel can access the equipment, adding a layer of security against unauthorized use. Ideal for warehouses, manufacturing facilities, or shared settings, it prevents theft, misuse, and errors. Combined with Personal PIN-CODE settings, it offers a secure yet user-friendly access control solution for authorized operators.
