EPT20-ET

EPT20-ET Electric Pallet Truck for Rough Ground, Ramps and Slopes

The Sinolift EPT20-ET Electric Pallet Truck is engineered for tough outdoor and indoor environments, featuring a robust 48V AC motor to handle slopes, rough terrain, and heavy loads up to 2000kg. Its lightweight design (220kg) and compact turning radius (1465mm) ensure agility in narrow aisles, while all-wheel shock absorption protects goods on uneven surfaces like cobblestones or ramps. Ideal for warehouses, construction sites, and docks, it conquers 8% loaded slopes (16% unloaded) and obstacles like potholes or curbs. With easy maintenance and a patented multifunctional handle, this pallet jack delivers power, durability, and efficiency for demanding logistics tasks.

Features

Parameters

Model EPT20-ET
Rated load(kg) 2000
Load center B11(mm) 600
Operation type Walking style
Standard fork width b5(mm) 560(685)
Fork length(mm) 1150
Fork thickness(mm) 50
Fork width(mm) 150
Overall length(mm) 1685
Minimum turning radius(mm) 1465
Minimum channel width(1000x1200mm,Tray)(mm) 1792
Minimum channel width(800x1200mm,Tray)(mm) 1992
Maximum running speed, full load / no load(km/h) 4/5.5
Maximum lifting speed, full load / no load(m/s) 0.024/0.038
Maximum down speed, full load / no load(m/s) 0.034/0.025
Dead weight with battery(kg) 220
Tire material Polyurethane
Running power(kw) 0.75
Lifting power(kw) 0.84
Voltage / capacity(V/Ah) 12*4/30
Running braking Electromagnetic brake
Brake Battery brake
Drive control type DC



Product Details

Media Gallery

FAQ

Optional Extras

Li-on Battery (Lithium Phosphate Battery)

Opt for the Lithium Phosphate Battery (LiFePO₄) to power your electric pallet truck. This advanced battery technology delivers high safety, long cycle life, and stable performance, making it ideal for demanding operations. With fast charging, minimal maintenance, and eco-friendly benefits, it’s a perfect upgrade for multi-shift applications in modern warehouses and logistics.

Load backrests

When goods are stacked high, the load backrest can prevent it from falling, ensuring user and items safety. To protect the operator from falling objects, electric pallet trucks and stackers have an overhead guard. Electric Pallet Truck with load Backrest for using the boxes and taller loads to be moved safely and easily.

With scale (printer

Electric pallet truck equipped with an integrated scale and printer allows operators to weigh loads while moving them and print labels on the spot. Perfect for logistics and warehousing, it enhances efficiency and accuracy in inventory management.

Cold store version

Designed for extreme cold storage environments, this electric pallet truck is equipped with specialized features such as cold store oil, anti-slip platforms, and heated batteries. Built to operate seamlessly in freezing conditions, it ensures reliable performance and durability in harsh environments. With enhanced insulation and robust components, this version guarantees efficiency and safety in demanding cold storage applications.

Smart Charger for Electric Pallet Trucks

This intelligent charger automatically optimizes voltage and current with multi-stage charging technology to maximize battery performance and lifespan. Featuring advanced protection systems, it delivers fast, safe, and efficient charging tailored for industrial applications. The smart charging management reduces downtime while maintaining optimal battery health. An ideal solution to keep your electric pallet trucks operating at peak efficiency.

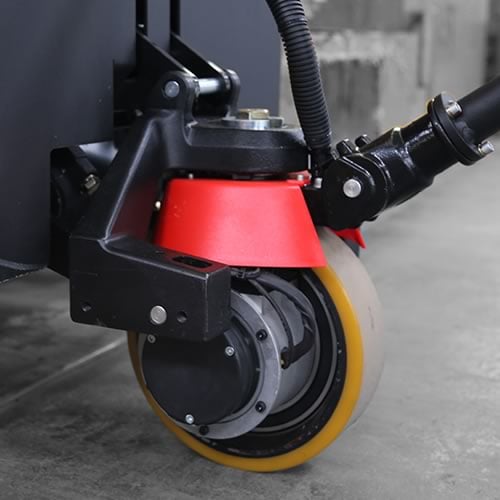

Wheels

PU wheels

Polyurethane wheels have a lower rolling resistance, making them easier to pull compared to nylon wheels. They are ideal for use on soft floor types like laminated and polished tile, as they are long-lasting and durable.

Nylon wheels

Nylon wheels, on the other hand, are better suited for harsh and debris-filled environments. They are tougher, more durable and less likely to suffer damage than polyurethane wheels when used in cold storage, wet, or rough floors.

Customized Fork Solutions
This electric pallet truck offers fully customizable fork options, including lengths, widths, extensions, and carriages, tailored to meet specific operational needs. Whether handling heavy loads, oversized items, or unique shapes, these features ensure optimal performance, safety, and efficiency. Additionally, customized stall shelves maximize storage space and improve organization, streamlining your operations for versatile material handling in any workspace.

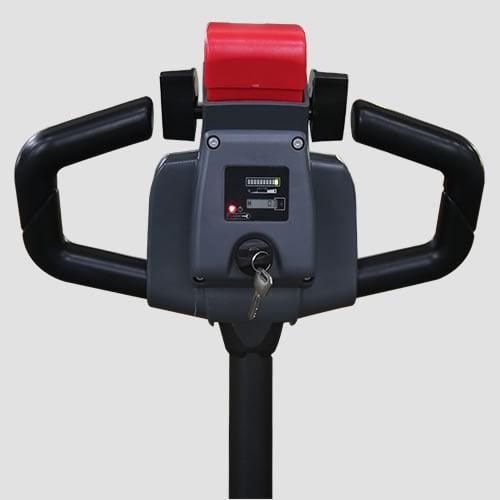

pin-code handle

The key pad access handle integrates a digital keypad into the handle, requiring a unique PIN to operate the truck. This ensures only authorized personnel can access the equipment, adding a layer of security against unauthorized use. Ideal for warehouses, manufacturing facilities, or shared settings, it prevents theft, misuse, and errors. Combined with Personal PIN-CODE settings, it offers a secure yet user-friendly access control solution for authorized operators.
