EPT20-30RT EPT20-35RT

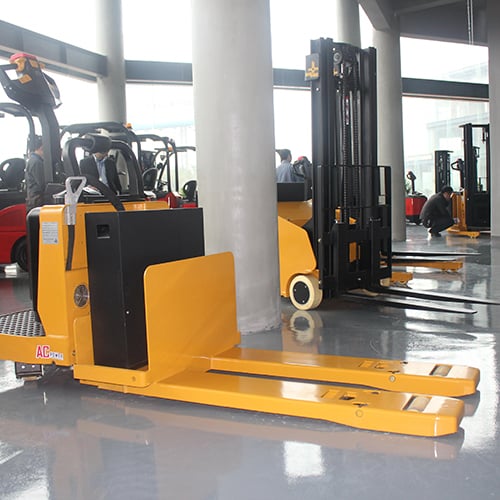

EPT30-RT/EPT35-RT Rider Pallet Truck – 3000kg/3500kg AC Electric Pallet Jack

The EPT30-RT/EPT35-RT rider pallet truck is designed for demanding manufacturing and large warehouse applications, offering high productivity with a 3000kg/3500kg capacity and a top speed of 9 mph. Its ergonomic handle with intuitive thumb controls, regenerative braking, and anti-rollback technology ensure operator comfort and safety. The heavy-duty AC drive motor eliminates moving parts, reducing maintenance costs, while the sealed components allow operation in coolers or freezers down to -20°C. Ideal for high-throughput environments, it features a floating adjustable suspension system for stability at high speeds and easy battery replacement.

Features

Parameters

Manufacturer SINOLIFT
Model designation EPT30RT EPT35RT
Model designation Battery Battery
Drive unit Ride Ride
Load capacity Q (kg) 3000 3500
Load center c (mm) 600 600
Service weight (Incl. battery) kg 810 1040
Tyre type,operator side/ load side PU/PU PU/PU
Wheels, number operator/load side (x=drive wheels) 2001/2/2 2001/2/2
Lift height h3 (mm) 140 140
Fork height, lowered h13 (mm) 82.5 82.5
Overall length l1 (mm) 2325 2325
Overall width b1/ b2 (mm) 915 915
Fork dimensions s/ e/ l (mm) 60/230/1190 60/230/1190
Fork spread, min/ max b5 (mm) 685 710
Aisle width, 1000×1200 pallet crossways Ast (mm) 2555 3765
Outer turning radius Wa (mm) 2064 2590
Travel speed, laden/ unladen km/ h 10.5/14.5 10.5/14.5
Lifting speed, laden/ unladen m/ s 0.30/0.33 0.30/0.33
Lowering speed, laden/ unladen m/ s 0.40/0.38 0.40/0.38
Maximum gradeability, laden/ unladen S2 5 min. % 6/15 6/15
Service brake Electromagnetic Electromagnetic
Drive motor rating S2 60 min. kW 4 4
Lift motor rating at S3 15% kW 2.2 2.2
Battery voltage/ rated capacity (5h) V/ Ah 24/360 24/360
Type of drive control AC ZAPI
Sound level at operator’s ear dB (A) 70



Product Details

Media Gallery

FAQ

  • How does the anti-rollback feature work?

    The regenerative brake automatically engages on slopes, preventing unintended movement. It activates when the handle is vertical or horizontal.
  • Does the EPT30-RT/EPT35-RT require frequent maintenance?

    No. The brushless AC motor has no moving parts, reducing maintenance needs. The gear drive is also zero-maintenance.
  • Can this pallet truck operate in cold storage environments?

    Yes, it features sealed switches and components rated for -20°C (-28.9°F), making it suitable for freezers and coolers.
  • What makes this pallet truck more ergonomic than others?

    Its soft-grip handle with thumb controls and floating suspension system reduce operator fatigue, even during high-speed turns.

Optional Extras

Li-on Battery (Lithium Phosphate Battery)

Opt for the Lithium Phosphate Battery (LiFePO₄) to power your electric pallet truck. This advanced battery technology delivers high safety, long cycle life, and stable performance, making it ideal for demanding operations. With fast charging, minimal maintenance, and eco-friendly benefits, it’s a perfect upgrade for multi-shift applications in modern warehouses and logistics.

Load backrests

When goods are stacked high, the load backrest can prevent it from falling, ensuring user and items safety. To protect the operator from falling objects, electric pallet trucks and stackers have an overhead guard. Electric Pallet Truck with load Backrest for using the boxes and taller loads to be moved safely and easily.

With scale (printer

Electric pallet truck equipped with an integrated scale and printer allows operators to weigh loads while moving them and print labels on the spot. Perfect for logistics and warehousing, it enhances efficiency and accuracy in inventory management.

Cold store version

Designed for extreme cold storage environments, this electric pallet truck is equipped with specialized features such as cold store oil, anti-slip platforms, and heated batteries. Built to operate seamlessly in freezing conditions, it ensures reliable performance and durability in harsh environments. With enhanced insulation and robust components, this version guarantees efficiency and safety in demanding cold storage applications.

Smart Charger for Electric Pallet Trucks

This intelligent charger automatically optimizes voltage and current with multi-stage charging technology to maximize battery performance and lifespan. Featuring advanced protection systems, it delivers fast, safe, and efficient charging tailored for industrial applications. The smart charging management reduces downtime while maintaining optimal battery health. An ideal solution to keep your electric pallet trucks operating at peak efficiency.

Wheels

PU wheels

Polyurethane wheels have a lower rolling resistance, making them easier to pull compared to nylon wheels. They are ideal for use on soft floor types like laminated and polished tile, as they are long-lasting and durable.

Nylon wheels

Nylon wheels, on the other hand, are better suited for harsh and debris-filled environments. They are tougher, more durable and less likely to suffer damage than polyurethane wheels when used in cold storage, wet, or rough floors.

Customized Fork Solutions
This electric pallet truck offers fully customizable fork options, including lengths, widths, extensions, and carriages, tailored to meet specific operational needs. Whether handling heavy loads, oversized items, or unique shapes, these features ensure optimal performance, safety, and efficiency. Additionally, customized stall shelves maximize storage space and improve organization, streamlining your operations for versatile material handling in any workspace.

pin-code handle

The key pad access handle integrates a digital keypad into the handle, requiring a unique PIN to operate the truck. This ensures only authorized personnel can access the equipment, adding a layer of security against unauthorized use. Ideal for warehouses, manufacturing facilities, or shared settings, it prevents theft, misuse, and errors. Combined with Personal PIN-CODE settings, it offers a secure yet user-friendly access control solution for authorized operators.
