EPT20-15ET2-L

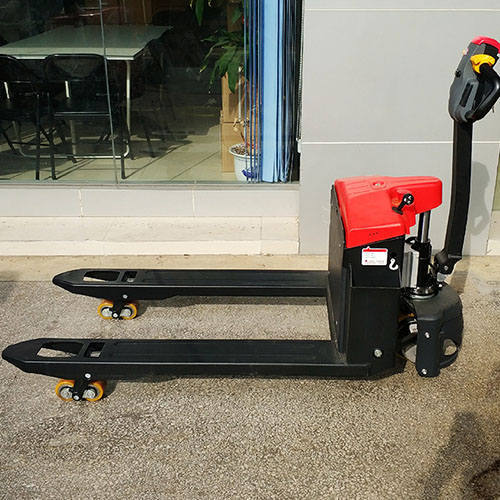

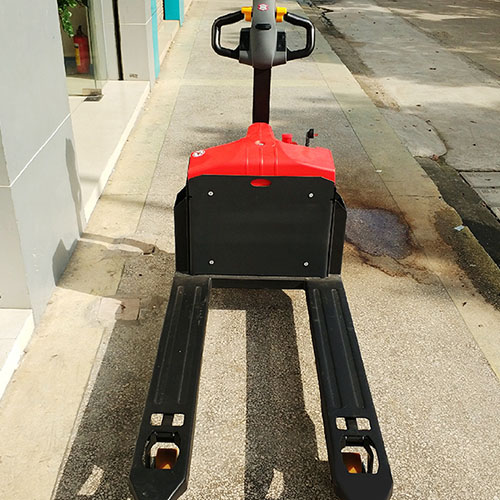

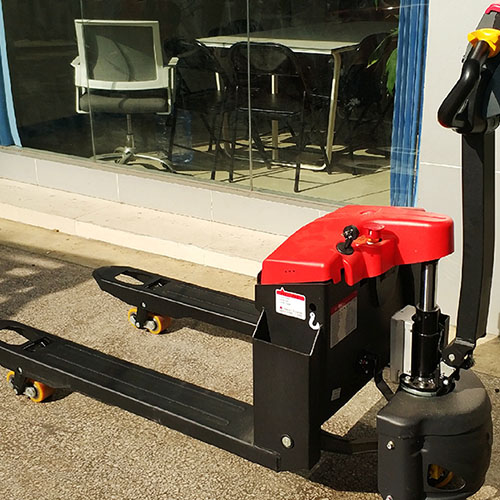

EPT20-15ET2-L Li-Ion Electric Pallet Truck 1.5T – Compact Pallet Jack

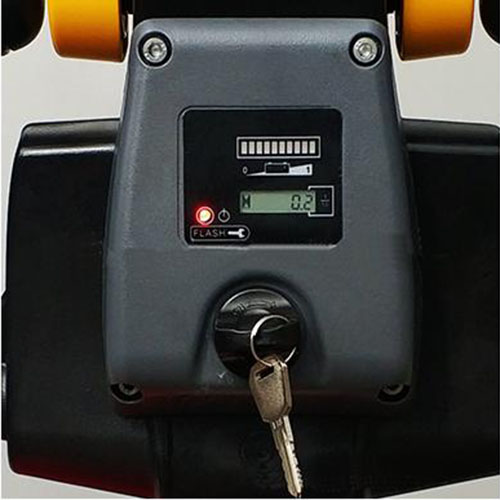

 The EPT20-15ET2-L electric pallet truck combines compact design with lightweight operation, ideal for confined spaces. Its energy-saving Li-ion battery ensures lower TCO and eco-friendly performance. Key upgrades include intuitive low-voltage protection (red indicator), simplified fault detection via multimeter, and versatile controller/accelerator kits compatible with both lead-acid and Li-ion models. Enhanced battery failure alerts via flashing lights streamline maintenance. Perfect for warehouses, factories, and logistics hubs seeking efficiency and easy upkeep.

Features

Parameters

ManufacturerSinolift
Model designationEPT20-15ET2L
DriveElectric
Operator typePedestrian
Load capacityQkg1500
Load center distancecmm600

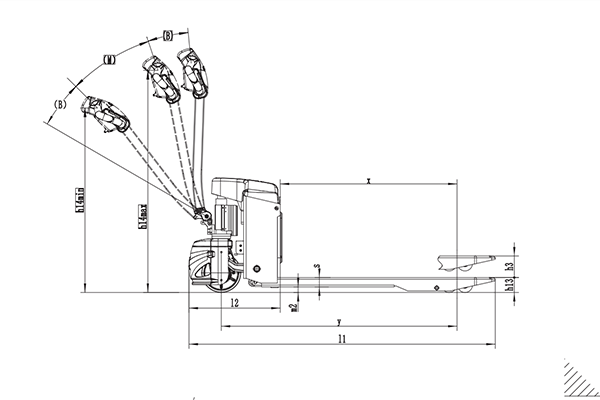

Load distance,centre of drive axle to forkxmm883/946
Wheelbaseymm1202/1261
Service weightkg163
Axle loading, laden front/rearkg534/1127
Axle loading, unladen front/rearkg122/39
Tyre typePolyurethane
Tyre size, frontmmФ210×70
Tyre size, rearmmФ80×61
Tread width, rearb11mm410(535)
Lift heighth3mm115
Height of tiller handle in drive position min./max.h14mm750/1170
Lowered heighth13mm80
Overall lengthl1mm1638
Length to face of forksl2mm488
Overall widthb1/b2mm560(685)
Fork dimensionss/e/lmm50/150/1150
Distance between fork-armsb5mm560(685)
Ground clearance, center of wheelbasem2mm30

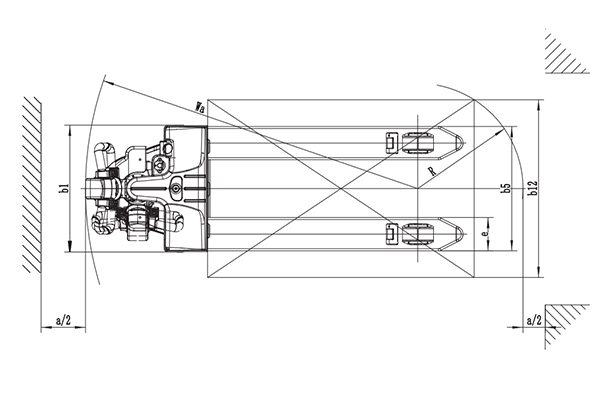

Aisle width for pallets 1000×1200 crosswaysAstmm2280
Aisle width for pallets 800×1200 crosswaysAstmm2150
Turning radiusWamm1475
Travel speed, laden/unladenkm/h4.5/5
Lifting speed, laden/unladenm/s0.027/0.038
Lowering speed, laden/unladenm/s0.059/0.039
Service brakeElectromagnetic
Drive motor rating S2 60 minkW0.75
Lift motor rating at S3 15%kW0.84
Battery voltage/nominal capacityV/Ah24/50
Battery weightkg11.5×1
Type of drive controlDC
Steering designMechanical
Sound pressure level at the driver’s eardB(A)74



Product Details

Media Gallery

FAQ

  • What is the lifespan of a lithium battery in an electric pallet truck?

    Typically 2000-3000 charge cycles, lasting 5-7 years with proper maintenance.
  •  Can lithium pallet trucks operate in cold storage environments?

    Yes, lithium batteries perform better than lead-acid in cold (as low as -20°C), but capacity may temporarily reduce.
  • Are lithium pallet trucks more expensive than lead-acid models?

    Higher upfront cost, but lower long-term TCO due to energy savings and no maintenance.
  • What safety features do lithium pallet jacks have?

    Answer: Standard protections include overcharge/over-discharge prevention, temperature control, and short-circuit protection.
  • Can the EPT20-15ET2-L be used with both lithium and lead-acid batteries?

    Yes, its controller and accelerator are compatible with both lithium and lead-acid battery versions.

Optional Extras

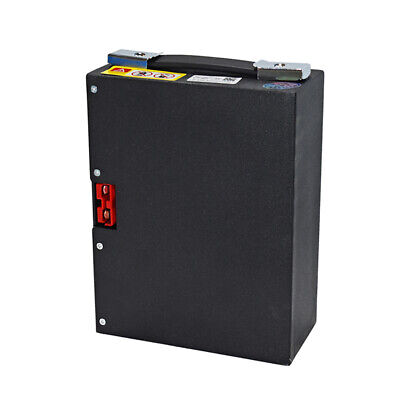

Li-on Battery (Lithium Phosphate Battery)

Opt for the Lithium Phosphate Battery (LiFePO₄) to power your electric pallet truck. This advanced battery technology delivers high safety, long cycle life, and stable performance, making it ideal for demanding operations. With fast charging, minimal maintenance, and eco-friendly benefits, it’s a perfect upgrade for multi-shift applications in modern warehouses and logistics.

Load backrests

When goods are stacked high, the load backrest can prevent it from falling, ensuring user and items safety. To protect the operator from falling objects, electric pallet trucks and stackers have an overhead guard. Electric Pallet Truck with load Backrest for using the boxes and taller loads to be moved safely and easily.

With scale (printer

Electric pallet truck equipped with an integrated scale and printer allows operators to weigh loads while moving them and print labels on the spot. Perfect for logistics and warehousing, it enhances efficiency and accuracy in inventory management.

Cold store version

Designed for extreme cold storage environments, this electric pallet truck is equipped with specialized features such as cold store oil, anti-slip platforms, and heated batteries. Built to operate seamlessly in freezing conditions, it ensures reliable performance and durability in harsh environments. With enhanced insulation and robust components, this version guarantees efficiency and safety in demanding cold storage applications.

Smart Charger for Electric Pallet Trucks

This intelligent charger automatically optimizes voltage and current with multi-stage charging technology to maximize battery performance and lifespan. Featuring advanced protection systems, it delivers fast, safe, and efficient charging tailored for industrial applications. The smart charging management reduces downtime while maintaining optimal battery health. An ideal solution to keep your electric pallet trucks operating at peak efficiency.

Wheels

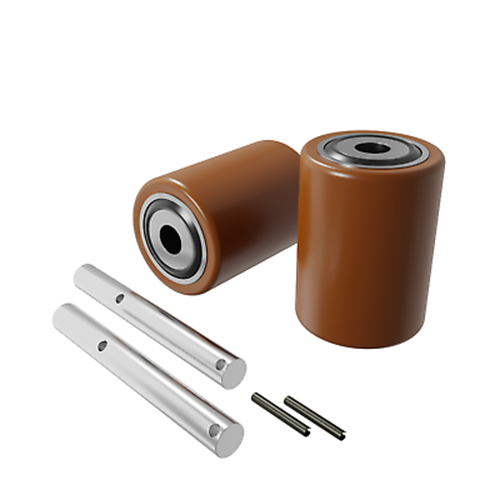

PU wheels

Polyurethane wheels have a lower rolling resistance, making them easier to pull compared to nylon wheels. They are ideal for use on soft floor types like laminated and polished tile, as they are long-lasting and durable.

Nylon wheels

Nylon wheels, on the other hand, are better suited for harsh and debris-filled environments. They are tougher, more durable and less likely to suffer damage than polyurethane wheels when used in cold storage, wet, or rough floors.

Customized Fork Solutions
This electric pallet truck offers fully customizable fork options, including lengths, widths, extensions, and carriages, tailored to meet specific operational needs. Whether handling heavy loads, oversized items, or unique shapes, these features ensure optimal performance, safety, and efficiency. Additionally, customized stall shelves maximize storage space and improve organization, streamlining your operations for versatile material handling in any workspace.

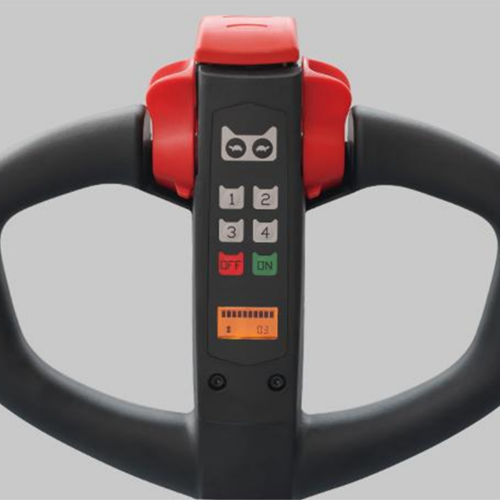

pin-code handle

The key pad access handle integrates a digital keypad into the handle, requiring a unique PIN to operate the truck. This ensures only authorized personnel can access the equipment, adding a layer of security against unauthorized use. Ideal for warehouses, manufacturing facilities, or shared settings, it prevents theft, misuse, and errors. Combined with Personal PIN-CODE settings, it offers a secure yet user-friendly access control solution for authorized operators.
