  5. 1.5ton 2 ton Narrow aisle CQD15B 20B Electric Reach stand Forklift Truck

EPT15 EPT18 EPT20

EPL153Z Lithium-Ion Electric Pallet Truck with Easy Maintenance

The EPL153Z 1.5-ton Electric Pallet Jack is an ideal replacement for manual hand pallet trucks, designed for efficiency and durability. Its robust chassis, integrated lithium battery & charger, and enhanced foot protection make it perfect for transport and retail applications. Featuring smart handle controls and easy maintenance, it reduces labor effort while supporting loads up to 1.5 tons with just 115kg self-weight. The built-in charger provides 4 hours of continuous runtime, ensuring productivity.

Features

Parameters

Manufacturer                           SINOLIFT
ModelEPT15EPT18EPT20
Power TypeLithium BatteryLithium BatteryLithium Battery
Type of OperationPedestrianPedestrianPedestrian
Load capacity/Rated loadqkg150018002000
Load Center Distancecmm   600   600650
Alex centre to Fork Facexmm950(1020)950(1020)950(1020)
Wheelbaseymm1220(1295)1220(1295)1220(1295)
Total Weight (with battery)kg148(153)155(160)158(163)
Axle Load(laden):Drive side/Load-bearing sidekg
Axle Load(unladen):Drive Side/Load-bearing sidekg
Tyre TypePolyurethanePolyurethanePolyurethane
Tyre Size ( Load Wheel)  TandemmmΦ80×70(85mm) or Φ74×70(75mm)Φ80×70(85mm) or Φ74×70(75mm)Φ80×70(85mm) or Φ74×70(75mm)
Tyre Size (Load Wheel) SingleΦ80×93(85mm) or Φ74×93(75mm)Φ80×93(85mm) or Φ74×93(75mm)Φ80×93(85mm) or Φ74×93(75mm)
Tyre Size (Drive Wheel)mmΦ210×70Φ210×70Φ190×70
Tyre Size (Caster Wheel)mmΦ70×36Φ70×36Φ70×36
Wheels Quantity, front/rear (x=Driving Wheels)4/1x+24/1x+24/1x+2

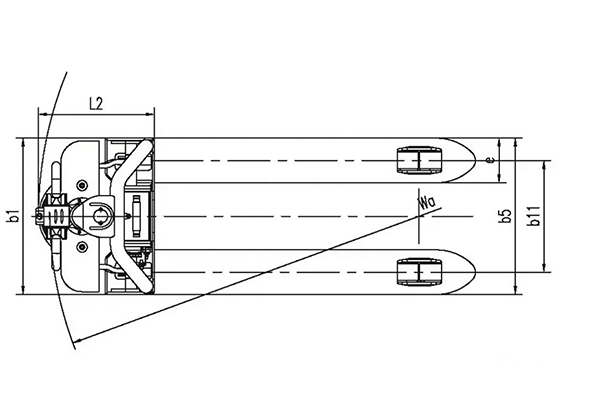

Track Width,Front,Driving Sideb10mm460460460
Track Width,Rear,Loading Sideb11mm400(520)400(520)400(520)
Lifting Heighth3mm190(200)190(200)190(200)
Height of Tiller Arm in Driving Position, Min.- Max.h14mm600-1220600-1220680-1200
Lowered Heighth13mm75(85)75(85)75(85)
Overall Lengthl1mm1540(1610)1540(1610)1540(1610)
Length to Fork Facel2mm390390390
Overall Widthb1mm560(680)560(680)560(680)
Fork Dimensions/e/lmm50x160x1150(1220)50x160x1150(1220)54x160x1150(1220)
Fork Spread Widthb5mm560/680560/680560/680
Ground Clearance at Center of Wheelbase (Min)m2mm303042
Aisle Width for Pallets 1000×1200 CrosswaysAstmm179017901790
Aisle Width for Pallets 800×1200 CrosswaysAstmm174017401740
Turning RadiusWamm135013501350
Traveling Speed (Laden/Unladen)km/h4.5/44.5/44.5/4
Lifting Speed (Laden/Unladen)mm/s22/1722/1715/28
Lowering Speed (Laden/Unladen)mm/s26/3026/3035/26
Max.Gradient Performance (Laden/Unladen)%5/75/76/15
Service Brake Type       Electromagnetic       Electromagnetic       Electromagnetic
Driving Motor Rating (DC) S2 60minkw0.750.750.85
Lifting Motor Rating S3 15%kw0.50.50.6
Battery TypeLi-ionLi-ionLi-ion
Battery Voltage/Capacity K5V/Ah24/2524/2548/15(20Ah 30Ah option)
Battery Weightkg556(6.5kg 7kg)
ChargerV/A24/1024/1048/6
Controller ModelDC CURTISDC CURTISDC CURTIS
Steering TypeMechanicalMechanicalMechanical
Sound level atdriver’s ear according to EN 12 053dB(A)707070

Product Details

Media Gallery

FAQ

  • Is the battery removable for fast swapping?

    Yes! The 6kg lightweight battery can be swapped in 20 seconds, minimizing downtime.
  • How long does the lithium battery last on a single charge?

    The 48V/15Ah lithium battery provides 4-6 hours of continuous operation, ideal for a full day’s workload.
  • What IP rating does the motor and controller assembly have?

    The CURTIS controller and drive motor are rated IP54, providing protection against dust and water splashes for reliable operation in demanding environments.
  • What safety features does it have?

    Includes emergency stop, horn, stability wheels, and ergonomic handle with reverse function.
  • How does the regenerative braking system contribute to energy recovery?

    The system recovers up to 15% of kinetic energy during deceleration, extending battery runtime by approximately 45 minutes per full charge cycle.

Optional Extras

Li-on Battery (Lithium Phosphate Battery)

Opt for the Lithium Phosphate Battery (LiFePO₄) to power your electric pallet truck. This advanced battery technology delivers high safety, long cycle life, and stable performance, making it ideal for demanding operations. With fast charging, minimal maintenance, and eco-friendly benefits, it’s a perfect upgrade for multi-shift applications in modern warehouses and logistics.

Load backrests

When goods are stacked high, the load backrest can prevent it from falling, ensuring user and items safety. To protect the operator from falling objects, electric pallet trucks and stackers have an overhead guard. Electric Pallet Truck with load Backrest for using the boxes and taller loads to be moved safely and easily.

With scale (printer

Electric pallet truck equipped with an integrated scale and printer allows operators to weigh loads while moving them and print labels on the spot. Perfect for logistics and warehousing, it enhances efficiency and accuracy in inventory management.

Cold store version

Designed for extreme cold storage environments, this electric pallet truck is equipped with specialized features such as cold store oil, anti-slip platforms, and heated batteries. Built to operate seamlessly in freezing conditions, it ensures reliable performance and durability in harsh environments. With enhanced insulation and robust components, this version guarantees efficiency and safety in demanding cold storage applications.

Smart Charger for Electric Pallet Trucks

This intelligent charger automatically optimizes voltage and current with multi-stage charging technology to maximize battery performance and lifespan. Featuring advanced protection systems, it delivers fast, safe, and efficient charging tailored for industrial applications. The smart charging management reduces downtime while maintaining optimal battery health. An ideal solution to keep your electric pallet trucks operating at peak efficiency.

Wheels

PU wheels

Polyurethane wheels have a lower rolling resistance, making them easier to pull compared to nylon wheels. They are ideal for use on soft floor types like laminated and polished tile, as they are long-lasting and durable.

Nylon wheels

Nylon wheels, on the other hand, are better suited for harsh and debris-filled environments. They are tougher, more durable and less likely to suffer damage than polyurethane wheels when used in cold storage, wet, or rough floors.

Customized Fork Solutions
This electric pallet truck offers fully customizable fork options, including lengths, widths, extensions, and carriages, tailored to meet specific operational needs. Whether handling heavy loads, oversized items, or unique shapes, these features ensure optimal performance, safety, and efficiency. Additionally, customized stall shelves maximize storage space and improve organization, streamlining your operations for versatile material handling in any workspace.

pin-code handle

The key pad access handle integrates a digital keypad into the handle, requiring a unique PIN to operate the truck. This ensures only authorized personnel can access the equipment, adding a layer of security against unauthorized use. Ideal for warehouses, manufacturing facilities, or shared settings, it prevents theft, misuse, and errors. Combined with Personal PIN-CODE settings, it offers a secure yet user-friendly access control solution for authorized operators.
