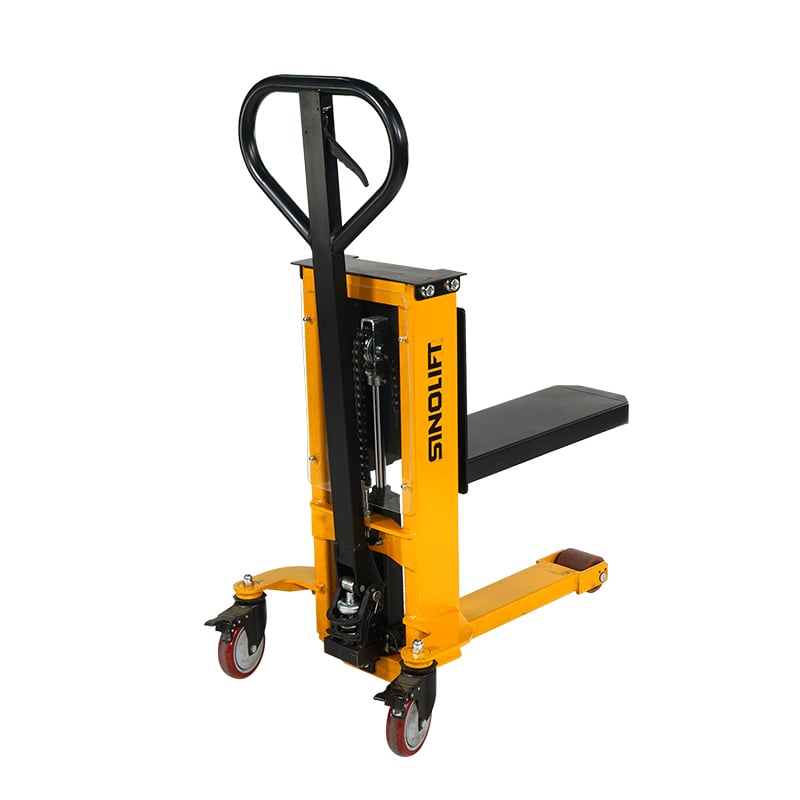

DPL500 Single-Fork Manual Pallet Truck for quarter pallet transport
SINOLIFT DPL500 Single-Fork Manual Pallet Truck for quarter pallet transport, Special for supermarket bin.
The SINOLIFT DPL500 Single-Fork Manual Pallet Truck is designed for lifting and moving quarter pallets, display pallets, supermarket bins, and other compatible loads in narrow or confined spaces. Its compact single-fork structure offers excellent maneuverability, making it easy to transfer goods from larger pallets and position them directly at the point of sale. An ergonomic handle and efficient hydraulic lifting system help operators move and raise loads with less effort. Smooth, wear-resistant PU wheels provide quiet travel while helping protect indoor floors, and the rear brake allows secure parking during loading or display placement. It is an ideal handling solution for supermarkets, retail stores, warehouses, packing areas, workshops, and service stations where space efficiency and flexible movement are essential.
Features
The SINOLIFT DPL500 Single-Fork Manual Pallet Truck is designed for efficient handling in narrow aisles, retail spaces, and confined working areas. Its compact single-fork structure is ideal for moving quarter pallets, display pallets, supermarket bins, and other compatible loads. The sealed hydraulic system provides smooth, labor-saving lifting, while the reinforced fork and thickened steel frame ensure reliable strength and durability. An ergonomic handle offers comfortable, intuitive control during lifting, transport, and lowering. Quiet, wear-resistant PU wheels protect indoor floors and allow smooth maneuvering, while the lockable rear casters provide secure parking. The DPL500 is a practical solution for supermarkets, warehouses, packing areas, workshops, and point-of-sale operations.
Parameters
| Model | DPL500 | |
| Load capacity | kg | 500 |
| Minimum fork height | mm | 85 |
| Fork lift height | mm | 300 |
| Rear steering wheel | mm | 100 × 32 |
| Front load wheel | mm | 74 × 93 (single wheel) / 80 × 60 (dual wheel) |
| Fork width | mm | 200 |
| Fork length | mm | 600 |
| Net weight | kg | 70 |
| Overall height | mm | 1195 |
| Overall length | mm | 930 |
| Turning radius | mm | 830 |
| Ground clearance | mm | 40 |
Product Details
Lockable PU Wheels
Two lockable PU swivel casters and a durable PU fork roller provide smooth, quiet, and highly maneuverable movement in retail areas, supermarkets, and discount stores. The rear casters also feature a parking brake and foot guards for safer operation and secure positioning.
Wide Fork and Protective Backrest
The wide single fork provides stable support for display pallets, while the protective load backrest helps prevent tall loads from tipping. This design improves safety when moving displays with a high center of gravity.
High-Efficiency Hydraulic Pump
The high-efficiency hydraulic pump lifts the pallet clear of the floor with only a quarter stroke and reaches its full lifting height in approximately five strokes. This significantly reduces lifting time and operator effort compared with conventional manual lifters.

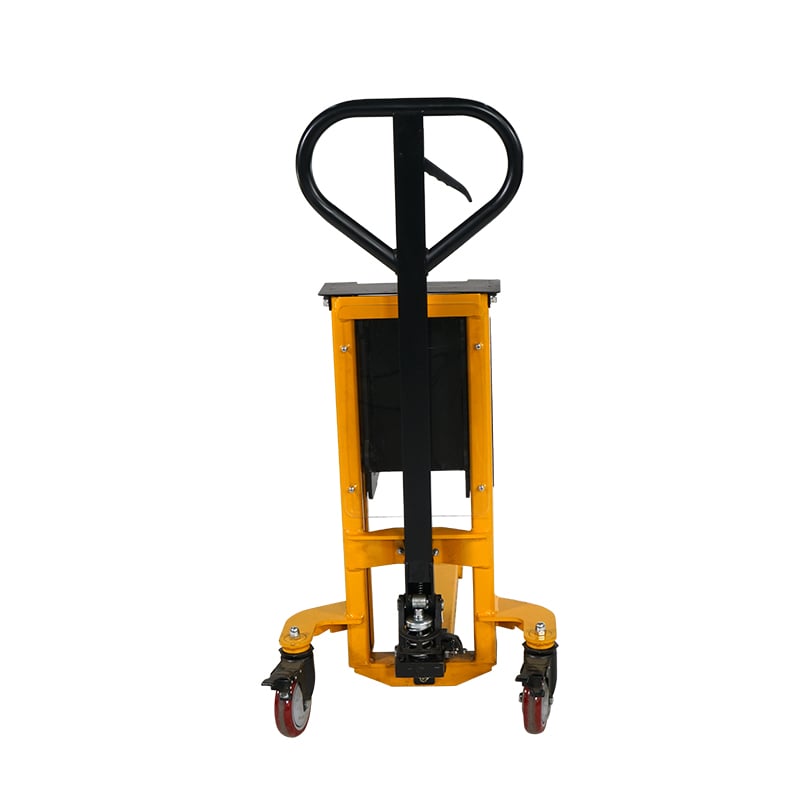

Ergonomic Tiller Operation
The ergonomically designed tiller offers a comfortable, secure grip and allows the operator to raise the load using simple pumping movements, similar to a standard manual pallet truck. Its intuitive operation reduces physical strain during frequent lifting tasks in busy retail environments.
Media Gallery
FAQ
Q1: What types of pallets and loads are suitable for the DPL500?
A1: The DPL500 is primarily designed for compatible display pallets, quarter pallets, supermarket bins, containers, and other loads that can be safely supported by a central single fork. Before use, the underside structure, fork entry, load dimensions, and center of gravity must be checked to ensure the load remains stable during lifting and transport.Q2: Can the DPL500 be used with standard pallets?
A2: The DPL500 is not a universal replacement for a conventional twin-fork pallet truck. It may handle certain pallets with a suitable central fork opening or support structure, but many standard pallets require two forks for correct load distribution and should be handled with a standard hand pallet truck.Q3: How can I determine whether a single-fork pallet truck is suitable for my application?
A3: A single-fork pallet truck is suitable when the load has a compatible central support point and must be moved through narrow aisles, retail display areas, storerooms, or other confined spaces. For an accurate compatibility assessment, customers should provide the load weight, dimensions, underside structure, fork-entry size, aisle width, and required lifting task before ordering.Q4: What operating precautions are important when using the DPL500?
A4: The load must be centered on the fork, properly balanced, and kept within the rated capacity throughout operation. The truck should be used on firm, level floors, and operators should move slowly when turning, lowering, entering confined areas, or working near customers and other personnel. When the truck is parked or the load is being positioned, the wheel brakes should be applied to prevent unintended movement. Operators should never stand beneath a raised load or use the truck to carry people.Q5: What maintenance is required for reliable long-term operation?
A5: The DPL500 requires regular inspection of the hydraulic system, wheels, brakes, fork, frame, handle mechanism, springs, and fasteners. Any oil leakage, structural deformation, unusual noise, reduced braking performance, or difficulty lifting should be addressed before the truck is returned to service. The wheels and moving joints should be kept clean, particularly in supermarkets, warehouses, and waste-handling areas where packaging debris or dirt may affect movement. Periodic professional servicing and the use of suitable replacement parts will help maintain safe operation and extend the service life of the truck.
