CQD15B CQD20B
CQD15B CQD20B - Image 2
CQD15B CQD20B - Image 3
CQD15B CQD20B - Image 4
CQD15B CQD20B - Image 5

CQD15B CQD20B

Sinolift CQD15B CQD20B electric reach truck

Industrial electric reach trucks are designed for high-efficiency operations in warehouses and demanding work environments, offering exceptional lift heights and superior stability. Their compact design and small turn radius enable excellent maneuverability in narrow aisles, while the ergonomic cabin and controls enhance operator comfort and productivity. Featuring energy-efficient AC drive and hydraulic motors, these trucks reduce operating costs and are easy to service with removable components and quick battery access. Enhanced safety features and a low vibration suspension system ensure reliable performance, making them ideal for right-angle stacking and heavy-duty applications. Backed by an extensive dealer network and aftermarket support, these trucks are a practical and durable solution for modern industrial needs.

Contact Us
Download

Features

  1. LED Front Working Lamp、LED Turning Signals
  2. Panoramic Mirrorcurved-surface mirror provides broad view of operator’s back side
  3. Strong Overhead Guardmeets EEC and ANSI regulations and protects the operator during hazardous work.
  4. Excellent Visibility for Safe Operation
  5. Improved Mast Rigidity

Reinforcement of outer mast to reduce mast swing.

  1. Easy-to-Read Vacuum Fluorescent Display Paneland easy access to maintenance information and settings.
  2. Emergency power off switchthe operator is able to quickly access the stop button and ensure their own safety and that of others within the vicinity.
  3. Anti-Slip Controlenable higher stability during travel on slippery road surface.
  4. Operator Friendly Steering Wheel and Levers

The steering wheel and the levers are oriented to ensure the comfortable posture during operation.

Parameters

Model CQD15B CQD20B
Power Type Electric Electric
Type of Operation Stand-on Stand-on
Steering Mode Electric Power Steering
Load Capacity/Rated Load Q   kg 1500 2000
Load Center Distance c mm 500 500
Load Distance. center of drive axle to fork x mm 160 160
Wheelbase y mm 1375 1525
Total Weight (with Battery) kg 2700 2900
Axle Load (laden):Drive side/Load-bearing Side kg / /
Axle Load (unladen):Drive side/Load-bearing Side kg / /
Overlength (Mast Reached/Mast Retracted) L1/L2 mm 2820/2355 2970/2360
Frame Length (Without Fork) L mm 1760 1910
Overall Width W1 mm 1270 1270
Height of Overhead Guard   h7 mm 2260 2260
Lift Height h1 mm 3000 3000
Height with Mast Lowered h2 mm 2100 2100
Height with Mast Extended h4 mm 3900 3900
Free Lift Height h5 mm L L
Fork Dimension I/e/s mm 1070/100/35 1070/122/40
Type of Fork Carriage A, B Class 2A 2A
Fork Spread Width b2 mm 225-820 250-820
Fork Carriage Width mm 868 868
Fork Tilt (Forward/Backward) a/B ° 3/5 3/5
Distance of Straddle Leg b3 mm 920 920
Reach Distance L3 mm 465 610
Height of Straddle Leg  h6 mm 310 310
Ground Clearance at The Center of Wheelbase (Min) m1 mm 80 80
Turning Radius Wa mm 1675 1820
Aisle Width for Pallets 1000 x 1200 Ast mm 2860 2880
Aisle Width for Pallets 800 x 1200 Ast mm 2810 2825
Tyre Type Polyurethane Polyurethane
Tyre Size (Front) mm   Ø267X114   Ø267X114
Tyre Size (Auxiliary Wheel) mm   Ø180X55   Ø180X55
Tyre Size (Driving Wheel) mm Ø343X135 Ø343X135
Wheels Quantity, front/rear (x=Diving Wheels)   2/1x+2   2/1x+2
Traveling Speed (laden/unladen) Km/h 10/12 10/12
Llfting Speed (laden/unladen) mm/s 270/375 270/375
Lowering Speed(aden/unladen) mm/s 300/270 310/260
Max. Gradient Performance S2 5min (laden/unladen) % 10/15 10/15
Service BrakeType Electromagnetic Electromagnetic
Parking Brake Type Electromagnetic Electromagnetic
Drive Motor Rating (AC) S2-60min kW 6.5 6.5
Lift Motor Rating (AC)S3-15% kw 12 12
Battery Voltage/Capacity K5 V/Ah   48/350   48/400
Battery Weight kg 650 710
Controller Brand CURTIS CURTIS
Controller Model 2-1234SE+1222 2-1234SE+1222
Sound Level Driver’s Ear According to EN 12053   dB 70 70
Battery Change Side Roll Out Side Roll Out

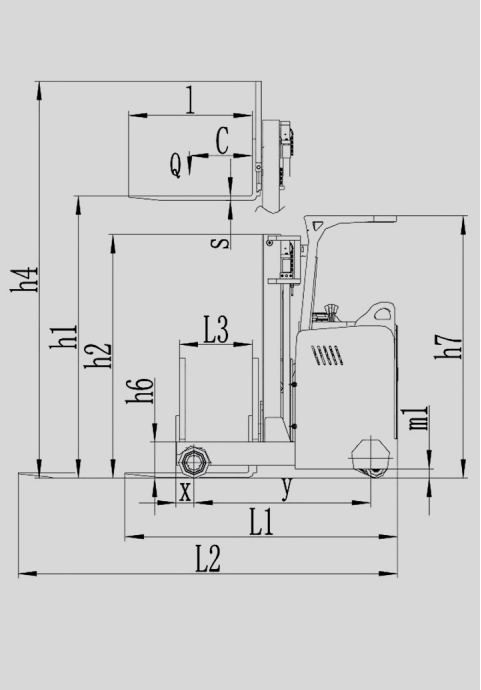

Structural Drawings

Structural Drawings

Product Details

SINOLIFT lithium iron-phosphate battery. Now available with Li-ION technology

Travel & load handling interlock

6000K Led Light LED

Front wheel brake Anti-skid control

Media Gallery

FAQ

  • What is an electric reach truck used for?

    Electric reach trucks are designed for lifting and storing goods in high racking systems, typically in warehouse or distribution center environments. They are ideal for navigating narrow aisles and are commonly used for stacking and retrieving pallets at significant heights.

  • What is the lifting capacity of an electric reach truck?

    Electric reach trucks generally have a lifting capacity ranging from 1,000 kg to 2,500 kg, depending on the model. The specific capacity depends on the design and intended application, so it's essential to choose a truck that meets your operational needs.

  • How high can an electric reach truck lift?

    The lifting height of an electric reach truck can vary by model, but most can lift loads to heights of 6 to 12 meters (approximately 20 to 40 feet). Some high-spec models may reach even higher, making them suitable for very tall racking systems.

  • Are electric reach trucks suitable for outdoor use?

    Electric reach trucks are primarily designed for indoor use in warehouses with narrow aisles and high racks. While they can be used outdoors on smooth, level surfaces, they are not designed for rough terrain. For outdoor environments, a more robust electric or diesel forklift is recommended.

  • How long do the batteries last in an electric reach truck?

    The battery life of an electric reach truck depends on usage, but under normal conditions, the battery can last a full shift (8 hours) on a single charge. Lithium-ion batteries, which are increasingly common, can be charged during breaks (opportunity charging) to extend operational time, reducing the need for long recharging periods.

Optional Extras

Li-on Battery (Lithium Phosphate Battery)

Opt for the Lithium Phosphate Battery (LiFePO₄) to power your electric pallet truck. This advanced battery technology delivers high safety, long cycle life, and stable performance, making it ideal for demanding operations. With fast charging, minimal maintenance, and eco-friendly benefits, it’s a perfect upgrade for multi-shift applications in modern warehouses and logistics.

Blue spot light

The blue spot light projects a visible beam on the ground, indicating the forklift’s direction of travel. This enhances safety by alerting nearby workers to the forklift’s movements, especially in busy environments.

Alarm Lamp
With an alarm lamp integrated into the design, this device offers a highly visible warning solution for forklifts and industrial vehicles. The bright, flashing light enhances safety by alerting personnel to the presence of the vehicle, especially in busy or low-visibility environments. Available in various colors, including amber, red, and blue, the alarm lamp can be customized to meet different safety requirements and regulations. Durable and weather-resistant, it ensures reliable performance in diverse working conditions, helping to prevent accidents and improve overall workplace safety.

Forklift Wireless Cameras

Forklift wireless cameras enhance safety and efficiency by providing real-time visual feedback to operators. These cameras offer a clear view of blind spots, load positioning, and surrounding areas, reducing the risk of accidents and improving load handling accuracy. Easy to install and compatible with most forklifts, they are ideal for busy warehouses, tight spaces, and high-traffic environments. With durable designs and wireless connectivity, they ensure reliable performance and seamless integration into your operations.

Reverse Alarm
The reverse alarm adds an important safety feature by emitting a loud sound when the stacker is moving in reverse. This alerts nearby personnel of the stacker’s movement, reducing the risk of collisions or accidents. The reverse alarm is especially useful in crowded environments, helping to keep both operators and others in the workspace aware of the stacker’s actions.

Mirror
Equipped with a mirror, this option improves rear visibility for the operator, enhancing safety when maneuvering in tight or crowded spaces.

Password lock
The password lock feature adds an extra layer of security by restricting access to authorized personnel only, preventing unauthorized use of the truck.

Cold store protection

Designed for extreme cold storage environments, this electric pallet truck is equipped with specialized features such as cold store oil, anti-slip platforms, and heated batteries. Built to operate seamlessly in low-temperature conditions, it ensures reliable performance and durability in harsh environments. With enhanced insulation and robust components, this version guarantees efficiency and safety in demanding cold storage applications.

Corrosion Conditioning
Designed with corrosion-resistant materials and coatings, this option is ideal for use in humid, salty, or chemically aggressive environments, ensuring long-term durability and reliable performance.
