CPD40M CPD45M CPD50M
CPD40M CPD45M CPD50M - Image 2
CPD40M CPD45M CPD50M - Image 3
CPD40M CPD45M CPD50M - Image 4
CPD40M CPD45M CPD50M - Image 5

CPD40M CPD45M CPD50M

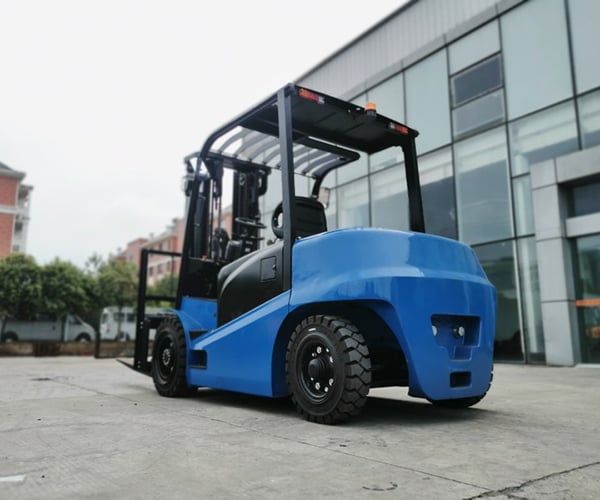

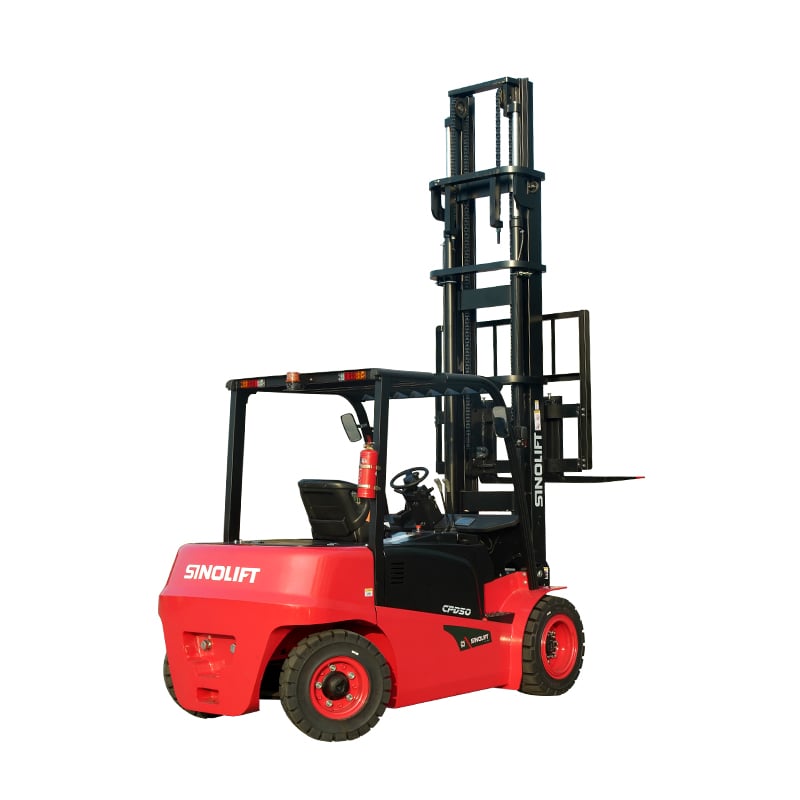

CPD40M CPD45M CPD50MFOUR WHEEL ELECTRIC FORKLIFT

The M series 4.0-5.0T forklift is designed for heavy-duty operations in demanding environments such as warehouses, manufacturing facilities, and logistics centers. Featuring a brushless and maintenance-free AC traction motor and AC pump motor, it ensures high energy efficiency and low maintenance costs. With advanced load-sensing hydraulic technology and self-braking on ramps, it offers superior reliability and safety. Its robust construction, excellent visibility, and industry-leading speeds make it ideal for maximizing productivity in harsh conditions, including exposure to moisture, heat, and dust.

Contact Us
Download

Features

Rated Load Capacity: 4.0-5.0 Ton (8800-11000 lbs)
Full AC System and wet disc brakes offer high energy efficiency with very low maintenance costs.
Designed to work in harsh environments with moisture, heat, and dust.
Powerful twin drive motors promise a high level of performance and productivity.
Highly energy-efficient for long working shifts in demanding operations.
Excellent visibility of the fork tips at any height for safe and confident driving and load handling.
Strong construction and proven components.
Industry-leading speeds.

Parameters

Mast model Lifting Height Load Capacity Overall Height (Mast Lowered) Max. Lifting Height (With backrest) Free Lift Mast Tilt Angle
4.0t 4.5t 5.0t 4.0t 4.5t 5.0t 4.0t 4.5t 5.0t 4.0t 4.5t 5.0t 4.0-5.0t
H Q H1 H2 H3 (α/β)
mm kg kg Kg mm mm mm mm mm mm mm mm mm  °
2M200 2000 4000 // // 1650 // // // // 150 // // 6/12
2M250 2500 4000 // // 1900 // // // // 150 // // 6/12
2M270 2700 4000 // // 2000 // // // // 150 // // 6/12
2M300 3000 4000 4500 5000 2150 4250 2250 4272 4280 4280 150 150 150 6/12
2M330 3300 4000 4500 5000 2300 4580 2400 4572 4580 4580 150 150 150 6/12
2M350 3500 4000 4500 5000 2400 4780 2500 4772 4780 4780 150 150 150 6/12
2M370 3700 4000 4450 4700 2500 4980 2600 4972 4980 4980 150 150 150 6/6                          *6/12
2M400 4000 4000 4350 4500 2700 5380 2800 5272 5380 5380 150 150 150 6/6                          *6/12
2M425 4250 3800 4250 4350 2825 5630 2925 5522 5630 5630 150 150 150 6/6                          *6/12
2M450 4500 3500 4150 4200 2950 5880 3050 5772 5880 5880 150 150 150 6/6                          *6/12
2M500 5000 3200 3700 3800 3200 6380 3300 6272 6380 6380 150 150 150 6/6                          *6/6
2M550 5500 2600 3100 3200 3500 6880 3600 6772 6880 6880 150 150 150 *3/6
2M600 6000 2400 2400 2600 3750 7380 3850 7272 7380 7380 150 150 150 *3/6
Mast model Lifting Height Load Capacity Overall Height (Mast Lowered) Max. Lifting Height (With backrest) Free Lift Mast Tilt Angle
4.0t 4.5t 5.0t 4.0t 4.5t 5.0t 4.0t 4.5t 5.0t 4.0t 4.5t 5.0t 4.0-5.0t
H Q H1 H2 H3 (α/β)
mm kg kg Kg mm mm mm mm mm mm mm mm mm  °
2FFM200 2000 4000 4500 5000 1650 1750 1750 1650 3288 3288 413 461 461 6/12
2FFM250 2500 4000 4500 5000 1900 2000 2000 1900 3788 3788 663 711 711 6/12
2FFM300 3000 4000 4500 5000 2150 2250 2250 2150 4288 4288 913 961 961 6/12
2FFM330 3300 4000 4500 5000 2300 2400 2400 2300 4588 4588 1063 1111 1111 6/12
2FFM350 3500 4000 4200 5000 2400 2500 2500 2400 4788 4788 1163 1211 1211 6/12
2FFM370 3700 4000 3900 4750 2500 2625 2625 2500 5038 5038 1263 1331 1331 6/12
2FFM400 4000 4000 3700 4600 2700 2800 2800 2700 5288 5288 1413 1511 1511 6/6                          *6/12
2FFM425 4250 3800 // // 2825 // // 2825 // // 1538 // // 6/6                          *6/12
2FFM450 4500 3500 // // 2950 // // 2950 // // 1663 // // 6/6                          *6/6
2FFM500 5000 3200 // // 3200 // // 3200 // // 1913 // // *3/6
2FFM550 5500 2600 // // 3500 // // 3500 // // 2163 // // *3/6
2FFM600 6000 2400 // // 3750 // // 3750 // // 2413 // // *3/6
Note: 1, (*) reprents the load capacity when with double front tyres
2,The service weight is the weight of truck with dual tyres: +110kg.
3, Free lifting height (without backrest): 4.0ton:+535mm, 4.5ton and 5.0ton:+547mm
4, Max. lifting height (without backrest): 4.0ton: -535mm, 4.5ton and 5.0ton: -547mm
3-Stage Wide-View Full Free Mast
Mast model Lifting Height Load Capacity Overall Height (Mast Lowered) Max. Lifting Height (With backrest) Free Lift Mast Tilt Angle
4.0t 4.5t 5.0t 4.0t 4.5t 5.0t 4.0t 4.5t 5.0t 4.0t 4.5t 5.0t 4.0-5.0t
H Q H1 H2 H3 (α/β)
mm kg kg Kg mm mm mm mm mm mm mm mm mm  °
3FFM360 3600 4000 4500 5000 1860 1950 1950 1860 4880 4880 623 661 661 6/6                          *6/6
3FFM400 4000 4000 4500 4700 1993 2083 2083 1993 5280 5280 756 794 794 6/6                          *6/6
3FFM435 4350 3300         *4000 4000 4300 2110 2200 2200 2110 5480 5480 873 911 911 6/6                          *6/6
3FFM450 4500 3000         *3500 3900 4200 2160 2250 2250 2160 5780 5780 923 961 961 6/6                          *6/6
3FFM480 4800 2700         *3200 3700 4000 2260 2350 2350 2260 6080 6080 1023 1061 1061 6/6                          *6/6
3FFM500 5000 2500         *3000 3600 3800 2327 2417 2417 2327 6280 6280 1090 1128 1128 3/6                          *6/6
3FFM550 5500 2000         *2500 2800 3200 2493 2583 2583 2493 6780 6780 1256 1294 1294 3/6                          *6/6
3FFM600 6000 1500         *2300 2200 2600 2710 2850 2850 2710 7280 7280 1473 1561 1561 3/6                          *6/6

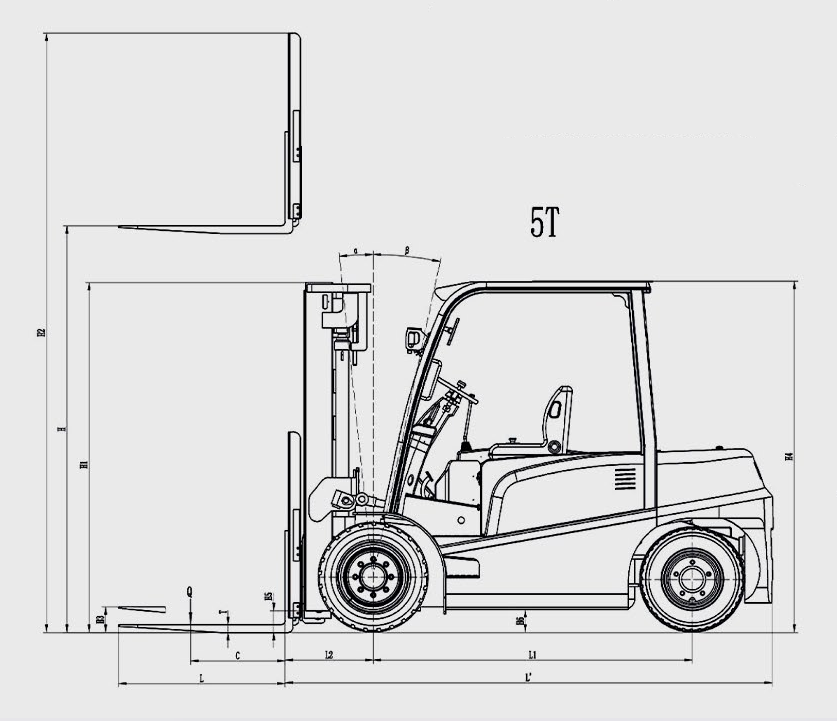

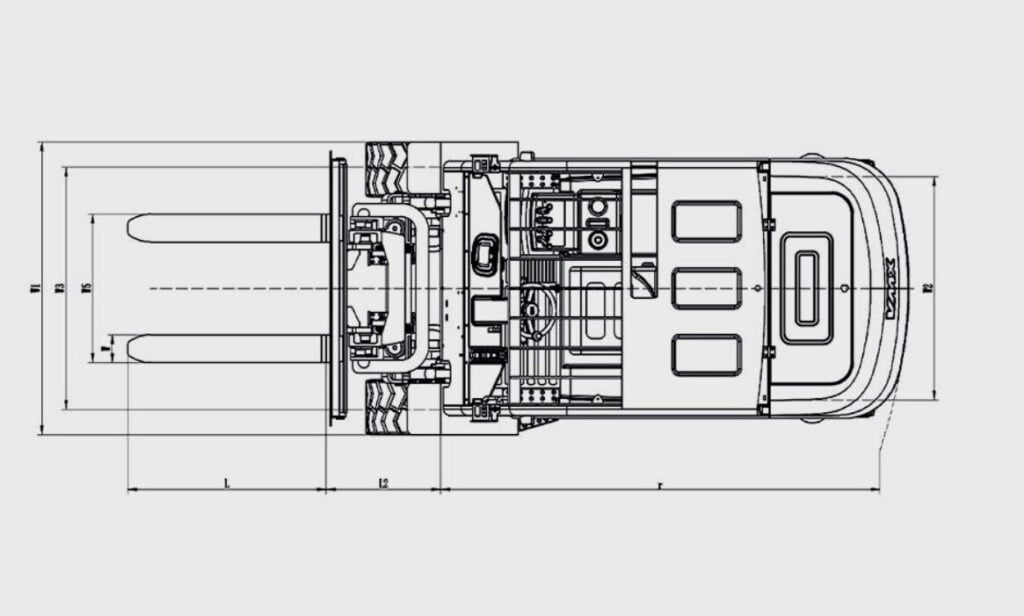

Structural Drawings

Structural Drawings

Product Details

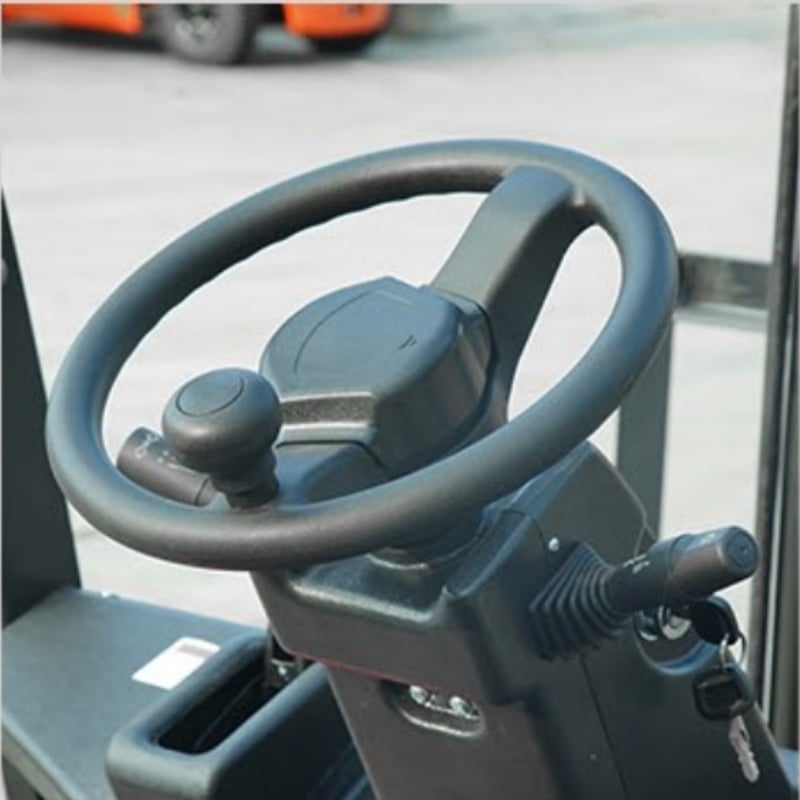

Fully hydrostatic power steering for excellent maneuverability It features a small-diameter steering wheel with an ergonomically optimized design. The fully hydrostatic power steering mechanism provides excellent maneuverability in the switchback operations. The steering knob synchronizer function is also included as a standard feature.

Stability support system The turn signal lever and lighting switch are integrated into one unit. It returns automatically to neutral when the steering wheel goes back to the straight-ahead position. Rear combination lights are located on the overhead guard for better visibility from behind in the workplace.

Horizontal battery extraction Optional horizontal extraction provides ease of access for battery removal/replacement to reduce downtime.

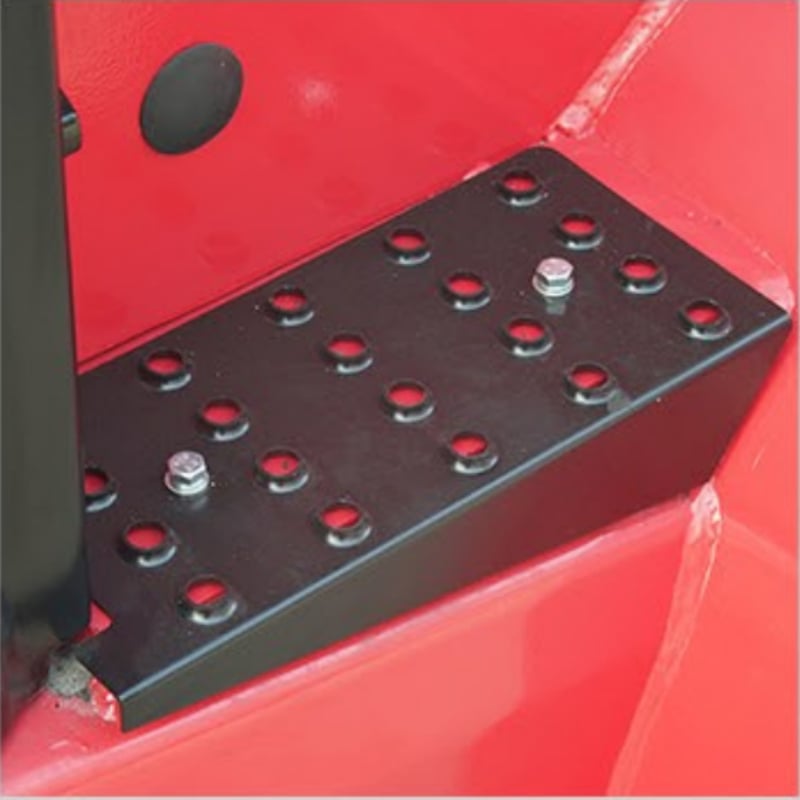

Optimized pedal position and Anti-Slip pad The position of accelerator and brake pedal have been optimized through human engineering.

Media Gallery

FAQ

  • What is the primary advantage of using a counter-balanced electric forklift over other types?

    Counter-balanced electric forklifts are versatile and can handle a wide range of materials both indoors and outdoors (on smooth surfaces). They offer zero emissions, quieter operation, and better maneuverability compared to internal combustion forklifts, making them ideal for warehouses and environmentally sensitive areas.

  • What is the maximum load capacity for a four-wheel electric counter-balanced forklift?

    The maximum load capacity for a four-wheel electric counter-balanced forklift typically ranges from 2.0 to 5.0 tons (4,400 to 11,000 lbs), depending on the model and configuration. These forklifts are designed for heavier loads and more demanding operations compared to three-wheel models, offering enhanced stability and durability. Factors such as battery capacity, mast type, and load center can influence the exact load capacity. For specific details, refer to the manufacturer's specifications or consult with a dealer.

  • How do I maintain the battery of a counter-balanced electric forklift?

    Charge the battery only when it drops to around 20-30% capacity. Avoid overcharging to prolong battery life. Regularly check electrolyte levels for lead-acid batteries. Ensure the charging area is well-ventilated and clean.

  • Can counter-balanced electric forklifts be used in outdoor environments?

    Yes, they can be used outdoors on flat, smooth surfaces. However, they are not ideal for uneven terrain or harsh weather conditions unless equipped with special tires or weather-resistant features.

  • What safety features are included in counter-balanced electric forklifts?

    Most models include: Stability systems to prevent tipping. Anti-rollback features for safe operation on slopes. Ergonomic controls to reduce operator fatigue. LED lights and alarms for enhanced visibility and awareness in busy warehouses.

Optional Extras

Li-on Battery (Lithium Phosphate Battery)

Opt for the Lithium Phosphate Battery (LiFePO₄) to power your electric pallet truck. This advanced battery technology delivers high safety, long cycle life, and stable performance, making it ideal for demanding operations. With fast charging, minimal maintenance, and eco-friendly benefits, it’s a perfect upgrade for multi-shift applications in modern warehouses and logistics.

Blue spot light

The blue spot light projects a visible beam on the ground, indicating the forklift’s direction of travel. This enhances safety by alerting nearby workers to the forklift’s movements, especially in busy environments.

Lead-Acid Batteries of BigCapacities (48V/600Ah and 48V/700Ah)

This option allows you to choose lead-acid batteries of varying capacities to suit your specific needs. Larger capacity batteries are ideal for intensive use, providing longer operational times, while smaller batteries are perfect for lighter tasks, reducing weight and space requirements. This flexibility ensures efficient power usage and helps optimize cost-effectiveness based on varying workload demands.

Non-marking tyre
Non-marking tyres are designed to leave no traces on sensitive flooring, making them ideal for use in clean environments like food processing plants or retail spaces. They offer excellent traction and durability without compromising floor integrity.

Front Dual Tyre
The front dual tyre configuration enhances stability and weight distribution, allowing the forklift to carry heavier loads with improved balance. This option is ideal for environments that require handling large or heavy items, providing better traction and reducing the risk of tipping.

SE Tyre
SE tyres are designed for durability and performance on rough surfaces, making them suitable for heavy-duty operations in rugged environments. They improve the forklift’s stability and extend the lifespan of the tyres, ensuring reliable performance over extended periods of use.

Cold store protection

Designed for extreme cold storage environments, this electric pallet truck is equipped with specialized features such as cold store oil, anti-slip platforms, and heated batteries. Built to operate seamlessly in low-temperature conditions, it ensures reliable performance and durability in harsh environments. With enhanced insulation and robust components, this version guarantees efficiency and safety in demanding cold storage applications.

4.Alarm Lamp
With an alarm lamp integrated into the design, this device offers a highly visible warning solution for forklifts and industrial vehicles. The bright, flashing light enhances safety by alerting personnel to the presence of the vehicle, especially in busy or low-visibility environments. Available in various colors, including amber, red, and blue, the alarm lamp can be customized to meet different safety requirements and regulations. Durable and weather-resistant, it ensures reliable performance in diverse working conditions, helping to prevent accidents and improve overall workplace safety.

Reverse Alarm
The reverse alarm adds an important safety feature by emitting a loud sound when the stacker is moving in reverse. This alerts nearby personnel of the stacker’s movement, reducing the risk of collisions or accidents. The reverse alarm is especially useful in crowded environments, helping to keep both operators and others in the workspace aware of the stacker’s actions.

Mirror
Equipped with a mirror, this option improves rear visibility for the operator, enhancing safety when maneuvering in tight or crowded spaces.

Rear Lighting System
The rear lighting system provides enhanced visibility for the operator when driving in low-light or night-time conditions. This system improves safety by alerting surrounding personnel of the truck’s presence, reducing the risk of accidents in busy or dimly lit work environments.

Wide or Higher Load Backrest
The option for a wider or higher load backrest improves load stability during transport, preventing items from shifting or falling. It is particularly useful when handling tall or bulky loads, ensuring the safety of both the operator and the goods being moved.

Full Closed Cabin
The full closed cabin provides protection from environmental elements, ensuring comfort and safety for operators working outdoors or in harsh weather conditions. This option is ideal for cold storage or outdoor operations, maintaining a stable working environment regardless of the external weather.

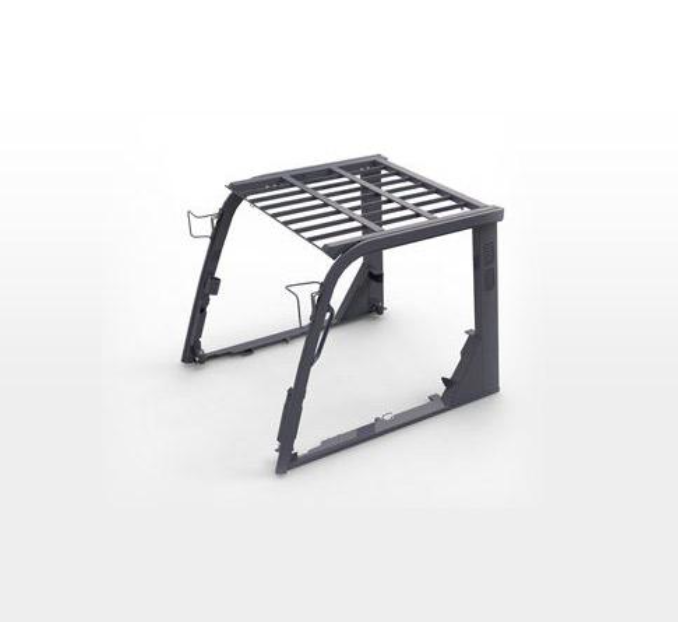

Overhead Guards
Engineered protection against falling objects with high/low configurations. Maintains optimal visibility while meeting all safety standards.

Triple/Quadruple Multiway Valves
Precision hydraulic valves for efficient lifting/tilting control, with triple valves for single-acting and quadruple for double-acting cylinders. Ensures reliable performance in demanding conditions.

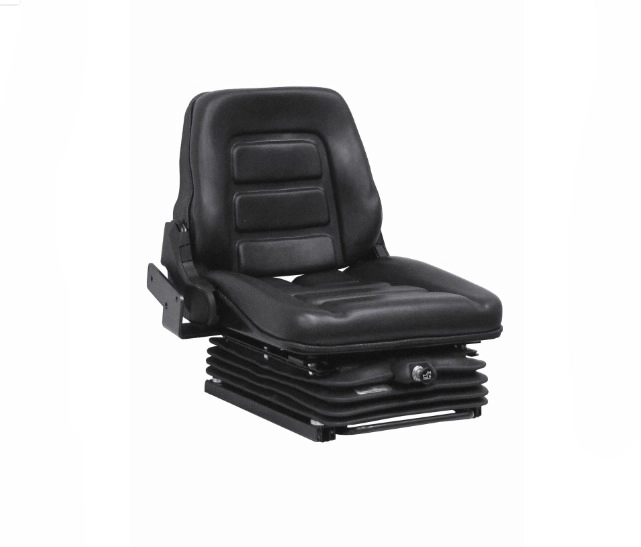

Suspension Seat
The suspension seat offers superior comfort by absorbing shocks and vibrations, reducing fatigue during long shifts. This feature is particularly beneficial for operators working on rough terrain or uneven surfaces, ensuring a smoother ride and enhancing productivity.

Fire Extinguisher
This quick-release, vehicle-mounted fire extinguisher is specifically designed for forklifts, featuring OSHA-compliant construction for industrial safety. Its easy-access mounting and instant activation ensure rapid response to engine, battery or electrical fires. The compact yet powerful system provides reliable protection for operators and equipment in critical situations. Vibration-resistant brackets keep the unit securely in place during all forklift operations.
