CBE50Z 5T
CBE50Z 5T Heavy Duty Electric Pallet Truck – AC Motor, 320Ah Battery, Warehouse & Dock Use
The TRH50 is a heavy-duty power pallet truck with 5T load capacity, ideal for middle/short-distance material handling in factories, warehouses, and docks. Its brushless AC motor and intelligent regenerative braking ensure minimal maintenance and extended battery life. The ergonomic padded armrest, deadman brake, and overload protection enhance safety and reduce operator fatigue. With a 320Ah battery and 2.2KW motor, it delivers high efficiency for long shifts. Features like stepless speed control, LED power display, and optional adjustable handle cater to diverse operational needs.
Features
- Key Features:
- 5-ton heavy-duty capacity for demanding industrial applications
- 2.2KW AC motor with intelligent regenerative braking system
- 320Ah high-capacity battery provides 6-8 hours continuous operation
- Ergonomic design reduces operator fatigue during long shifts
- Advanced safety systems including deadman brake and overload protection
Watch the video to see how the CBE50Z delivers:
- Smooth acceleration and precise control
- Excellent maneuverability in tight spaces
- Reliable performance with minimal maintenance
Parameters
| Model | CBE50Z | |
| Load capacity | kg | 5000 |
| Load center distance | mm | 600 |
| Min./max. lifting height | mm | 150-250 |
| Single fork width | mm | 230 |
| Fork length/width | mm | 1200/685 |
| Running speed (no load/full load) | km/h | 3.5/2.0 |
| Lifting speed (no load/full load) | mm/s | 15/30 |
| Descent speed (no load/full load) | mm/s | 20/18 |
| Driving wheel (PU) | mm | Φ260*150 |
| Front wheel (PU) | mm | Φ100*100 |
| Balance wheel (PU) | mm | Φ100*45 |
| Driving motor | w | 1800 |
| Steering motor | W | 1500 |
| Hydraulic unit specifications | w | 3000 |
| Battery | Ah | D-420 |
| Control mode | Hand control | |
| Speed control system | Stepless speed regulation | |
| Min. turning radius | mm | 1400 |
| Overall dimensions | mm | 2250*880*1400 |
| Net weight | kg | 1360 |
Product Details
Power & Safety
Emergency Power Off Turn the key and reset the emergency switch to start. Press the red cutoff button in emergencies—gentle rotation reactivates it. Avoid excessive force to prevent damage

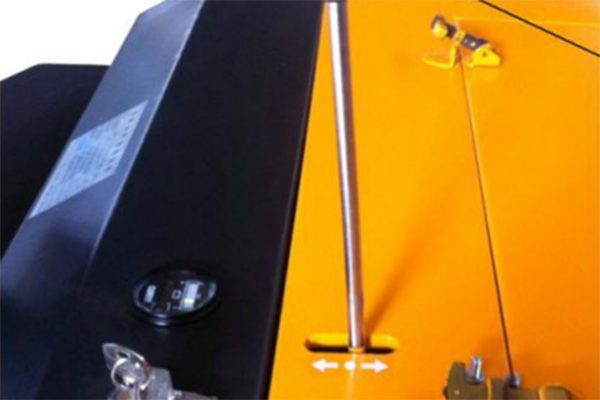

Hydraulic Control Lever
This lever precisely controls fork movement: Push forward to raise the forks via hydraulic pressure, or pull back to lower them gradually. Its ergonomic design ensures smooth, responsive operation during load handling.
Premium Hydraulic Pump Station
Equipped with a high-performance pump to ensure smooth and powerful fork lifting. Its optimized hydraulic system delivers consistent performance for heavy-duty operations.
Drive & Steering System
This heavy-duty electric pallet truck features a 3-stage gear reduction drive with horizontal motor layout. The swivel drive head rotates 180° via steering gears, while elastic balancing wheels ensure stability on uneven surfaces during turns.
FAQ
-
Does this electric pallet truck have regenerative braking?
Yes, it features an intelligent regenerative braking system, which improves efficiency and extends battery life by recovering energy during deceleration. -
Is the CBE50Z suitable for outdoor use?
While primarily designed for indoor environments (warehouses, factories), its robust construction allows limited outdoor use on smooth surfaces like loading docks. -
What safety features does this pallet truck have?
Key safety features include a deadman brake, overload protection, emergency power cutoff, and an ergonomic handle with padded armrest for operator comfort. -
What is the load capacity of the CBE50Z electric pallet truck?
The CBE50Z has a 5-ton (5000 kg) load capacity, making it ideal for heavy-duty material handling in warehouses, docks, and factories. -
Do you need a licence for an electric pallet truck?
You don’t necessarily require a driving licence to operate a pallet. But depending on your location, you must have certification to operate electric pallet trucks. In the US, OSHA does not require certification for using electric pallet trucks. However, they recommend that companies establish a certification program for their employees. The individual certification will come upon completion of the course. Some courses may have an expiration date, so you might have to take the course again in the future.
Optional Extras

Li-on Battery (Lithium Phosphate Battery)
Opt for the Lithium Phosphate Battery (LiFePO₄) to power your electric pallet truck. This advanced battery technology delivers high safety, long cycle life, and stable performance, making it ideal for demanding operations. With fast charging, minimal maintenance, and eco-friendly benefits, it’s a perfect upgrade for multi-shift applications in modern warehouses and logistics.

Load backrests
When goods are stacked high, the load backrest can prevent it from falling, ensuring user and items safety. To protect the operator from falling objects, electric pallet trucks and stackers have an overhead guard. Electric Pallet Truck with load Backrest for using the boxes and taller loads to be moved safely and easily.

With scale (printer
Electric pallet truck equipped with an integrated scale and printer allows operators to weigh loads while moving them and print labels on the spot. Perfect for logistics and warehousing, it enhances efficiency and accuracy in inventory management.

Cold store version
Designed for extreme cold storage environments, this electric pallet truck is equipped with specialized features such as cold store oil, anti-slip platforms, and heated batteries. Built to operate seamlessly in freezing conditions, it ensures reliable performance and durability in harsh environments. With enhanced insulation and robust components, this version guarantees efficiency and safety in demanding cold storage applications.

Smart Charger for Electric Pallet Trucks
This intelligent charger automatically optimizes voltage and current with multi-stage charging technology to maximize battery performance and lifespan. Featuring advanced protection systems, it delivers fast, safe, and efficient charging tailored for industrial applications. The smart charging management reduces downtime while maintaining optimal battery health. An ideal solution to keep your electric pallet trucks operating at peak efficiency.

Wheels
PU wheels
Polyurethane wheels have a lower rolling resistance, making them easier to pull compared to nylon wheels. They are ideal for use on soft floor types like laminated and polished tile, as they are long-lasting and durable.
Nylon wheels
Nylon wheels, on the other hand, are better suited for harsh and debris-filled environments. They are tougher, more durable and less likely to suffer damage than polyurethane wheels when used in cold storage, wet, or rough floors.

Customized Fork Solutions
This electric pallet truck offers fully customizable fork options, including lengths, widths, extensions, and carriages, tailored to meet specific operational needs. Whether handling heavy loads, oversized items, or unique shapes, these features ensure optimal performance, safety, and efficiency. Additionally, customized stall shelves maximize storage space and improve organization, streamlining your operations for versatile material handling in any workspace.

pin-code handle
The key pad access handle integrates a digital keypad into the handle, requiring a unique PIN to operate the truck. This ensures only authorized personnel can access the equipment, adding a layer of security against unauthorized use. Ideal for warehouses, manufacturing facilities, or shared settings, it prevents theft, misuse, and errors. Combined with Personal PIN-CODE settings, it offers a secure yet user-friendly access control solution for authorized operators.
