CBD20E

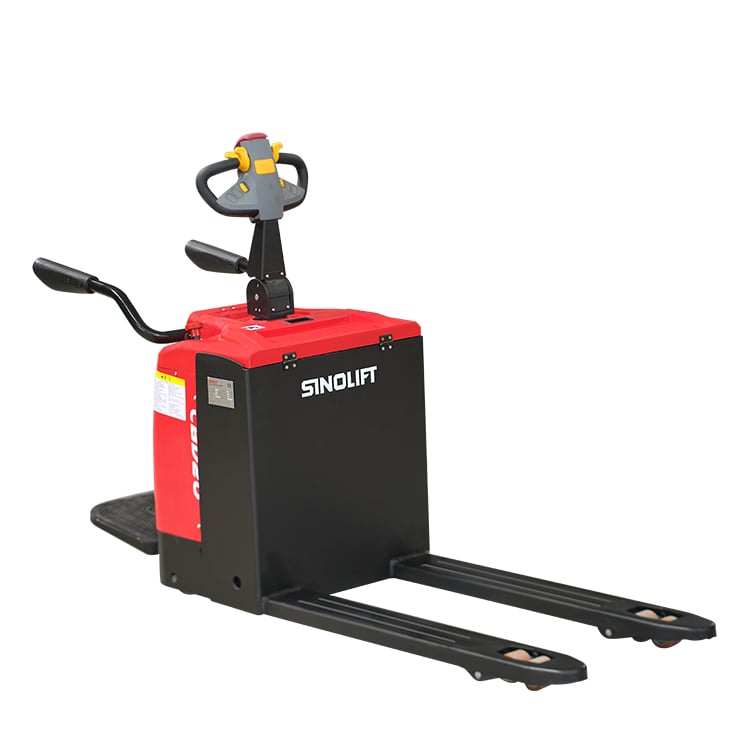

Sinolift China high power drive motor CBD20E CBD25E CBD30E electric pallet jack for material handling
The SINOLIFT M-Series(CBD20E/CBD25E/CBD30E) electric pallet trucks, available in 2.0 to 3.0 ton models, are designed to maximize productivity and comfort in material handling operations. Featuring advanced traction, damping, stability, and ergonomic controls, these trucks ensure fast, safe, and confident operation in various conditions. Ideal for loading/unloading, transport, and order picking, they offer excellent visibility, ease of use, and high maneuverability. Built on SINOLIFT’s legacy of reliability, these trucks can handle loads up to 3,300 kg, making them a versatile and efficient choice for warehouse and industrial environments.
Features
Premium Air Spring: Features excellent sealing to prevent leaks, ensuring precision and stable performance.
Durable Materials: Built with robust materials, a metal shell, and reinforced forks for greater durability and extended service life.
Emergency Stop Button: Powers off the unit and engages the brake in emergencies, ensuring safety.
Intelligent Workbench: Includes an electric meter, timer, emergency button, and key switch for easy operation and maintenance.
Excellent Gradeability: Supports a 5% gradeability at full load, powered by a high-speed motor with a strong core.
Foldable Platform with Speed Sensor: Hidden shock-absorbing pedal provides comfort when standing, and the foldable platform allows easy maneuverability and a small turning radius, ideal for narrow spaces.
Reinforced Loading Wheels: Available in durable steel or polyurethane to reduce pallet wear, with smooth, rounded fork tips for proper alignment during entry.
Parameters
| Model | CBD20E | CBD25E | CBD30E | ||
| Power Type | Electric | Electric | Electric | ||
| Type of Operation | Stand-on | Stand-on | Stand-on | ||
| Load Capacity/Rated Load | Q | kg | 2000 | 2500 | 3000 |
| Load Center Distance | C | mm | 600 | 600 | 600 |
| Wheel base | y | mm | 1400 | 1480 | 1480 |
| Total Weight (with battery) | kg | 585 | 790 | 815 | |
| Overall Width | W1 | mm | 720 | 790 | 790 |
| Fork Dimension | l/e/s | mm | 1200×160×50 | 1220×185×50 | 1220×185×50 |
| Width of Fork | b2 | mm | 540/685 | 550/685 | 550/685 |
| Min. Fork Height | h3 | mm | 85 | 85 | 85 |
| Lift Height | h2 | mm | 205 | 205 | 205 |
| Ground Clearance at Center of Wheelbase | m1 | mm | 35 | 45 | 45 |
| Height of Operating Handlebar (Min./Max.) | h14 | mm | 1000/1450 | 1000/1450 | 1000/1450 |
| Turning Radius(Pedal Retracted/Expanded) | Wa | mm | 1675/2110 | 1665/2150 | 1665/2150 |
| Tyre Type | Polyurethane | Polyurethane | Polyurethane | ||
| Tyre Size (Front) | mm | φ80×60 | φ80×80 | φ80×80 | |
| Tyre Size (Auxiliary Wheel) | mm | φ115×55 | φ115×55 | φ115×55 | |
| Tyre Size (Driving Wheel) | mm | φ230×75 | φ230×75 | φ230×75 | |
| Traveling Speed (Laden/Unladen) | km/h | 6/6 | 5/6 | 5/6 | |
| Lifting Speed (Laden/Unladen) | mm/s | 20/25 | 20/25 | 20/25 | |
| Lowering Speed (Laden/Unladen) | mm/s | 30/26 | 30/26 | 30/26 | |
| Max.Gradient Performance (Laden/Unladen) | % | 5/10 | 5/8 | 5/8 | |
| Drive Motor Rating (AC) S2 60min | kW | 1.2 | 1.5 | 1.5 | |
| Lift Motor Rating (DC) S3 -15% | kW | 0.8 | 2.2 | 2.2 | |
| Battery Voltage/Capacity K5 | V/Ah | 24/210 | 24/210 | 24/240 | |
| Battery Weight | kg | 188 | 188 | 210 | |
| Controller Brand | ZAPI | CURTIS | CURTIS | ||
| Controller Model | AC-0 | 1232E | 1232E | ||
| Sound Levelat Driver’s Ear According to EN 12 053 | dB | 70 | 70 | 70 |
Structural Drawings
Structural Drawings
Product Details
Media Gallery
FAQ
-
How to Choose the Right Electric Pallet Truck for Your Needs？
Determine Your Maximum Lifting Capacity: Assess the heaviest loads you will be handling to identify the required lifting capacity.Establish Daily Operating Hours: Consider how many continuous hours each day the truck will need to operate. -
Do you provide electric pallet trucks suitable for tailboard lifts and container trucks?
Yes, we offer a comprehensive range of electric pallet trucks designed for safe and reliable use on all tailboard lifts and container trucks. Our official website provides detailed information on the parameters of each model, please feel free to contact our sales staff for more special customisation needs!
Optional Extras
Customized Fork Solutions
This electric pallet truck offers fully customizable fork options, including lengths, widths, extensions, and carriages, tailored to meet specific operational needs. Whether handling heavy loads, oversized items, or unique shapes, these features ensure optimal performance, safety, and efficiency. Additionally, customized stall shelves maximize storage space and improve organization, streamlining your operations for versatile material handling in any workspace.
Lithium-ion Battery
Lithium-ion batteries are a game-changer in material handling equipment, offering high energy density, lightweight design, and fast charging capabilities. Compared to traditional lead-acid batteries, they provide up to 30% more efficiency, longer lifespan, and require minimal maintenance. Ideal for multi-shift operations, they support fast charging without the need for battery swaps, reducing downtime. With superior performance, compact size, and eco-friendly benefits, lithium-ion batteries are the perfect choice for modern warehouses and logistics, ensuring productivity and cost savings.
Sideway battery extraction
Designed for multi-shift operations, the high-capacity battery features a sideway extraction system on rollers, enabling quick and effortless battery changes. This ensures minimal downtime and maximizes productivity in demanding work environments.
Load backrest
When goods are stacked high, the load backrest can prevent it from falling, ensuring user and items safety. To protect the operator from falling objects, electric pallet trucks and stackers have an overhead guard. Electric Pallet Truck with load Backrest for using the boxes and taller loads to be moved safely and easily.
Automatic charger
The automatic charger provides a convenient and efficient charging solution for your electric pallet truck. It automatically manages the charging process, optimizing battery health and extending its lifespan. Perfect for busy operations, it reduces downtime and ensures your equipment is always ready for use.
