  5. 1.5ton 2 ton Narrow aisle CQD15B 20B Electric Reach stand Forklift Truck

CBD15Z

CBD15Z Sinolift Self-Propelled Electric Pallet truck

The Self-Propelled Electric Pallet Jack enhances productivity with a robust 4,400 lb. capacity and smooth-rolling polyurethane wheels, perfect for warehouses, retail stores, and distribution centers. Its intuitive multi-function hand control, variable-speed operation, and automatic safety braking ensure effortless and secure load handling. The high-torque 24V motors and long-lasting 48V battery provide up to 8 hours of runtime for uninterrupted workflow. With a compact turning radius and ergonomic design, it maximizes maneuverability while reducing operator fatigue. Ready to use out of the box, this pallet jack is built for efficiency and durability in demanding material handling tasks.

Features

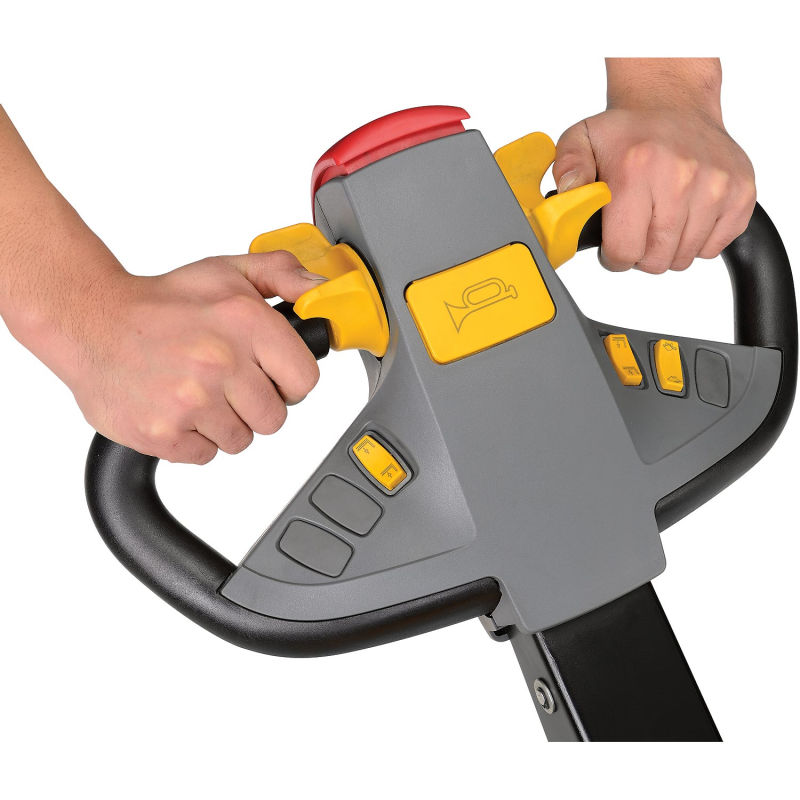

  • Key Features Shown:4,400 lb Capacity – Smoothly handles heavy loads with stability

    0.7KW Drive & 0.8KW Lift Motors – Reliable power for efficient operation

    3-5/16″ to 8″ Fork Height – Adapts easily to standard pallets

    8-Hour Runtime – Long-lasting productivity per charge

    Safety First – Includes electromagnetic brake and emergency stop



    Ideal for warehouses, retail stores, and distribution centers, this electric pallet truck is built for durability and daily material handling tasks.

Parameters

FeatureUnitValue
Load Capacity Qkg2000
Max Fork Height h2mm193
Load Center Cmm600
Min Height of Forks h1mm75
Overall Width Bmm723
Overall Length Lmm1715
Wheel Base Ymm1280
Min Steering Radius Wamm1465
Overall Width of Forks b1mm630
Gradability4%
Fork Dimensions (s/e/l)mm50/160/1195
Balancing WheelmmØ75×35
Front WheelmmØ74×93
Driving WheelmmØ190×70
Travel Speed, Loaded/UnloadedKm/h2.5/3.5
Driving MotorW850
Lift MotorW840
BatteryV/Ah12/45*4
Net Weightkg255



Product Details

Media Gallery

FAQ

  • What is an electric pallet truck?

    An electric pallet truck is a battery-powered material handling equipment designed to lift and transport palletized loads with minimal manual effort. It features a fork assembly to slide under pallets, powered lifting/lowering functions, and self-propelled movement for efficient warehouse operations.
  • What are the motor specifications of the CBD15Z electric pallet truck?

    The CBD15Z is equipped with a 0.7 KW (0.94 HP) drive motor and a 0.8 KW (1.07 HP) lift motor, providing efficient movement and lifting power for loads up to 4,400 lbs.
  • How high can the CBD15Z lift pallets?

    This model offers a lowered fork height of 3-5/16" (84 mm) and can raise pallets up to 8" (203 mm), making it suitable for standard loading dock and warehouse operations.
  • What is the typical operating time per battery charge?

    The CBD15Z provides a minimum of 8 hours of continuous service per full charge, depending on load weight and frequency of use.
  • What warranty coverage comes with this pallet truck?

    The CBD15Z is backed by a 1 Year Limited Warranty that covers manufacturing defects and component failures under normal operating conditions.

Optional Extras

Li-on Battery (Lithium Phosphate Battery)

Opt for the Lithium Phosphate Battery (LiFePO₄) to power your electric pallet truck. This advanced battery technology delivers high safety, long cycle life, and stable performance, making it ideal for demanding operations. With fast charging, minimal maintenance, and eco-friendly benefits, it’s a perfect upgrade for multi-shift applications in modern warehouses and logistics.

Load backrests

When goods are stacked high, the load backrest can prevent it from falling, ensuring user and items safety. To protect the operator from falling objects, electric pallet trucks and stackers have an overhead guard. Electric Pallet Truck with load Backrest for using the boxes and taller loads to be moved safely and easily.

With scale (printer

Electric pallet truck equipped with an integrated scale and printer allows operators to weigh loads while moving them and print labels on the spot. Perfect for logistics and warehousing, it enhances efficiency and accuracy in inventory management.

Cold store version

Designed for extreme cold storage environments, this electric pallet truck is equipped with specialized features such as cold store oil, anti-slip platforms, and heated batteries. Built to operate seamlessly in freezing conditions, it ensures reliable performance and durability in harsh environments. With enhanced insulation and robust components, this version guarantees efficiency and safety in demanding cold storage applications.

Smart Charger for Electric Pallet Trucks

This intelligent charger automatically optimizes voltage and current with multi-stage charging technology to maximize battery performance and lifespan. Featuring advanced protection systems, it delivers fast, safe, and efficient charging tailored for industrial applications. The smart charging management reduces downtime while maintaining optimal battery health. An ideal solution to keep your electric pallet trucks operating at peak efficiency.

Wheels

PU wheels

Polyurethane wheels have a lower rolling resistance, making them easier to pull compared to nylon wheels. They are ideal for use on soft floor types like laminated and polished tile, as they are long-lasting and durable.

Nylon wheels

Nylon wheels, on the other hand, are better suited for harsh and debris-filled environments. They are tougher, more durable and less likely to suffer damage than polyurethane wheels when used in cold storage, wet, or rough floors.

Customized Fork Solutions
This electric pallet truck offers fully customizable fork options, including lengths, widths, extensions, and carriages, tailored to meet specific operational needs. Whether handling heavy loads, oversized items, or unique shapes, these features ensure optimal performance, safety, and efficiency. Additionally, customized stall shelves maximize storage space and improve organization, streamlining your operations for versatile material handling in any workspace.

pin-code handle

The key pad access handle integrates a digital keypad into the handle, requiring a unique PIN to operate the truck. This ensures only authorized personnel can access the equipment, adding a layer of security against unauthorized use. Ideal for warehouses, manufacturing facilities, or shared settings, it prevents theft, misuse, and errors. Combined with Personal PIN-CODE settings, it offers a secure yet user-friendly access control solution for authorized operators.
