ACG series Galvanized Hand Pallet Truck
ACG series Galvanized Hand Pallet Truck - Image 2
ACG series Galvanized Hand Pallet Truck - Image 3
ACG series Galvanized Hand Pallet Truck - Image 4
ACG series Galvanized Hand Pallet Truck - Image 5
ACG series Galvanized Hand Pallet Truck - Image 6
ACG series Galvanized Hand Pallet Truck - Image 7
ACG series Galvanized Hand Pallet Truck - Image 8

ACG series Galvanized Hand Pallet Truck

AGC Galvanized Pallet Truck for Corrosive & Cold Room Environments | Hygienic, Durable, Leak-Resistant | Ideal for Food, Dairy & Pharmaceutical Industries

The Sinolift AGC Galvanized Pallet Truck is designed for use in harsh environments such as cold rooms, clean rooms, and corrosive settings. It features a fully galvanized chassis, chrome-plated piston and valve, and a leak-resistant pump, ensuring durability in moisture-prone areas. With nylon steer wheels and load rollers, it offers smooth movement and is ideal for hygienic and food processing industries. The ergonomic handle allows for smooth, stepless lowering of the truck. This robust pallet truck weighs approximately 85kg and is built for long-lasting, corrosion-resistant performance.

Contact Us
Download

Features

The AGC Galvanized Pallet Truck is designed for use in harsh conditions like cold rooms, clean rooms, and corrosive environments. Featuring a fully galvanized chassis, chrome-plated piston and valve, and a leak-resistant pump, it offers excellent durability and corrosion resistance. With nylon steer wheels and load rollers, it ensures smooth and efficient pallet handling, making it perfect for industries like food processing, dairy, and pharmaceuticals. Watch to see how this reliable pallet truck performs in challenging environments.

Parameters

Model ACG25 ACG30
Load capacity kg 2500 3000
Load center mm 600 600 600 600
Min. fork height mm 85 85 85 85
Max. fork height mm 200 200 200 200
Steering wheel mm Φ180×50 Φ180×50 Φ180×50 Φ180×50
Load roller Single mm Φ82×93 Φ74×93 Φ82×93 Φ74×93
Load roller Tandem mm Φ80×70 Φ80×70 Φ80×70 Φ80×70
Size of fork mm 160×50 160×50 160×50 160×50
Width overall forks mm 550 685 550 685
Fork length mm 1150 1220 1150 1220
Overall length mm 1580 1650 1580 1650
Turning radius mm 1325 1395 1325 1395
self weight kg 72 79 72 79

Product Details

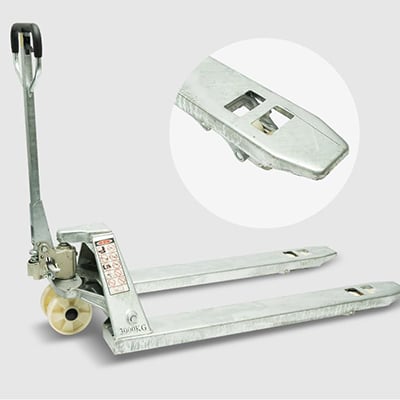

Thickened Steel / Strong and Durable

Thickened Steel / Strong and Durable

The fork adopts the processing technology of integral stamping. The frame is thickened, and the high-strength steel plate ensures that the heavy load does not deform the fork.

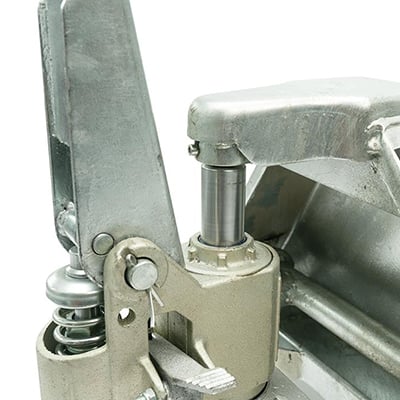

Galvanized Cast Pump Jack

Galvanized Cast Pump Jack

The entire cast pump jack offers better sealing and prevents oil leakage.

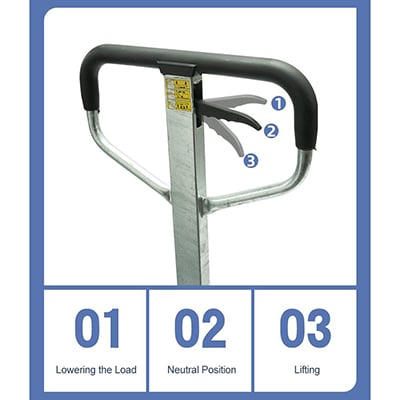

Ergonomic Handle

Ergonomic Handle

The handle feels comfortable, and the pressure relief valve is within reach, reducing operating effort, improving work efficiency, and allowing for controllable descending speed, ensuring safer use.

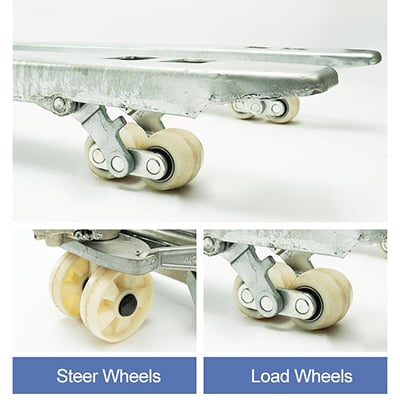

Durable Nylon Wheels

The galvanized bottom strengthens the structure. The back forks are reinforced to increase durability and prevent deformation, providing the operator with added safety.

Media Gallery

FAQ

  • What is hot-dip galvanizing, and how does it protect steel from corrosion?

    Hot-dip galvanizing is a process where steel is immersed in molten zinc (at least 98% pure) to form a metallurgically bonded zinc-iron alloy layer and an outer pure zinc coating. This provides corrosion resistance by creating a protective barrier and sacrificial action, where the zinc layer corrodes instead of the steel. The coating is abrasion-resistant, covers all surfaces evenly, and ensures long-lasting, maintenance-free protection, even in harsh environments. It is ideal for structural and industrial applications requiring durability.

  • What’s the difference between hot galvanization and cold galvanization?

    Hot-dip galvanizing is a chemical process involving electrochemical reactions, forming a thick, durable zinc layer that covers both the interior and exterior of the material, offering superior corrosion protection. In contrast, cold galvanizing is a physical method that applies a zinc-rich paint layer. The coating is thin, generally within 5-30 µm, so the corrosion resistance is relatively weak, and the zinc layer is prone to falling off. In the heavy industrial sector, hot-dip galvanizing remains the preferred choice for heavy-duty applications due to its unmatched durability and long-term protection.
