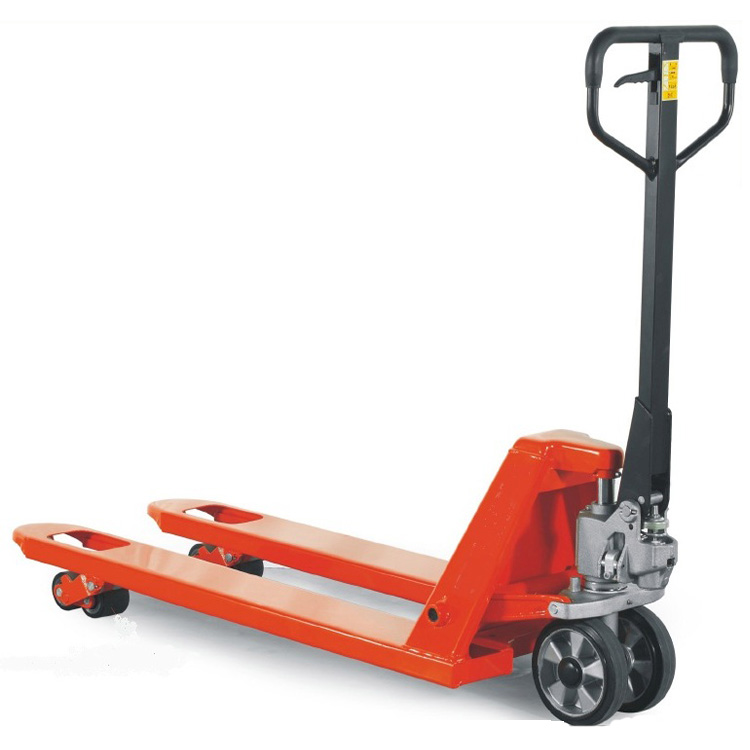

AC sereis Hand Pallet Truck
AC Heavy-Duty Hydraulic Pallet Truck with 2000kg Capacity/210° Steering/Leak-Proof Pump
This heavy-duty pallet truck is built for demanding industrial environments, featuring a full hydraulic system with leak-proof technology for reliable operation. Its 210° steering radius ensures exceptional maneuverability in tight spaces, while polyurethane wheels and overload protection guarantee durability. Perfect for warehouses, factories, and logistics centers, the truck includes grease fittings at all pivot points for easy maintenance and comes with optional wheel/roller configurations to handle various loads.
Features
The AC Heavy-Duty Hydraulic Pallet Truck is engineered for tough industrial applications, delivering top-notch performance in warehouses, factories, and logistics centers. Designed with a robust full hydraulic system, it boasts a leak-proof pump, ensuring smooth, reliable operation even under heavy use. The truck’s 210° steering radius provides superior maneuverability, allowing operators to easily navigate tight spaces and congested areas. Equipped with durable polyurethane wheels, this pallet truck is built to withstand the rigors of daily use while providing a smooth ride over various surfaces.
The truck’s overload protection feature ensures that it can handle heavy loads without compromising safety, while the grease fittings at all pivot points make maintenance hassle-free. Whether you’re lifting light or heavy materials, the AC Heavy-Duty Hydraulic Pallet Truck offers customizable wheel and roller configurations to suit different load requirements.
Built for long-lasting durability, this pallet truck is a reliable solution for enhancing operational efficiency and safety in demanding environments. From improving productivity in factories to optimizing logistics in distribution centers, the AC Heavy-Duty Hydraulic Pallet Truck is an indispensable tool for any industrial setting.
Parameters
| Type of Machine | Pallet Truck(AC -2.5 Ton) |
| Hand Pallet Truck | Europe are double fork wheels |
| Min Fork Height | 85mm |
| Big Steering Wheel | 180*50mm |
| Fork Wheel | 80*70mm |
| Fork Width | 550mm |
| Single Fork Width | 160mm |
| Warranty | 6 months |
| Capacity | 2500kg |
| Min.Fork Height | 85 mm |
| Max. Fork Height | 200mm |
| Steering Wheels | 50x180mm |
| Load Roller (Single) | 80×93 mm |
| Tandem | 80x70mm |
| Size of Forks | 160x50mm |
| Width Overall Forks | 550mm |
| Fork Length | 1150mm |
| Weight of Pallet Truck Nylon Wheels | 68 Kg |
| Weight of Pallet Truck PU Wheels | 70 Kg |
Product Details

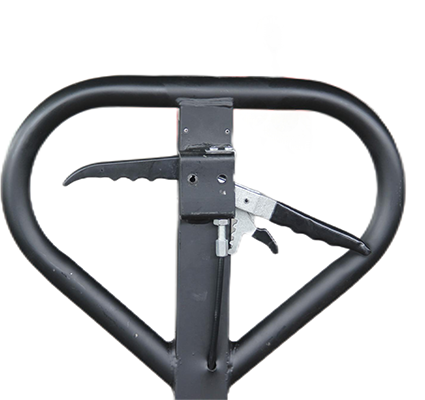

Ergonomically designed handle
Comfortable rubber grip allows optimized safety as well as comfort. Three-position operational handle control lever For lifting, transporting, and lowering purposes.

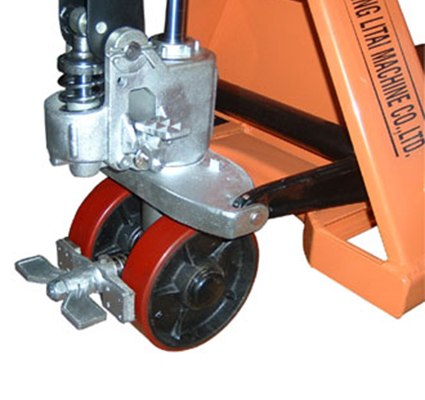

Hydraulic pump
Excellent galvanized whole casting hydraulic pump Robust and durable, with fine control of lowering speed and overload valve, low routine maintenance.

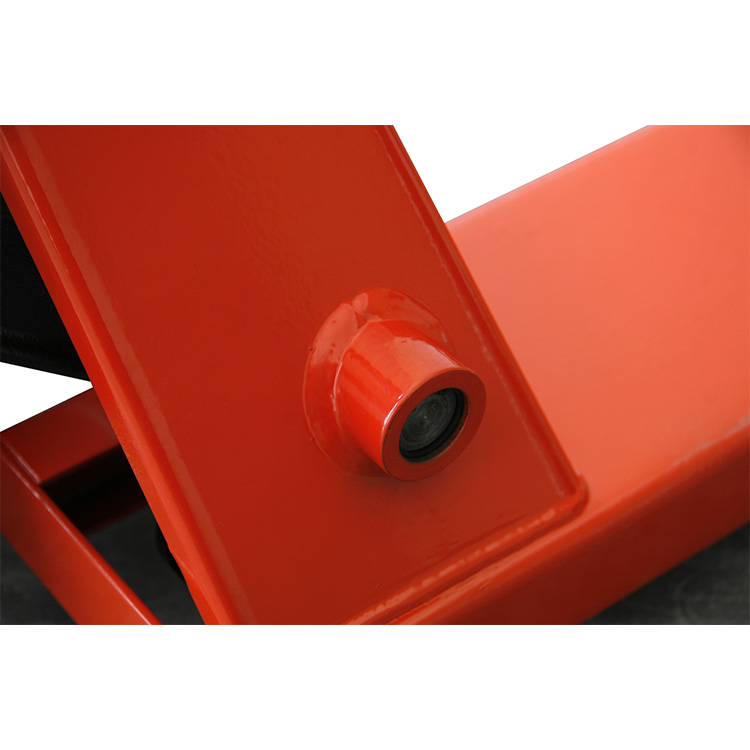

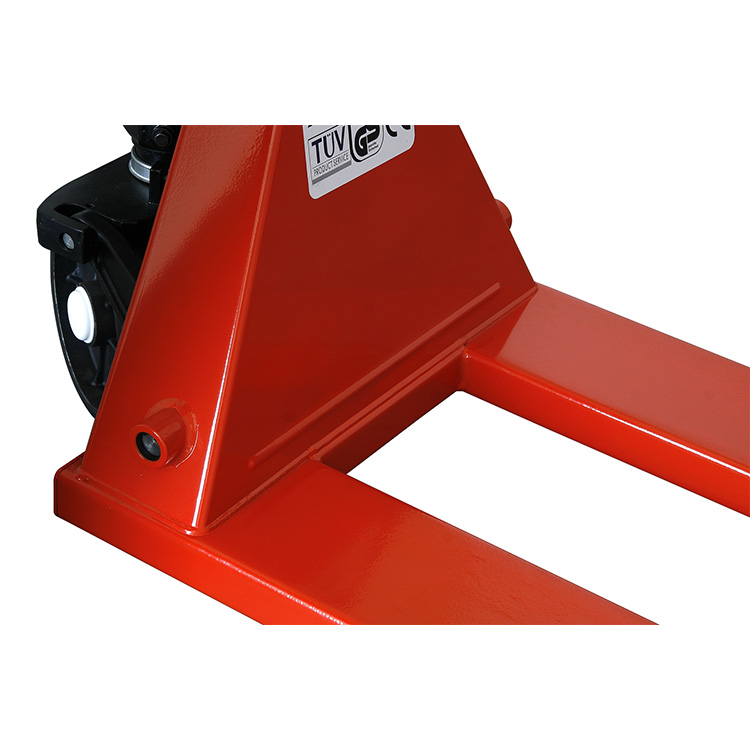

Strengthen the frame
The vehicle uses thickened steel, strong and durable, strong load.
Anti-overturn design
Effectively prevent the goods from overturning, more safe to use.
Media Gallery
FAQ
How do I properly operate a hand pallet truck?
To properly operate a hand pallet truck, first, ensure the control lever is in the neutral position. Approach the pallet squarely and insert the forks fully into the pallet openings. Move the lever to the "down" (or pump) position and pump the handle to lift the load off the floor. Once the load is clear, return the lever to neutral for maneuvering. To lower the load, pull and hold the lever in the "up" position. Always operate at a controllable speed and avoid sudden stops.What are the basic steps for lifting and lowering a pallet?
Lifting: With the forks inserted and the control lever in the "down" position, pump the handle until the pallet is raised clear of the floor. Lowering: With the pallet at the desired location and the truck stopped, pull and hold the control lever in the "up" position to lower the forks and load to the ground.How do I check and add hydraulic fluid to a hand pallet truck?
Lower the forks completely. Locate the hydraulic reservoir cap or screw, usually near the pump. Clean the area around the cap before opening it to prevent contamination. Remove the cap/screw and check the fluid level. Add the recommended hydraulic fluid using a funnel until it reaches the proper level (usually specified in the manual, often to the bottom of the filler opening). Replace the cap/screw securely.How do I bleed air from the hydraulic system of a hand pallet truck?
With the forks unloaded and fully lowered, repeatedly pump the handle through its full stroke (15-20 times is often recommended). This helps circulate the fluid and expel trapped air. Some models may have a bleed valve that can be opened briefly while pumping.Where can I find replacement parts for my hand pallet truck?
You can find replacement parts for your hand pallet truck through the manufacturer, authorized dealers, material handling equipment suppliers, or online retailers specializing in pallet jack parts. Having the make, model, and serial number of your truck will help in your search. For expert assistance, you may also consult SINOLIFT's professional advisors.
Optional Extras

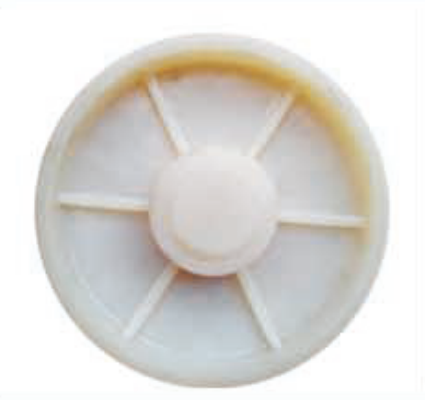

Nylon
Choose nylon pallet truck steer wheels for low rolling resistance, long life, and cost-effectiveness. Ideal for smooth surfaces and light to medium-duty applications.

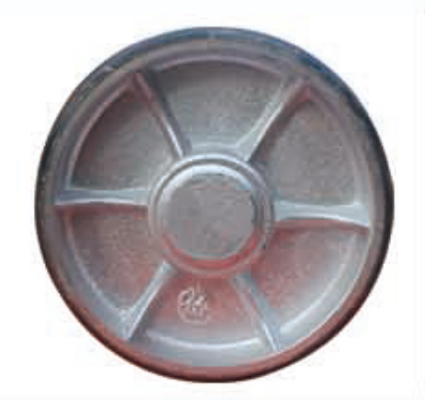

Polyurethane
Choose polyurethane treaded pallet truck steer wheels for quiet operation, excellent grip, and resistance to wear. Suitable for indoor use on smooth or slightly uneven surfaces.

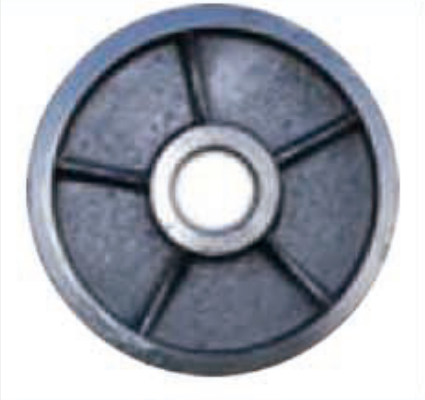

Steel
Choose steel steer wheels for durability in harsh working environments, such as metalworking areas or heavy-duty industrial settings. They are resistant to impact and can handle heavy loads.

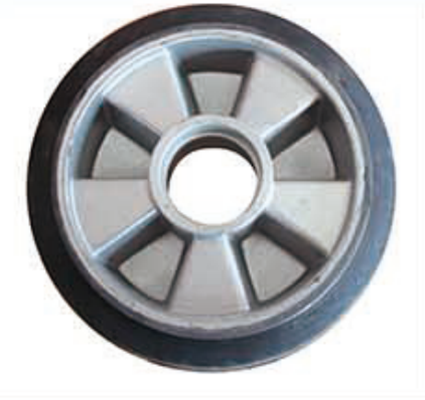

Rubber
Choose solid rubber treaded steer wheels for quiet operation and smooth rolling over uneven or rough surfaces. They provide excellent shock absorption and are ideal for environments where floor protection is a priority.

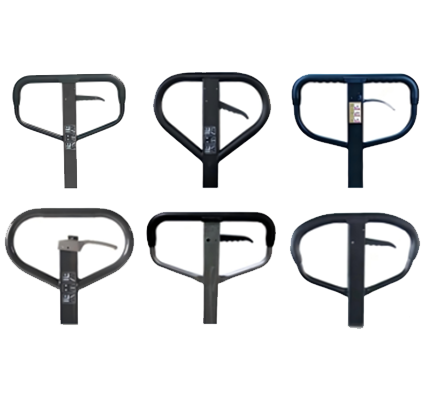

Tiller
Choose a tiller that suits your habits and preferences

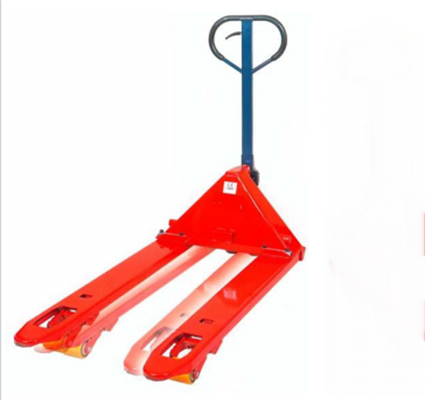

Adjustable Fork
The adjustable fork enables stepless width/length adjustment, allowing one pallet truck to handle all pallet types effortlessly. Eliminating the need for multiple equipment, it significantly improves mixed-pallet handling efficiency and precision – an intelligent solution for modern logistics.
Backrest
This option provides additional protection when transporting lightweight or slippery loads. The sturdy backrest design effectively prevents cargo from tipping or sliding backward, and straps can be used for added security when needed. The foldable feature ensures unimpeded operation when empty, making it an ideal accessory for enhanced stability and efficiency in material handling.
Foot Brake
The foot brake option is a rear-wheel-mounted braking device that provides instant locking through pedal operation. When the pallet truck comes to a stop, simply stepping on the pedal activates the brake, effectively preventing load shifting or unintended vehicle movement. This eliminates risks of cargo damage and enhances operator safety during material handling operations.
Hand Brake
The hand brake option provides secure stopping control for slopes and inclines, preventing unintended rolling to protect both operator and cargo. Its ergonomic lever enables quick, one-handed operation for reliable braking when needed. This safety-focused upgrade is ideal for warehouses, ramps, or uneven surfaces.
Nose Pallet Truck
This option is specifically engineered for dense stacking operations. Its unique set-back fork design enables precise single-pallet handling. The special clearance between fork tips and front rollers ensures individual pallet pickup, allowing tight inline positioning – perfect for high-density warehousing, production line logistics and other applications requiring exact stacking accuracy.
