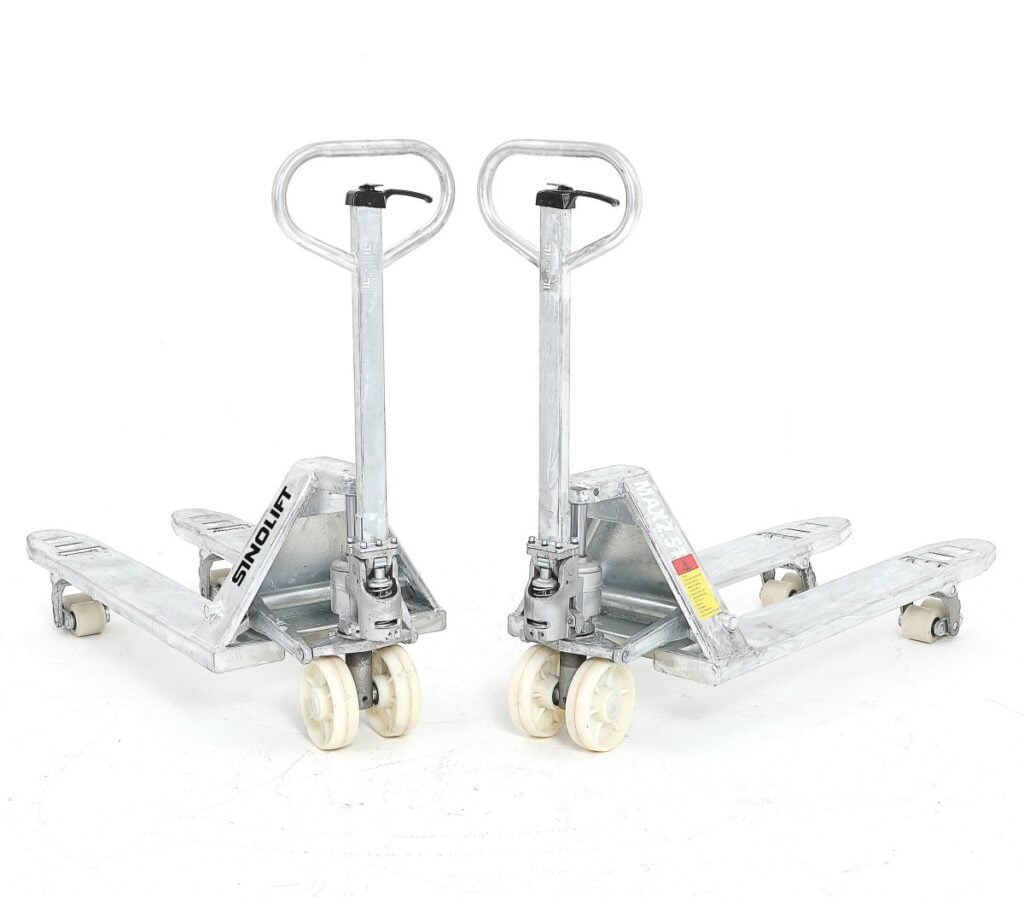

Sinolift China NAG heavy duty design galvanized and stainless steel hand pallet jack or truck

The galvanized and stainless steel hand pallet trucks are designed for excellent corrosion resistance, making them ideal for use in humid environments or areas where high hygiene standards are required.

  • Sturdy pallet truck featuring a tray head and reinforced side sills.
  • Hot-dip galvanized finish for enhanced long-term durability.
  • Equipped with stainless steel bearings, axles, screws, and bolts.



Contáctenos
Descargar

Características

Parámetros

Modelo NAG Series
Capacidad nominal kilogramo 5000/2000/2500/3000/5000
Ancho sobre horquillas mm 460/520/540/550/680/685
Volante mm 180×62 NYLON or PU
Longitud de la horquilla mm 810/980/1070/1150/1220
Rueda de carga mm Φ78*70（Tandem）
Altura máxima de la horquilla mm 200
Altura mínima de la horquilla mm 80
Longitud total mm 1500
Ancho de la horquilla mm 150
Width inside forks mm 160，220，240，250
Under Clearance mm 40
Strokes 50
Over Height mm 1200
Steer Angle 230deg
Drive Unit Length mm 370
Peso kilogramo 78

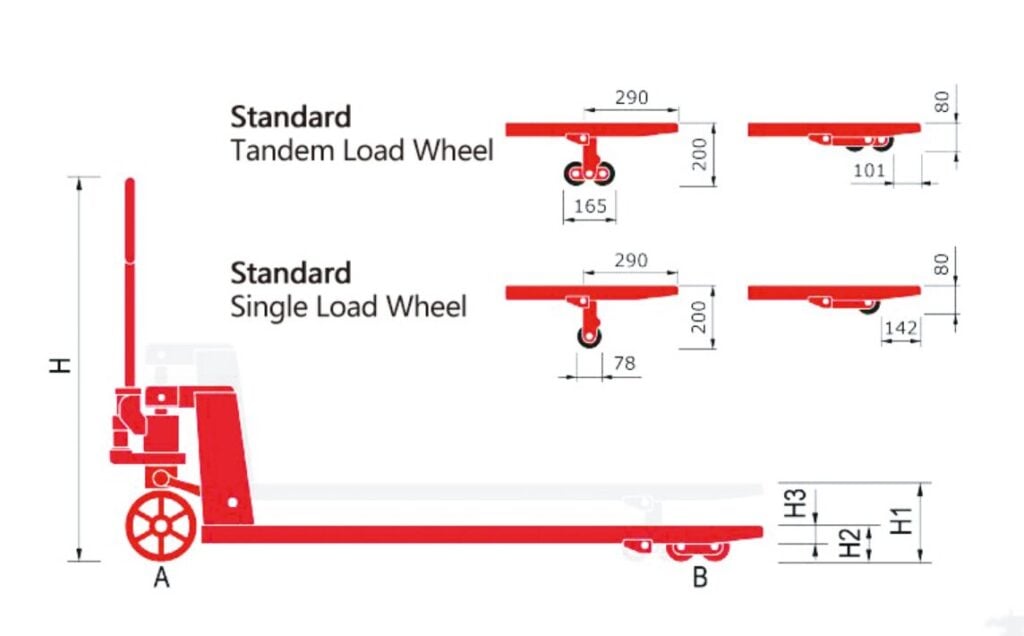

Dibujos estructurales

Dibujos estructurales

Detalles del producto

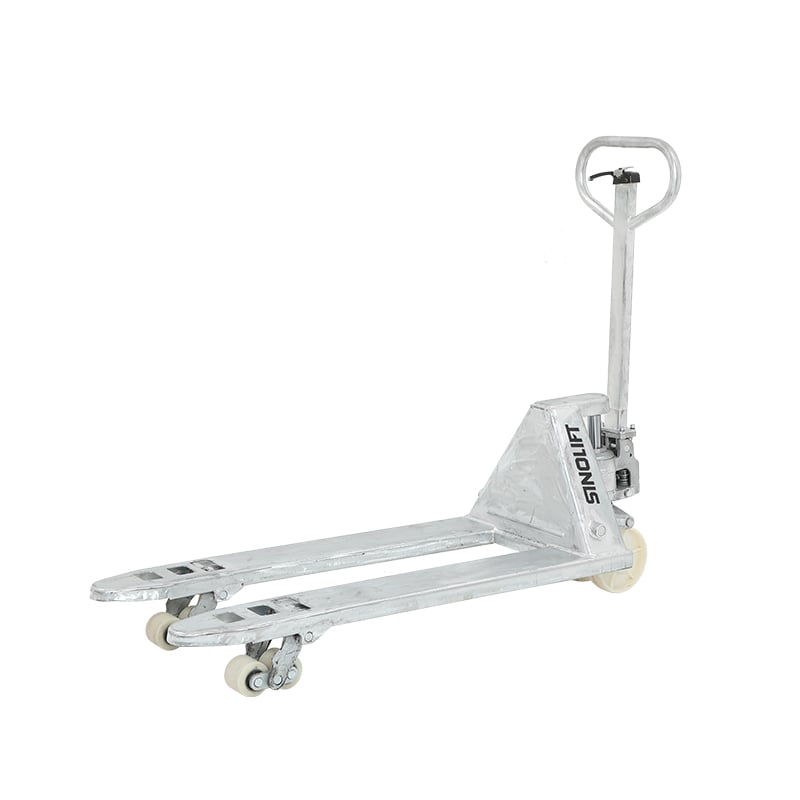

The entire truck is galvanised for corrosion resistance and durability.

Cold galvanizing is essentially a physical treatment because the coating is thin, generally within 5-30 um, so the corrosion resistance is relatively weak and the zinc layer is easy to fall off.

Wide range of application of galvanizing products

Thickened steel frame strong and durable

Galería de medios

Preguntas frecuentes

  • What is hot-dip galvanizing, and how does it protect steel from corrosion?

    Hot-dip galvanizing is a process where steel is immersed in molten zinc (at least 98% pure) to form a metallurgically bonded zinc-iron alloy layer and an outer pure zinc coating. This provides corrosion resistance by creating a protective barrier and sacrificial action, where the zinc layer corrodes instead of the steel. The coating is abrasion-resistant, covers all surfaces evenly, and ensures long-lasting, maintenance-free protection, even in harsh environments. It is ideal for structural and industrial applications requiring durability.

  • What are the basic steps for lifting and lowering a palletWhat’s the difference between hot galvanization and cold galvanization??

    Hot-dip galvanizing is a chemical process involving electrochemical reactions, forming a thick, durable zinc layer that covers both the interior and exterior of the material, offering superior corrosion protection. In contrast, cold galvanizing is a physical method that applies a zinc-rich paint layer. The coating is thin, generally within 5-30 µm, so the corrosion resistance is relatively weak, and the zinc layer is prone to falling off. In the heavy industrial sector, hot-dip galvanizing remains the preferred choice for heavy-duty applications due to its unmatched durability and long-term protection.

Extras opcionales

Nylon

Nylon
Choose nylon pallet truck steer wheels for low rolling resistance, long life, and cost-effectiveness. Ideal for smooth surfaces and light to medium-duty applications.

Poliuretano
Choose polyurethane treaded pallet truck steer wheels for quiet operation, excellent grip, and resistance to wear. Suitable for indoor use on smooth or slightly uneven surfaces.

Steel
Choose steel steer wheels for durability in harsh working environments, such as metalworking areas or heavy-duty industrial settings. They are resistant to impact and can handle heavy loads.

Goma
Choose solid rubber treaded steer wheels for quiet operation and smooth rolling over uneven or rough surfaces. They provide excellent shock absorption and are ideal for environments where floor protection is a priority.

Tiller

Choose a tiller that suits your habits and preferences

zinc or hot-galvanized type

The galvanized hand pallet truck is designed with a protective zinc coating, providing exceptional resistance to corrosion. It is an ideal choice for wet or humid environments, ensuring durability and reliable performance in challenging conditions.

Acero inoxidabletype

The stainless steel hand pallet truck is crafted from high-quality stainless steel, offering superior corrosion resistance and hygiene. Perfect for environments requiring strict cleanliness standards, such as food processing or pharmaceutical industries, it combines strength with easy maintenance.

equipped with scale

This handy tool combines a manual pallet truck with a built-in weighing scale, letting you move and weigh loads at the same time. Perfect for warehouses or logistics, it saves time and boosts efficiency by handling and measuring in one go.

Heavy duty type

For even heavier demands, this upgraded pallet truck offers a 5-tonne capacity and a reinforced 8mm steel frame, making it stronger and more robust than standard models. Designed for demanding environments like warehouses and logistics, it handles heavier loads with ease while ensuring durability and safety. Perfect for industrial-grade challenges!

load bracket

It’s an essential accessory designed to secure and stabilize loads during transport. It ensures safe and efficient handling of goods, making it ideal for moving irregular or unstable items with ease.
