Effortless Media Roll Handling: Safe Transport Solutions for Tight Spaces

In the world of wide-format printing, textile manufacturing, and flexible packaging, the “roll” is the lifeblood of production. Whether it is a 5-meter-long roll of vinyl, a heavy cylinder of fabric, or industrial-grade film, these materials are essential. However, their physical dimensions present a unique logistical nightmare. They are awkward, heavy, and notoriously difficult to maneuver through narrow aisles and around expensive machinery.

For many facility managers, the daily movement of these rolls is a source of constant anxiety. A single slip can lead to worker injury, damaged inventory, or hours of downtime. Traditional methods—like manual carrying or using standard pallet jacks—often fall short when dealing with cylindrical loads that want to roll away or tip over.

This article explores the practical challenges of handling extra-long media rolls and introduces the specialized equipment designed to make these tasks safer and more efficient.

The Realities of Handling Extra-Long Media Rolls

If you work in a production environment, you know that a “standard” workspace is a luxury. Most print shops and textile mills are crowded with printers, looms, and cutting tables. In these tight spaces, moving a roll that spans several meters is a high-stakes balancing act.

The Risk of Physical Injury

Manual lifting is the most common cause of workplace back injuries. A media roll might not look like much, but when you factor in its length and density, the weight is often deceptive. Expecting one or two employees to lift and position these rolls onto a machine spindle is a recipe for long-term health issues and immediate accidents. In an industrial setting, ergonomics is not just a buzzword; it is a critical component of operational sustainability.

Material Damage and Waste

Media rolls are often sensitive to pressure and impact. If a roll of high-end photographic paper or specialized film is dropped or bumped against a metal frame, the edges can dent or the surface can scratch. In many cases, a dented edge means the roll will no longer feed into the printer correctly, rendering the entire roll—often worth hundreds or thousands of dollars—useless. Precision handling ensures that the material arrives at the machine in the same condition it left the warehouse.

The “Narrow Aisle” Bottleneck

Standard forklifts are often too bulky for the narrow aisles found in specialized workshops. They require a significant turning radius that simply doesn’t exist between rows of digital printers. When equipment is too large for the space, operators are forced to leave materials far from the machine, necessitating even more manual handling to bridge the gap. This inefficiency adds up over weeks and months, costing the business valuable production time.

What Exactly is a Media Roll Lifter?

A media roll lifter is a specialized piece of material handling equipment engineered specifically to transport and lift cylindrical loads. Unlike a standard pallet jack, which has flat forks designed for wooden pallets, a media roll lifter features a specialized “cradle” or V-shaped tray.

The primary goal of this tool is to secure the roll so that it cannot shift or roll off during transport. By lowering the center of gravity and providing a stable platform, the lifter allows a single operator to do the work that previously required three people.

These lifters are typically built with a slim profile to ensure they can navigate through tight doorways and between machines. They are the “missing link” in many production lines, providing the precision needed to align a heavy roll perfectly with a machine’s intake spindle. Whether manual or electric, the core utility remains the same: transforming a high-risk manual task into a controlled, mechanical process.

Best Practices: How to Operate a Media Roll Lifter

While these machines are designed for ease of use, following a standardized operational procedure ensures the highest level of safety and equipment longevity. Here is a practical guide on how to handle rolls effectively in your daily workflow.

1. Pre-Operation Inspection

Before starting your shift, do a quick visual check of the unit. Ensure the hydraulic fluid is not leaking (for manual models) and the battery has sufficient charge (for electric models). Check the PU wheels for any debris or flat spots that might hinder smooth movement on the workshop floor. A well-maintained tool is a safe tool.

2. Loading the Roll

Position the lifter directly in front of the roll. If the roll is on the floor, use the tilting stop device—a common feature on professional lifters—to help guide the roll onto the cradle. Ensure the roll is centered. If the roll is 5 meters long, centering it is crucial to maintain balance and prevent the lifter from tipping during sharp turns.

3. Lifting and Transporting

Raise the load just high enough to clear the floor—usually 5 to 10 centimeters is sufficient. Keeping the load low during transport is a fundamental safety rule; it keeps the center of gravity stable and provides the operator with a better line of sight. Use the ergonomic handles to push the lifter. Because most lifters use swivel casters, you can “pivot” the machine in place, which is vital when you need to turn 90 degrees in a narrow corridor.

4. Positioning at the Machine

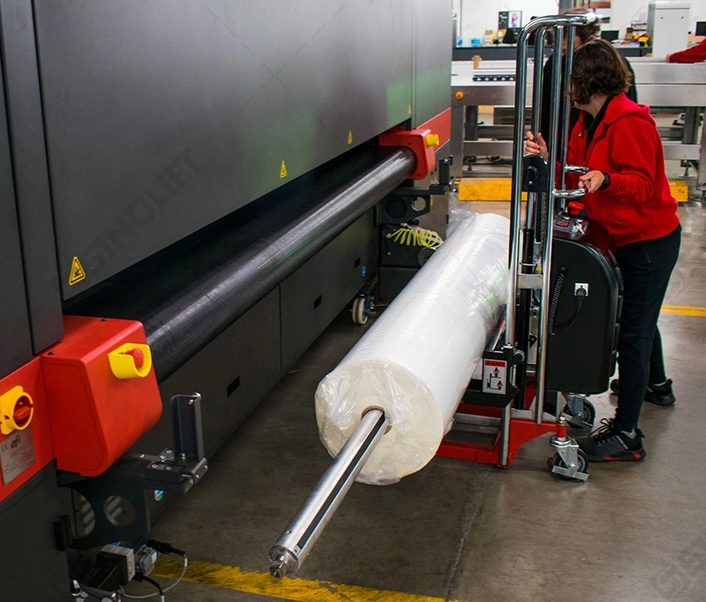

Once you reach the printer or textile machine, raise the roll to the exact height of the spindle. The controlled lifting mechanism (whether via foot pump or electric button) allows for minute adjustments. Once the roll is aligned, gently slide it onto the machine’s shaft. Many lifters are designed to fit partially under the machine frame, allowing for a “gapless” transfer.

5. Unloading and Parking

After the roll is transferred, lower the lifting cradle completely. Never leave a lifter with the forks or tray in a raised position when not in use, as this creates a tripping hazard and puts unnecessary strain on the hydraulic system. Store the unit in a designated area where it won’t obstruct traffic.

Professional Solutions for Your Workspace

To address the practical challenges mentioned above, SINOLIFT has developed two primary solutions tailored to different operational needs: the manual PFM series and the electric EFM series. Both are designed with the specific goal of making 5-meter roll transport a safe, one-person job.



The PFM Manual Roll Lifter: The Reliable Workhorse

El SINOLIFT PFM Manual Roll Lifter is an ideal entry-point for shops that need a robust, low-maintenance solution. Built specifically for the printing, textile, and packaging industries, the PFM focuses on simplicity and durability. It is engineered as a compact and ergonomic solution that empowers a single operator to load, transport, and position heavy rolls with minimal effort.

• Manual Precision:It utilizes a foot-pump hydraulic system. This gives the operator complete manual control over the lifting speed, which is helpful when performing delicate alignments with machine spindles.
• Built for Longevity:The mast is constructed from high-quality steel with a seamless chrome plating. This ensures that even after years of use in humid or dusty environments, the lifting action remains smooth and resistant to wear.
• Safe Handling:The grooved cradle tray is a standout feature. It is specifically shaped to “nest” cylindrical materials up to 5 meters long, ensuring they stay put even if you have to move over slightly uneven floors.
• Maneuverability:Equipped with polyurethane (PU) wheels and swivel casters, the PFM can be turned with minimal effort, making it a favorite for small-to-medium-sized printing studios where floor space is at a premium.





The EFM Electric Roll Lifter: Power and Efficiency

For high-volume environments where rolls are moved dozens of times a day, the SINOLIFT EFM Electric Roll Lifter is the preferred choice. It takes the ergonomic benefits of the PFM and adds an electric lifting system to eliminate physical strain during the lifting phase.

• Effortless Lifting:Instead of a foot pump, the EFM features simple up/down buttons on an intelligent operation platform. This significantly reduces operator fatigue, especially when handling rolls at the upper limit of its 300 kg weight capacity.
• Smart Power Management:It is powered by a high-quality Tianneng lead-acid battery and a responsive hydraulic pump. The integrated control panel includes a key start/stop and a battery level indicator, ensuring the machine is always ready for the task at hand.
• Increased Productivity:Because the lifting is motorized, the time required to load and unload machines is significantly reduced. This allows for faster changeovers between different media types, keeping your production lines running with minimal downtime.
• Robust Construction:The EFM features a strong chassis and reinforced components designed for demanding industrial environments. It combines electric efficiency with a secure tilting stop device for maximum material protection.

Choosing the Right Path for Your Facility

Deciding between a manual and an electric lifter usually comes down to frequency of use and the physical demands of your specific workflow. If your team moves a few rolls a day, the PFM offers a cost-effective, “always ready” solution that requires no charging and very little maintenance. It is a perfect replacement for risky manual handling in lower-volume settings.

However, if your production line is running multiple shifts and involves frequent movements of heavy, 5-meter rolls, the EFM provides the electric boost necessary to maintain high throughput while protecting your workers from repetitive strain.

Investing in a dedicated media roll lifter is not just about buying a piece of machinery; it is about optimizing your entire production workflow. By removing the struggle of manual handling, you create a safer, more professional environment where your staff can focus on what they do best: producing high-quality goods. For more information on these solutions, visit the product pages for the PFM Manual Roll Lifter and the EFM Electric Roll Lifter.
